Modicon ABE7 Parts

Schneider Electric

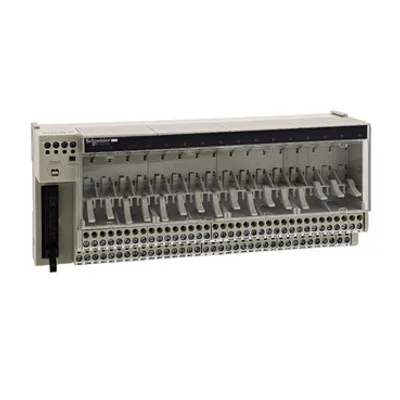

ABE7P16T230

Sub-base for plug-in relay ABE7 - 16 channels - relay 10 mm

Schneider Electric

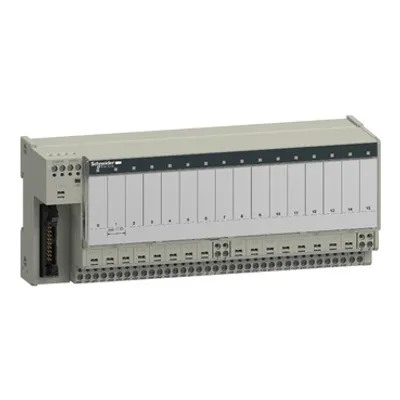

ABE7P16T214

Sub-base for plug-in relay ABE7 - 16 channels - fuses - relay 10 mm

Schneider Electric

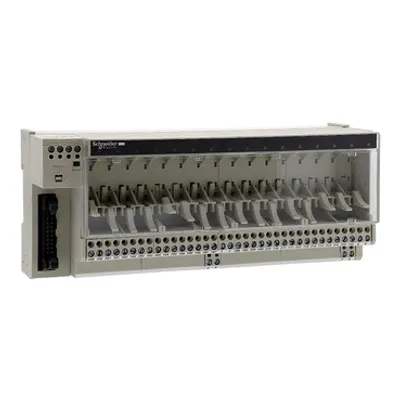

ABE7P16T210

Sub-base for plug-in relay ABE7 - 16 channels - relay 10 mm

Schneider Electric

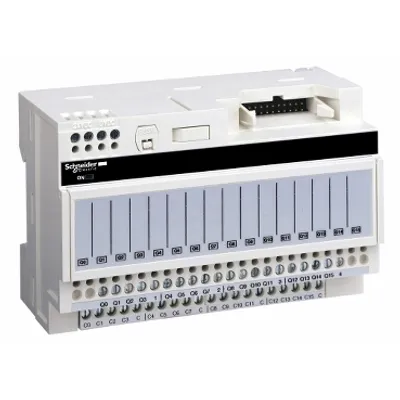

ABE7P16T111

Sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm

Schneider Electric

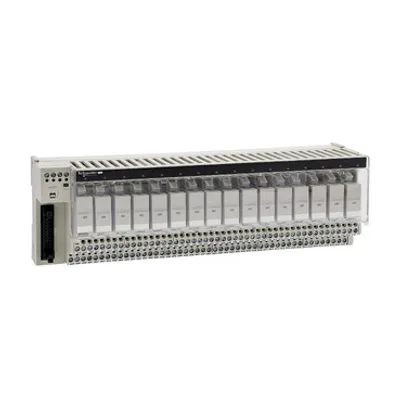

ABE7R16T370

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm

Schneider Electric

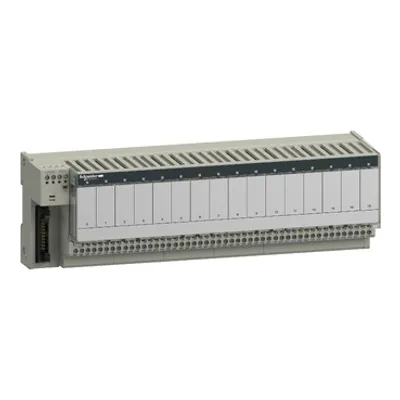

ABE7R16T330

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm

Schneider Electric

ABE7R16T230

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm

Schneider Electric

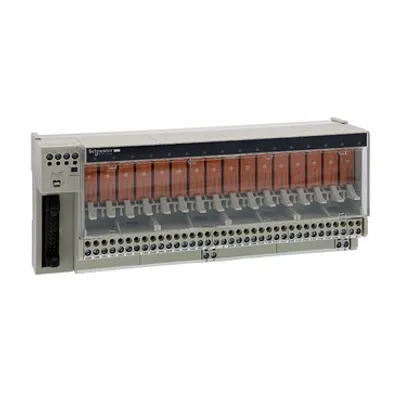

ABE7R16T212

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm

Schneider Electric

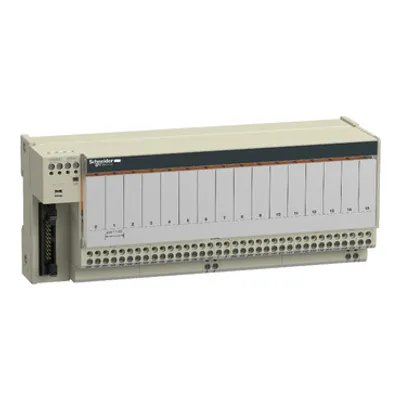

ABE7R16T210

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm

Schneider Electric

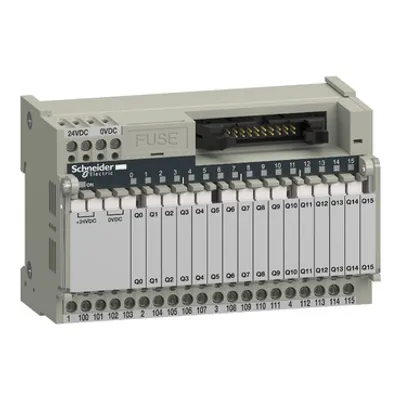

ABE7R16T111

Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm

Schneider Electric

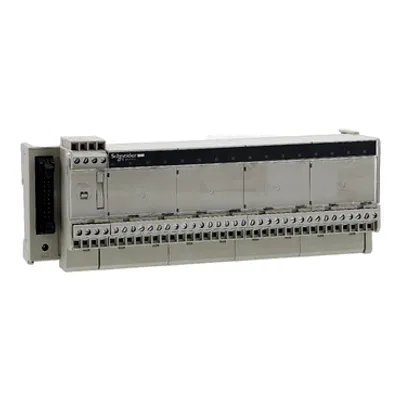

ABE7R16S212

Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm

Schneider Electric

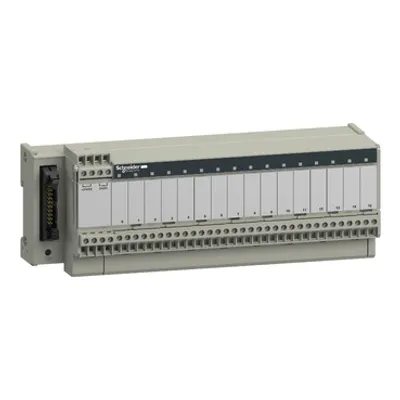

ABE7R16S210

Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm

Schneider Electric

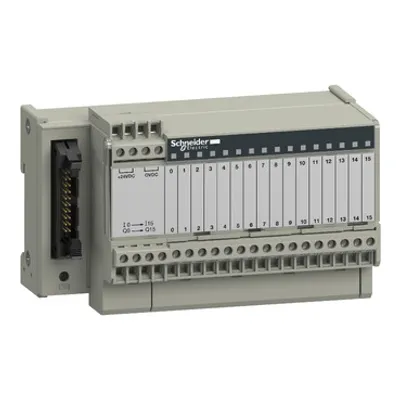

ABE7R16S111

Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

Schneider Electric

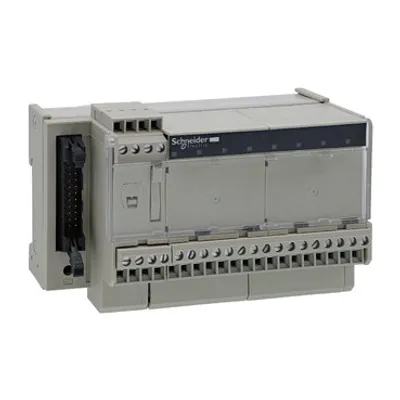

ABE7R08S210

Sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm

Schneider Electric

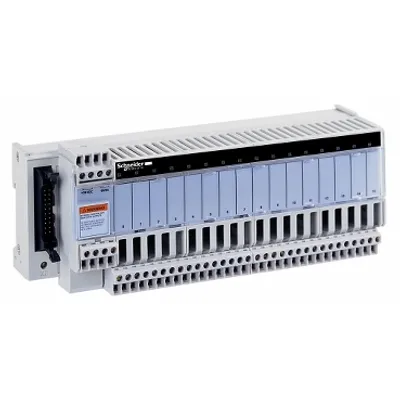

ABE7R08S111

Sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 5 mm

Schneider Electric

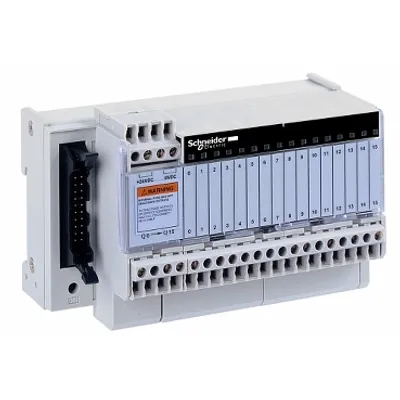

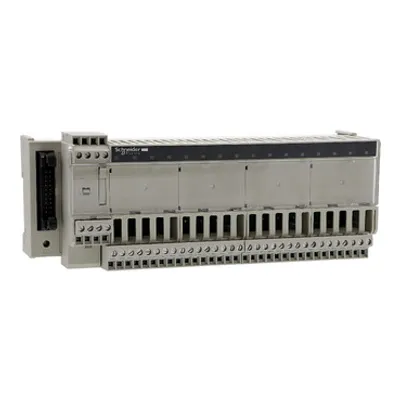

ABE7S16S2B0

Sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A

Schneider Electric

ABE7S16S1B2

Sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A

Schneider Electric

ABE7P16F310

Sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

Schneider Electric

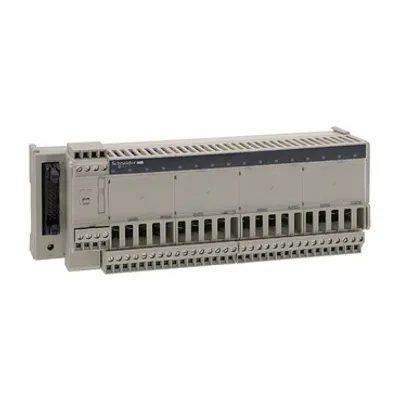

ABE7S16E2M0

Sub-base - soldered solid state output relay ABE7 - 16 inputs - 230 V AC

Schneider Electric

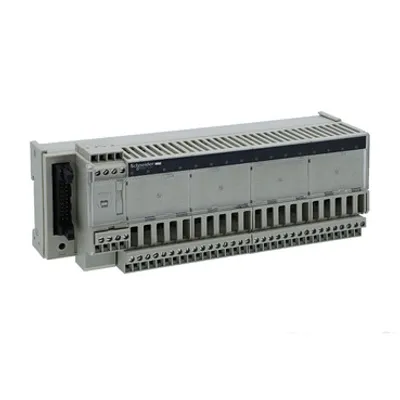

ABE7S16E2B1

Sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC

Schneider Electric

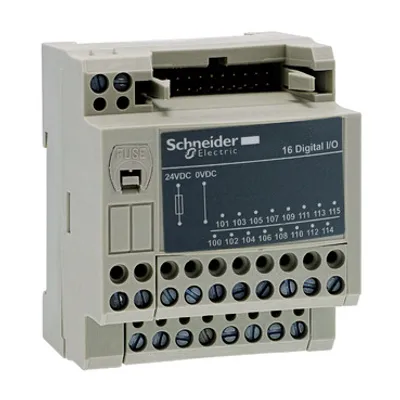

ABE7H20E000

Passive connection sub-base ABE7 - Micro/Premium

Schneider Electric

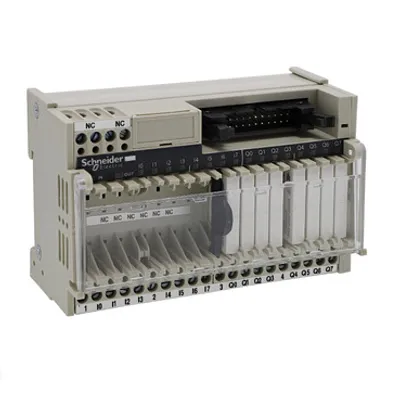

ABE7R16M111

Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm

Schneider Electric

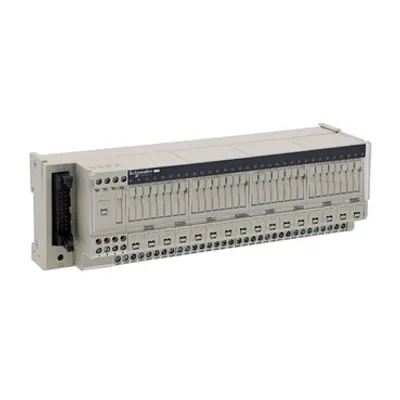

ABE7H16S43

Passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator

Schneider Electric

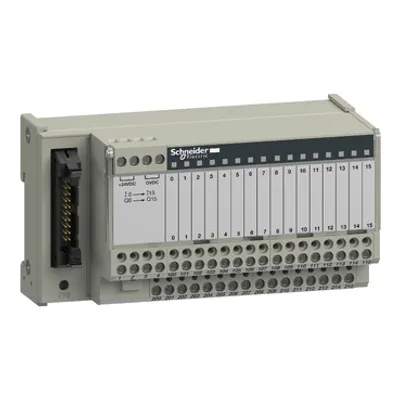

ABE7H16S21

Passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator

Compare Modicon ABE7

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of channels	Maximum current per output common	[Uimp] rated impulse withstand voltage	Net weight	Product certifications
ABE7P16T230	16	16 A	2.5 kV	0.655 kg	CSA, DNV, GL, UL, EAC
ABE7P16T214	16	16 A	2.5 kV	0.675 kg	CSA, GL, DNV, UL, EAC
ABE7P16T210	16	16 A	2.5 kV	0.615 kg	GL, CSA, UL, DNV, EAC
ABE7P16T111	16	16 A	2.5 kV	0.55 kg	CSA, DNV, GL, UL, EAC
ABE7R16T370	16	—	2.5 kV	1.3 kg	DNV, CSA, GL, EAC
ABE7R16T330	16	—	2.5 kV	1.3 kg	UL, CSA, DNV, GL, EAC
ABE7R16T230	16	—	2.5 kV	0.775 kg	UL, GL, DNV, CSA, EAC
ABE7R16T212	16	—	2.5 kV	0.73 kg	CSA, UL, DNV, GL, EAC
ABE7R16T210	16	—	2.5 kV	0.735 kg	GL, CSA, UL, DNV, EAC
ABE7R16T111	16	5 A screw type terminals	2.5 kV	0.6 kg	CSA, UL, DNV, GL, EAC
ABE7R16S212	16	10 A	2.5 kV conforming to IEC 60947-1	0.4 kg	UL, CSA, GL, DNV, EAC
ABE7R16S210	16	10 A	2.5 kV conforming to IEC 60947-1	0.405 kg	GL, CSA, DNV, UL, EAC
ABE7R16S111	16	12 A	2.5 kV conforming to IEC 60947-1	0.405 kg	DNV, UL, CSA, GL, EAC
ABE7R08S210	8	10 A	2.5 kV conforming to IEC 60947-1	0.448 kg	UL, DNV, CSA, GL, EAC
ABE7R08S111	8	12 A	2.5 kV conforming to IEC 60947-1	0.252 kg	DNV, UL, GL, CSA, EAC
ABE7S16S2B0	16	8 A	—	0.405 kg	UL, GL, CSA, DNV, EAC
ABE7S16S1B2	16	9 A	—	0.4 kg	GL, UL, DNV, CSA, EAC
ABE7P16F310	16	—	2.5 kV	0.85 kg	GL, DNV, CSA, UL, EAC
ABE7S16E2M0	16	—	2.5 kV conforming to IEC 60947-1	0.407 kg	DNV, GL, CSA, EAC
ABE7S16E2B1	16	—	2.5 kV conforming to IEC 60947-1	0.37 kg	UL, DNV, CSA, GL, EAC
ABE7H20E000	—	—	—	—	EAC
ABE7R16M111	16	5 A screw type terminals	2.5 kV	0.6 kg	UL, DNV, CSA, GL, EAC
ABE7H16S43	16	1.8 A	—	0.64 kg	DNV, CSA, UL, GL, EAC
ABE7H16S21	16	1.8 A	—	0.375 kg	GL, CSA, UL, DNV, EAC

Common to all listed parts

Range of product

Modicon ABE7
