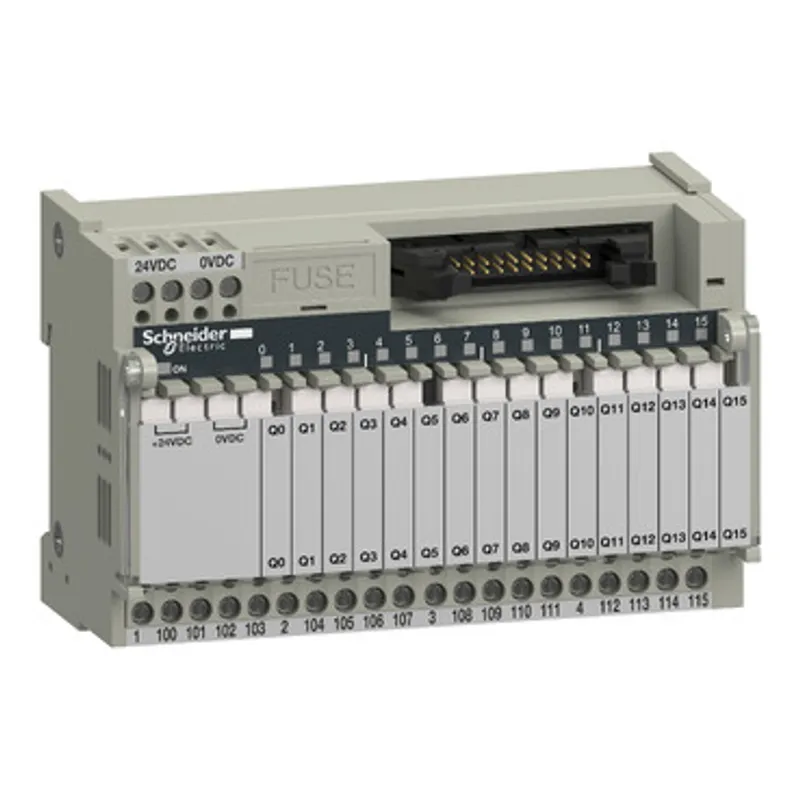

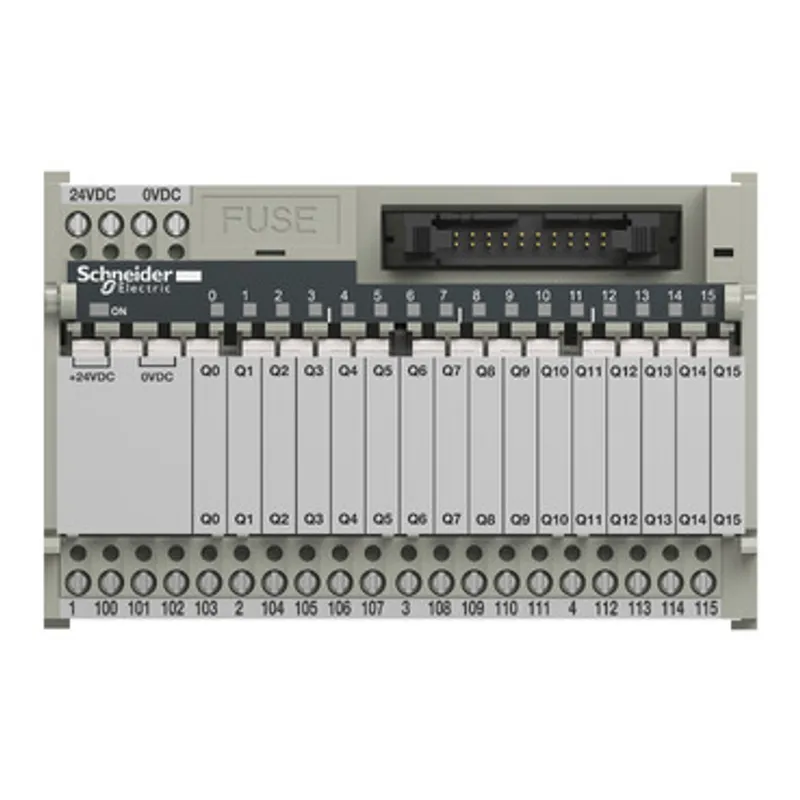

ABE7R16M111Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
Schneider Electric ABE7R16T111
Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
- MPN
- ABE7R16T111
- EAN
- 3389110250800
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7R16T111?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.6kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S11 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base with plug-in electromechanical relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 1 x 0.14...1 x 4 mm² (AWG 26...AWG 12) solid, Screw type terminals, 2 x 0.14...2 x 0.75 mm² (AWG 26...AWG 18) flexible with cable end, Screw type terminals, 2 x 0.14...2 x 1.5 mm² (AWG 26...AWG 16) solid |
| supply voltage type | DC |
| Product compatibility | ABR7S11 |
| Contacts type and composition | 1 NO |
| Status LED | 1 LED power ON, 1 LED per channel channel status |
| Polarity distribution | Common distribution group of 4 |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Mounting mode | By clips (35 mm DIN rail), By screws (surface mount with kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 5 A screw type terminals |
| [Ui] rated insulation voltage | 2000 V between terminals/mounting rails, 300 V between coil circuit/contact circuits conforming to IEC 60947-1 |
| Maximum current per module | 12 A |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.6 kg |
| Product certifications | CSA, UL, DNV, GL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn conforming to IEC 60068-2-6 (f = 10…150 Hz) |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 13.7 cm × 8.2 cm × 7 cm (L × W × H), 312 g |
| Package 2 | 24 S03, 40 cm × 30 cm × 30 cm (L × W × H), 7.902 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABE7R16T111: frequently asked questions
When can ABE7R16T111 be shipped?
ABE7R16T111 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7R16T111 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7R16T111 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7R16T111, subject to availability and destination.
