ABE7H20E200Passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m
Schneider Electric ABE7P16T111

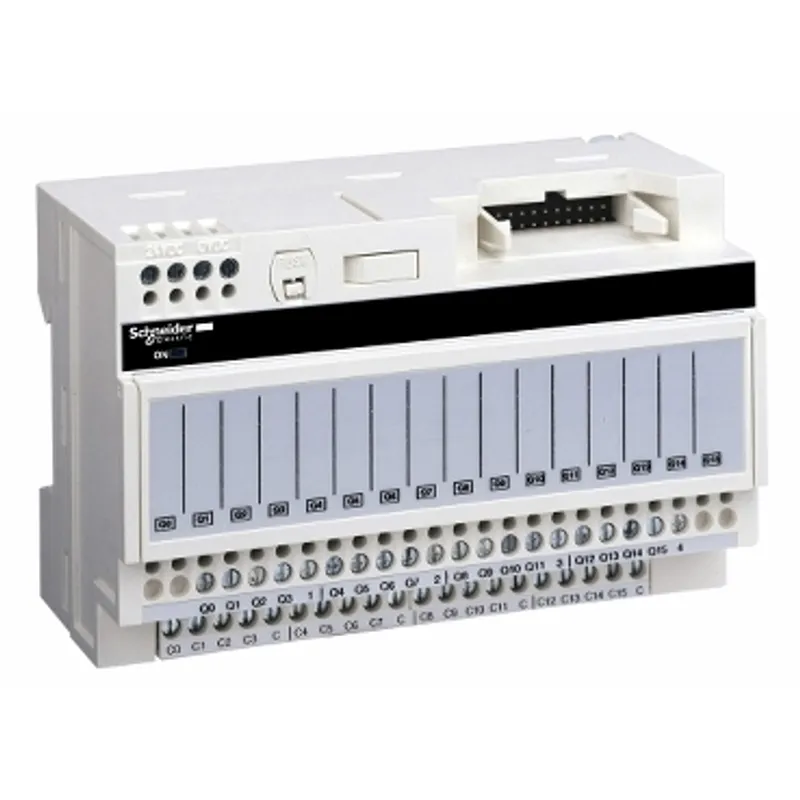

Sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm
- MPN
- ABE7P16T111
- EAN
- 3389110250824
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7P16T111?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with plug-in relays (relay size 5mm) for 16 channels, an integral NO contact, with 2 terminals per channel." "Its control circuit voltage is 24VDC." "It makes use of the sub-base functions to connect the channel without the need to adapt the channel using a relay." "It is furnished with screw terminal for electrical connection, with a 20-way HE10 connector, without relays." "It can accept both electromechanical and solid state relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a plug-in relay sub-base with IP20 degree of protection. It weighs 0.550kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with ABE7 sub-bases and ABR7 and ABS7 relays." "It is delivered in 1 package (PCE type). Plug-in relays (size 5mm) are to order separately." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Product compatibility | ABR7S11, ABS7SC1B |
| Status LED | 1 LED per channel (green) channel status, 1 LED (green) power ON |
| Polarity distribution | Polarity distribution contact common per group of 4 channels |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 2000 V between terminals/mounting rails, 300 V between coil circuit/contact circuits conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.55 kg |
| Product certifications | CSA, DNV, GL, UL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 13.6 cm × 8.2 cm × 7.0 cm (L × W × H), 234.0 g |
| Package 2 | 24 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 6.092 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABE7P16T111: frequently asked questions
When can ABE7P16T111 be shipped?
ABE7P16T111 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7P16T111 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7P16T111 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7P16T111, subject to availability and destination.
