Schneider Electric ABE7S16E2M0

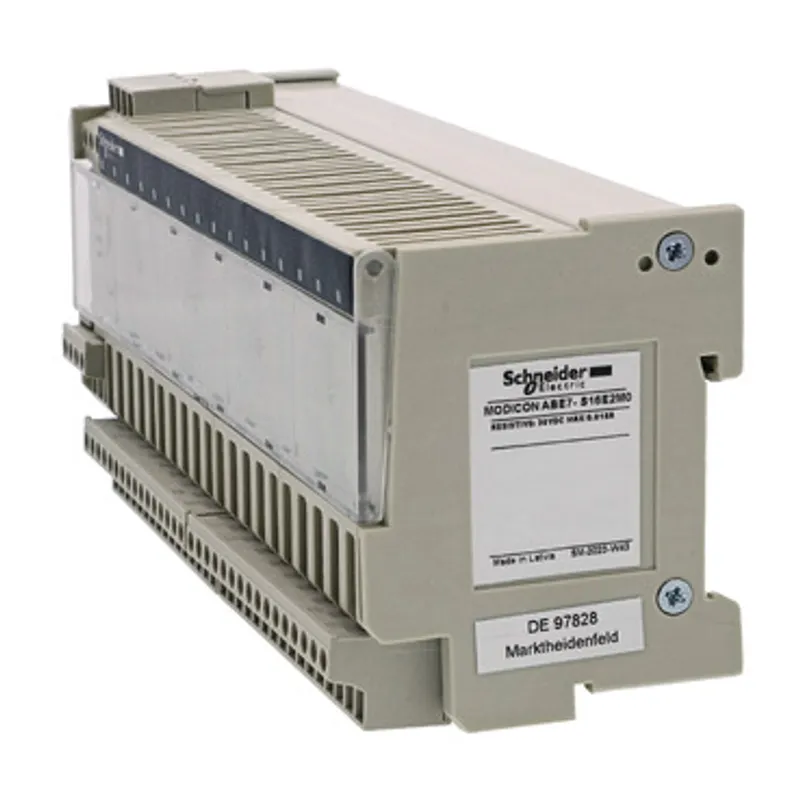

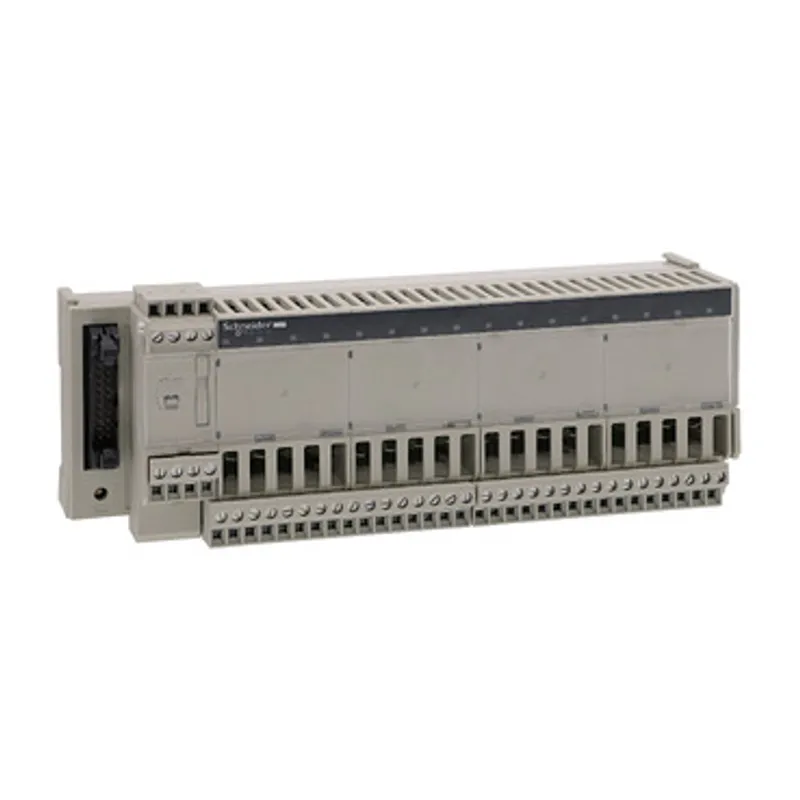

Sub-base - soldered solid state output relay ABE7 - 16 inputs - 230 V AC
- MPN
- ABE7S16E2M0
- EAN
- 3389110546286
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7S16E2M0?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel." "Its control circuit voltage is 230VAC." "It provides a digital input control function." "It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a relay output sub-base with IP20 degree of protection. It weighs 0.407kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, GL and EAC." "It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Solid state input relay sub-base |
| [Us] rated supply voltage | 230/240 V AC 50/60 Hz (sensor end), 24 V DC (PLC end) |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (AWG 24...AWG 14) solid |
| Terminal block type | Removable |
| Supply voltage limits | 19…30 V DC (PLC end) conforming to IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end, Adjustable by external fuse fast blow sensor end |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Current per channel | 0.008 A |
| Current state 1 guaranteed | >= 4.5 mA (sensor end) |
| Voltage state 1 guaranteed | >= 164 V for sensor end |
| Maximum switching current | 15 mA (PLC end) |
| Minimum switching current | 1 mA for PLC end |
| Response time | <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0 |
| Switching frequency | <= 25 Hz duty cycle: 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.407 kg |
| Dielectric strength | 2000 V at 50/60 Hz conforming to IEC 60947-1 |
| Product certifications | DNV, GL, CSA, EAC |
| Standards | IEC 61131-2 Type 1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 21.100 cm × 8.300 cm × 6.900 cm (L × W × H), 466.000 g |
| Package 2 | 18 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.941 kg |
