Proportional directional valves Parts

Bosch Rexroth

R901491916

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16V1-150L-4X/MPT/24ND6T

Bosch Rexroth

R901520743

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16V1-150L-4X/MPT/24ED6T

Bosch Rexroth

R901472450

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16Q3-200M-4X/MXY/24ED6T

Bosch Rexroth

R901537990

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16E250LJ-4X/MXY/24ND6T

Bosch Rexroth

R901488644

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16E250LJ-4X/MXT/24ND6T

Bosch Rexroth

R901573878

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16E1-250LJ-4X/MXT/24ND6T

Bosch Rexroth

R901546411

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10W6-100LJ-4X/MXY/24TD6T

Bosch Rexroth

R901515497

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V60L-4X/MXY/24TD6T

Bosch Rexroth

R901548637

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100P-4X/VXY/24ED6T

Bosch Rexroth

R901578108

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100P-4X/MXY/24TD6T

Bosch Rexroth

R901573219

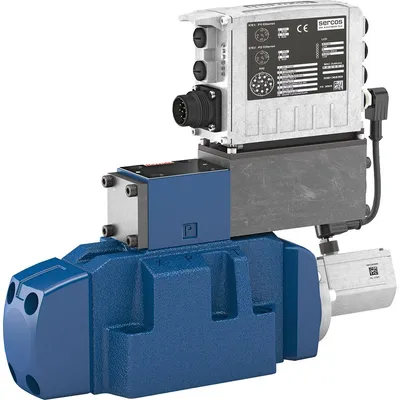

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100P-4X/MPY/24TD6T

Bosch Rexroth

R901489761

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100L-4X/MXY/24SD6T

Bosch Rexroth

R901491907

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100L-4X/MXY/24ND6T

Bosch Rexroth

R901537962

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100L-4X/MXT/24ND6T

Bosch Rexroth

R901537529

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100L-4X/MPT/24ND6T

Bosch Rexroth

R901495582

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V100L-4X/MPT/24ED6T

Bosch Rexroth

R901486353

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V1-60L-4X/MPT/24ND6T

Bosch Rexroth

R901543463

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V1-100L-4X/MXY/24ND6T

Bosch Rexroth

R901491897

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V1-100L-4X/MPT/24ND6T

Bosch Rexroth

R901567531

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10E1-60LJ-4X/MPT/24TD6T

Bosch Rexroth

R901575120

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10E1-100LJ-4X/MPTWL/24TD6T

Bosch Rexroth

R901552606

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10E1-100LJ-4X/MPT/24TD6T

Bosch Rexroth

R901048598

PROPORTIONAL DIRECTIONAL VALVE 4WRKE35W8-1000L-3X/6EG24TK31/A1D3M

Bosch Rexroth

R901176133

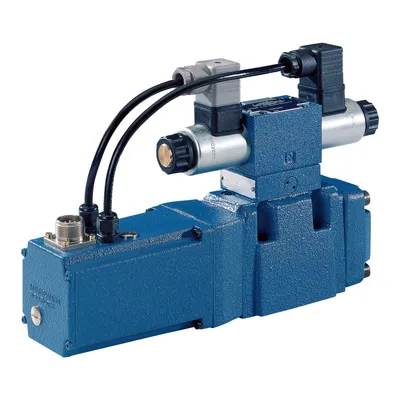

PROPORTIONAL DIRECTIONAL VALVE 4WRKE35W8-1000L-3X/6EG24K31/F1D3M

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection diagram	Max. flow [l/min]	Spool symbol	Nominal flow [l/min]	Weight [kg]
R901491916	ISO 4401-07-07-0-05	800.0	Symbol V1	250.0	11.9
R901520743	ISO 4401-07-07-0-05	800.0	Symbol V1	250.0	11.58
R901472450	ISO 4401-07-07-0-05	800.0	Symbol Q3	250.0	12.66
R901537990	ISO 4401-07-07-0-05	800.0	Symbol E	250.0	12.6
R901488644	ISO 4401-07-07-0-05	800.0	Symbol E	250.0	12.6
R901573878	ISO 4401-07-07-0-05	800.0	Symbol E1	250.0	11.9
R901546411	ISO 4401-05-05-0-05	300.0	Symbol W6	100.0	9.8
R901515497	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.44
R901548637	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.1
R901578108	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.86
R901573219	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.08
R901489761	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.08
R901491907	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9
R901537962	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.08
R901537529	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.88
R901495582	ISO 4401-05-05-0-05	300.0	Symbol V	100.0	9.08
R901486353	ISO 4401-05-05-0-05	300.0	Symbol V1	100.0	9.44
R901543463	ISO 4401-05-05-0-05	300.0	Symbol V1	100.0	9.08
R901491897	ISO 4401-05-05-0-05	300.0	Symbol V1	100.0	9.12
R901567531	ISO 4401-05-05-0-05	300.0	Symbol E1	100.0	9.1
R901575120	ISO 4401-05-05-0-05	300.0	Symbol E1	100.0	9.08
R901552606	ISO 4401-05-05-0-05	300.0	Symbol E1	100.0	9.08
R901048598	ISO 4401-10-09-0-05	3000.0	Symbol W8	1000.0	69.5
R901176133	ISO 4401-10-09-0-05	3000.0	Symbol W8	1000.0	69.6

Common to all listed parts

Type of connection	Subplate mounting
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
