IPC service products (discontinued) Parts

PROFINET RT, device interface, Ethernet (2 x RJ45 switched)

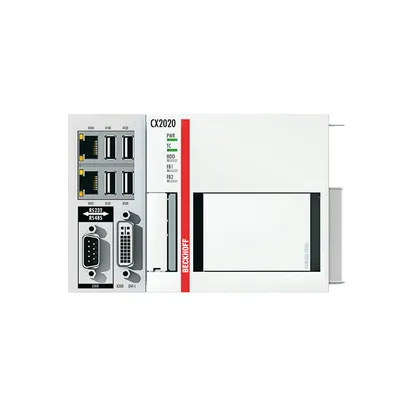

PROFINET RT, controller interface, Ethernet (2 x RJ45 switch)

CANopen slave interface, D-sub plug, 9-pin

CANopen master interface, D-sub plug, 9-pin

PROFIBUS slave interface, D-sub socket, 9-pin

PROFIBUS master interface, D-sub socket, 9-pin

EtherCAT slave interface, EtherCAT IN and OUT (2 x RJ45)

Basic CPU module – 2 x EtherCAT master interface

RS422 interface, D-sub socket, 9-pin, configuration as full duplex end point, termination on

RS485 interface, D-sub socket, 9-pin, configuration as drop point, with echo, termination off

RS485 interface, D-sub socket, 9-pin, configuration as drop point, without echo, termination off

RS485 interface, D-sub socket, 9-pin, configuration as an end point, with echo, termination on

RS485 interface, D-sub socket, 9-pin, configuration as an end point, without echo, termination on

RS232 interface, D-sub plug, 9-pin

DisplayPort interface, additional DisplayPort for clone or extended display mode. Is not supported by Windows Embedded Compact 7.

DVI-D interface, additional DVI-D port for clone or extended display mode. Is not supported by Windows Embedded Compact 7.

CPU module, TwinCAT/BSD, TwinCAT 3 runtime (XAR), no licenses included

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64 bit, TwinCAT 3 runtime (XAR), no licenses included

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64 bit, no TwinCAT

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 NC I runtime

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 NC runtime

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, TwinCAT 2 PLC runtime

CPU module, Microsoft Windows 10 IoT Enterprise 2016 LTSB, 32 bit, no TwinCAT

CPU module, Microsoft Windows Embedded Standard 7 P, 64 bit, TwinCAT 3 runtime (XAR), no licenses included
