Inductive Sensors Parts
Compare Inductive Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Operating current | Degree of protection | Mass |
|---|---|---|---|---|---|
| PS*-7* | T194110 | see table | see table | IP66 | see table |
| PS*-4* | T194109 | see table | see table | IP66 | see table |
| V1-SLEEVE-100M-SI | 916079 | — | — | — | — |
| NJ15-M1K-N-Y127931 | 70133130 | — | — | IP67 | — |

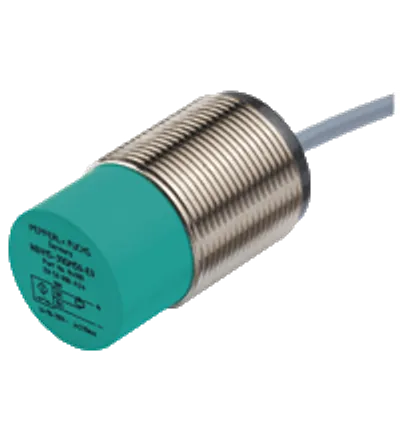

| NJ15-30GM50-A2-5M | 222511 | 10 ... 60 V UB | 0 ... 400 mA IL | IP67 | — |

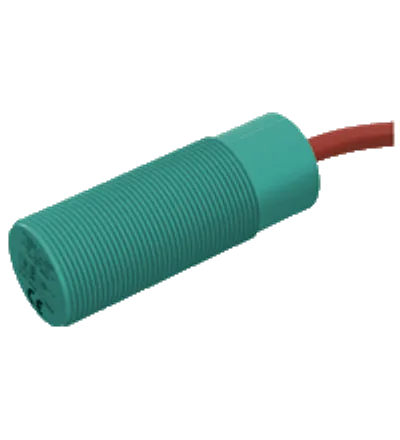

| NJ10-30GK-E2-T | 006723 | 10 ... 30 V UB | 0 ... 200 mA IL | IP68 | 187 g |
| NJ15-30GK-E2-T | 006823 | 10 ... 30 V UB | 0 ... 200 mA IL | IP68 | 200 g |
| NJ15-30GK-E-T | 006822 | 10 ... 30 V UB | 0 ... 200 mA IL | IP68 | 200 g |
| V19SX-G-GN1,5M-PUR-E2S-V45-G | 70211450 | max. 50 V AC / 60 V DC UB | max. 0.5 A IB | EN 60529 | 77 g |

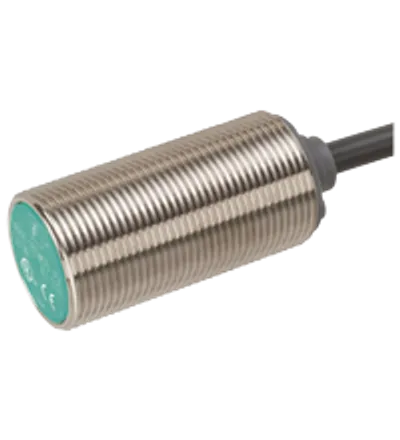

| NBB8-18GM35-A0-M1-Y0104 | 293454-0104 | 7 ... 30 V UB | 0 ... 200 mA IL | IP68 / IP69K | — |
| V19SX-G-GN2,5M-PUR-E2S-V45-G | 70211451 | max. 50 V AC / 60 V DC UB | max. 0.5 A IB | EN 60529 | 77 g |

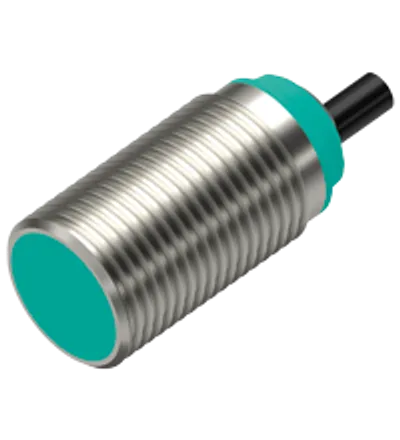

| NBB8-18GM35-E2-5M | 326163-0310 | 6 ... 36 V UB | 0 ... 200 mA IL | IP65 / IP66 / IP67 / IP68 / IP69 | 187 g |

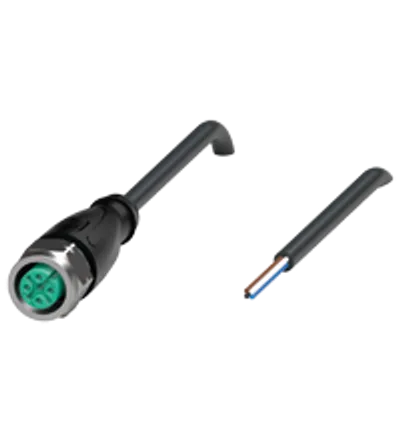

| V1-GV4A-BK15M-PUR-U | 70128170-100230 | max. 250 V AC/DC UB | max. 4 A IB | EN 60529 | 326 g |

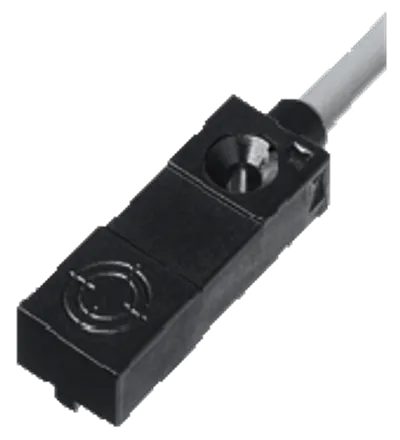

| NBN4-F29-E2-0,13M-V3-Y | 70206893 | 4.75 ... 30 V DC UB | 0 ... 100 mA IL | IP67 | — |
| NBB8-18GM35-E2 | 326161-0270 | 6 ... 36 V UB | 0 ... 200 mA IL | IP65 / IP66 / IP67 / IP68 / IP69 | 98 g |

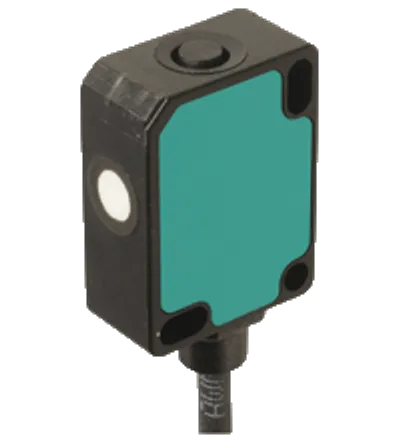

| UC250-F77-EP-IO-0,2M-V31-P002 | 266632-100013 | 10 ... 30 V DC , ripple 10 %SS UB | — | IP67 | 20.5 g |

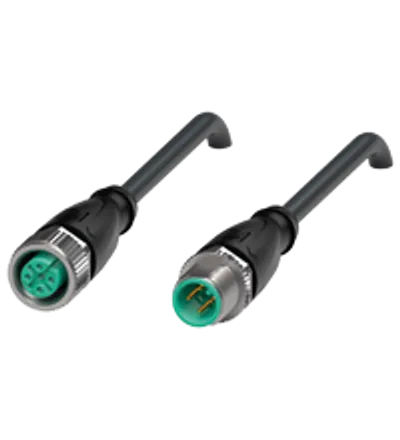

| V1-G-BK25M-PUR-U/ABG-V1-G | 70142171-100052 | max. 250 V AC/DC UB | max. 4 A IB | EN 60529 | — |

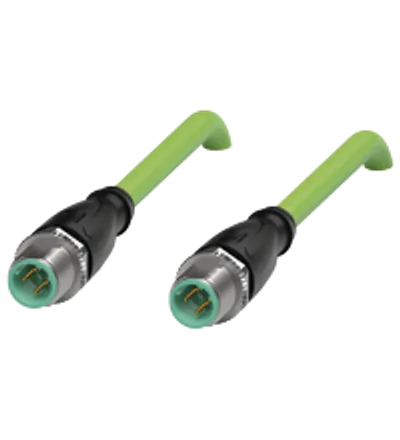

| V1SD-G-GN90M-PUR-E1S-V1D-G | 70207910 | max. 250 V AC/DC UB | max. 4 A IB | EN 60529 | 4670 g |

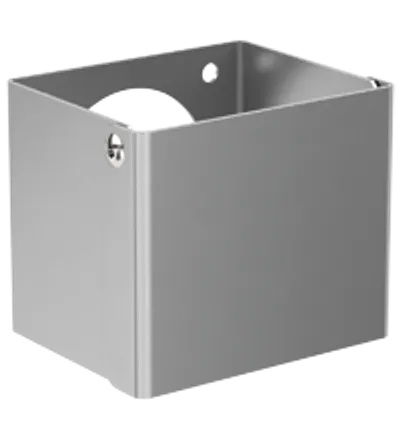

| CFP.ZCT.SP | 290173 | — | — | IP66 | 133 g |

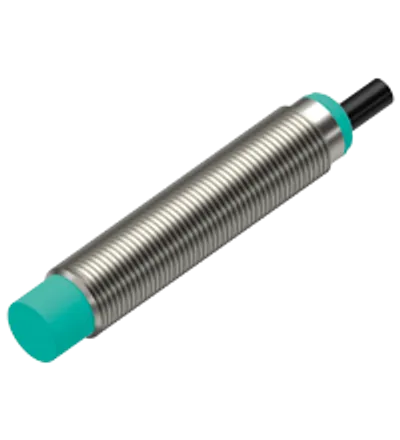

| NBN4-12GM70-A2-0,3M-PUR-V1 | 326163-0299 | 6 ... 36 V UB | 0 ... 200 mA IL | IP65 / IP66 / IP67 / IP68 / IP69 | 55 g |
| LB9029BP12320.2 | 70175201 | — | — | EN 60529 | approx. 1380 g |
| LB9026BP16210.2.E | 70175199 | — | — | EN 60529 | approx. 1370 g |

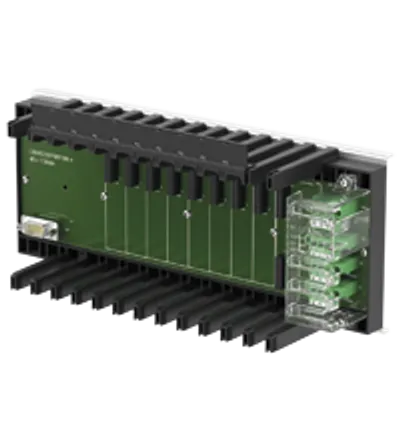

| LB9025BP08100.2 | 70175196 | — | — | EN 60529 | approx. 980 g |
| LB9027BP16200.2 | 70175200 | — | — | EN 60529 | approx. 1340 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
