EL3xxx | Analog input Parts

Beckhoff EL3433 – EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 10 A, 16 bit

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 10 A, 16 bit

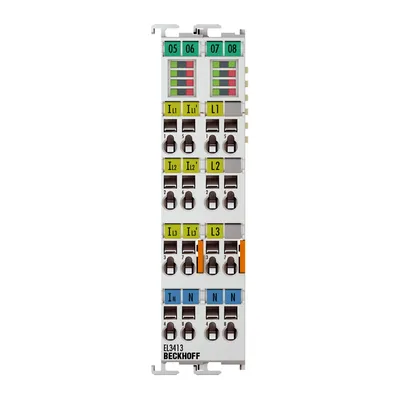

Beckhoff EL3413 – EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff EL3413-0001 – EtherCAT Terminal, 3-channel analog input, power measurement, 600 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 600 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff EL3413-0120 – EtherCAT Terminal, 3-channel analog input, power measurement, 120 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 120 V AC, 1/5 A, 16 bit, electrically isolated

Beckhoff EL3008 – EtherCAT Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff EL3004 – EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff EL3002 – EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff EL3001 – EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff EL3014 – EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff EL3012 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff EL3011 – EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff EL3021 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff EL3024 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff EL3022 – EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff EL3048 – EtherCAT Terminal, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff EL3044 – EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff EL3042 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff EL3041 – EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff EL3058 – EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff EL3054 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff EL3052 – EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff EL3051 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff EL3068 – EtherCAT Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff EL3064 – EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of inputs	Electrical isolation	Weight	Approvals/markings	Bit width in the process image
EL3433	4 x current, 3 x voltage	4500 V	approx. 100 g	CE, UL	—
EL3413	4 x current, 3 x voltage	4500 V	approx. 100 g	CE	—
EL3413-0001	4 x current, 3 x voltage	4500 V	approx. 100 g	CE, UL	—
EL3413-0120	4 x current, 3 x voltage	4500 V	approx. 100 g	CE	—
EL3008	8 (single-ended)	500 V (E-bus/signal voltage)	approx. 70 g	CE, CCC, UL, ATEX, IECEx	inputs: 32 byte
EL3004	4 (single-ended)	500 V (E-bus/signal voltage)	approx. 70 g	CE, CCC, UL, ATEX, IECEx	inputs: 16 byte
EL3002	2 (single-ended)	500 V (E-bus/field potential)	approx. 70 g	CE, CCC, UL, ATEX, IECEx	inputs: 8 byte
EL3001	1 (single-ended)	500 V (E-bus/field potential)	approx. 70 g	CE, CCC, UL, ATEX, IECEx	inputs: 4 byte
EL3014	4 (differential)	500 V (E-bus/signal voltage)	approx. 55 g	CE, CCC, UL, ATEX, IECEx	inputs: 16 byte
EL3012	2 (differential)	500 V (E-bus/signal voltage)	approx. 55 g	CE, CCC, UL, ATEX, IECEx	inputs: 8 byte
EL3011	1 (differential)	500 V (E-bus/signal voltage)	approx. 55 g	CE, CCC, UL, ATEX, IECEx	inputs: 4 byte
EL3021	1 (differential)	500 V (E-bus/signal voltage)	approx. 55 g	CE, CCC, UL, ATEX, IECEx	inputs: 4 byte
EL3024	4 (differential)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx	inputs: 16 byte
EL3022	2 (differential)	500 V (E-bus/signal voltage)	approx. 55 g	CE, CCC, UL, ATEX, IECEx	inputs: 8 byte
EL3048	8 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, ATEX, IECEx	inputs: 32 byte
EL3044	4 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx, DNV, cFMus	inputs: 16 byte
EL3042	2 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx, DNV	inputs: 8 byte
EL3041	1 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx, DNV	inputs: 4 byte
EL3058	8 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx	inputs: 32 byte
EL3054	4 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, ATEX, IECEx	inputs: 16 byte
EL3052	2 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, ATEX, IECEx	inputs: 8 byte
EL3051	1 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, ATEX, IECEx	inputs: 4 byte
EL3068	8 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx	inputs: 32 byte
EL3064	4 (single-ended)	500 V (E-bus/signal voltage)	approx. 60 g	CE, CCC, UL, ATEX, IECEx	inputs: 16 byte

Common to all listed parts

Distributed clocks	–
Current consumption power contacts	–
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
