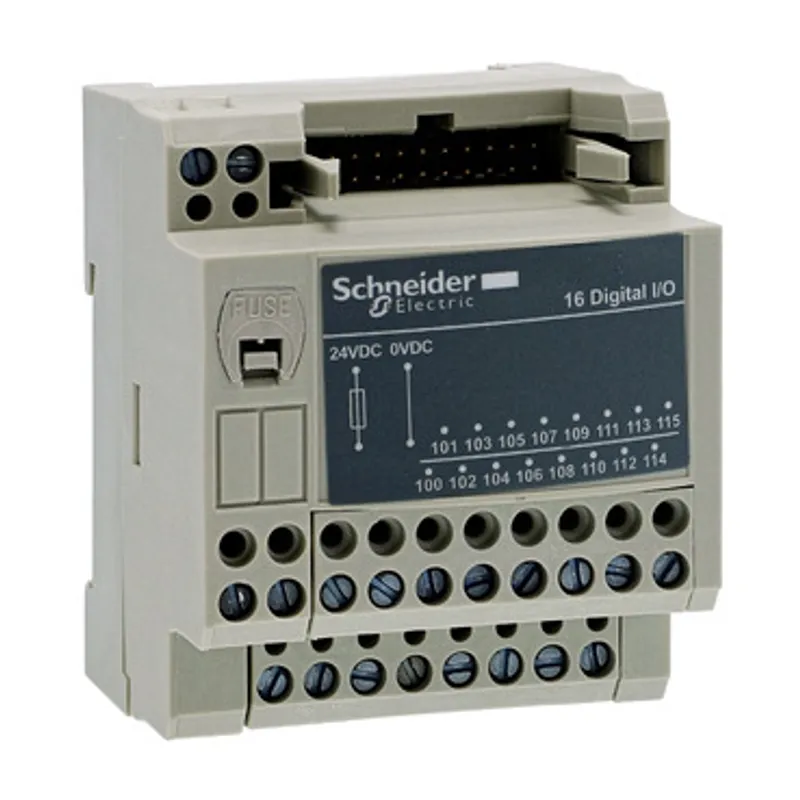

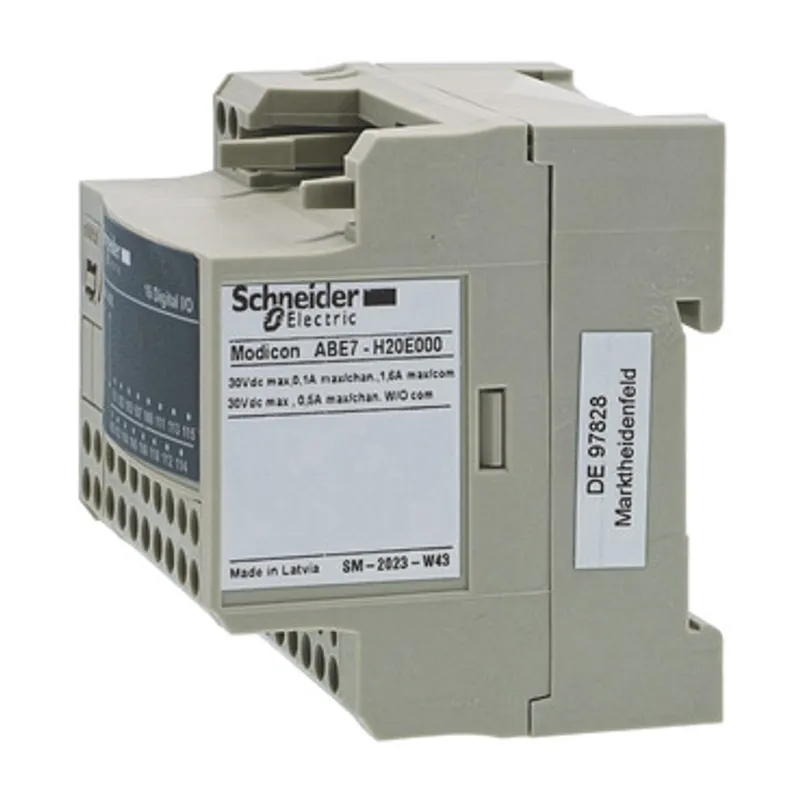

Schneider Electric ABE7H20E000
Passive connection sub-base ABE7 - Micro/Premium
- MPN
- ABE7H20E000
- EAN
- 3389110283310
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7H20E000?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel." "Its control circuit voltage is 24VDC." "It provides a digital I/O control function." "It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a economy sub-base with IP20 degree of protection." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by EAC." "It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product certifications | EAC |
Packaging
| Package 1 | 1 PCE, 9.500 cm × 8.200 cm × 7.000 cm (L × W × H), 138.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.355 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABE7H20E000: frequently asked questions
When can ABE7H20E000 be shipped?
ABE7H20E000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7H20E000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7H20E000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7H20E000, subject to availability and destination.
