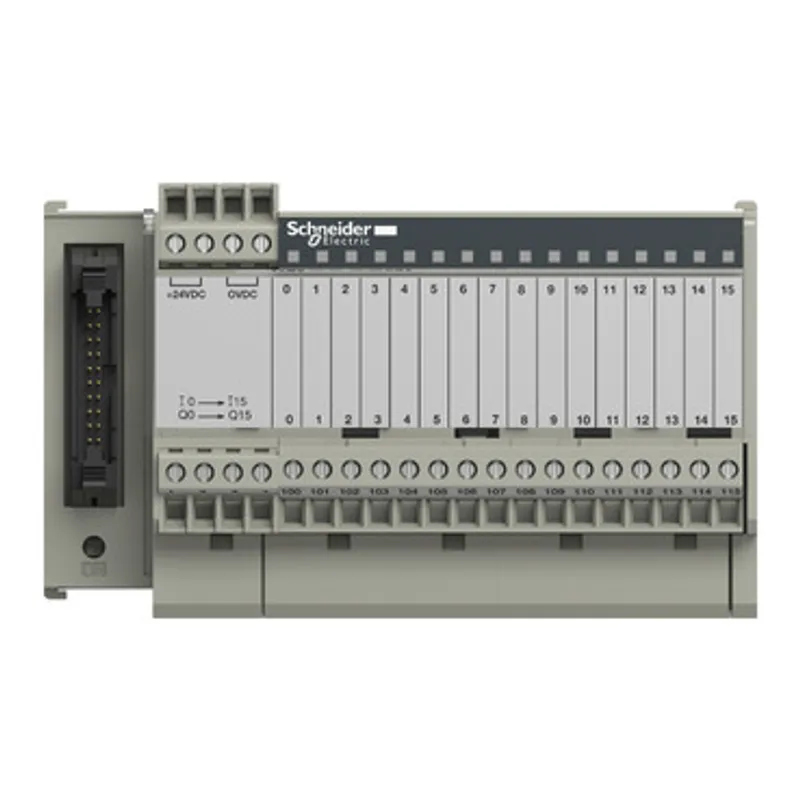

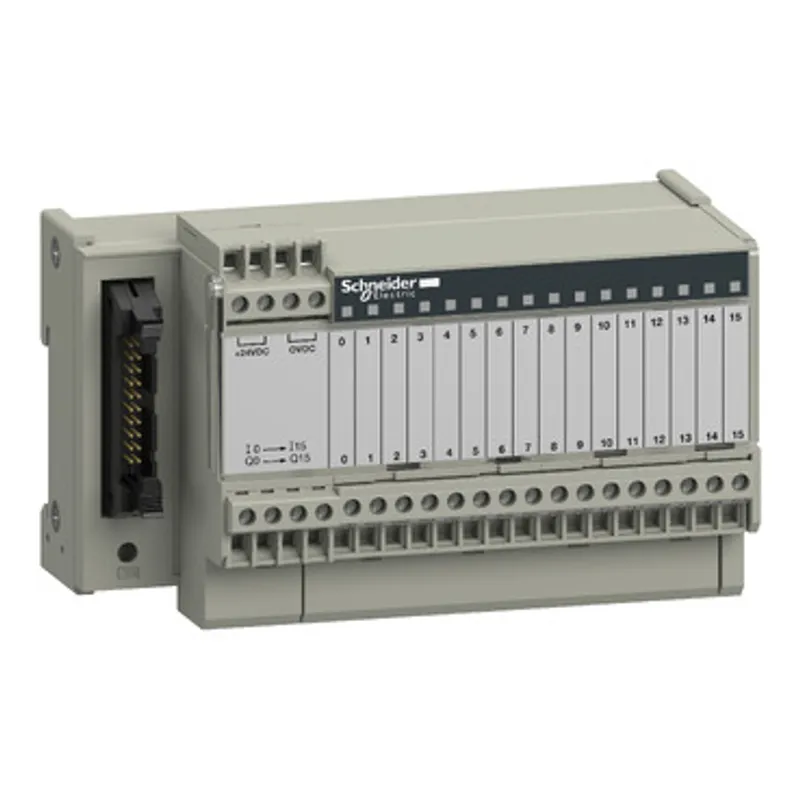

Schneider Electric ABE7R16S111
Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm
- MPN
- ABE7R16S111
- EAN
- 3389110545272
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7R16S111?
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC for PLC end |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Terminal block type | Removable |
| Polarity distribution | Polarity distribution contact common per group of 8 channels |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum current per output common | 12 A |
| Current per channel | 2 A for preactuator end |
| Minimum switching current | 1 mA at >= 5 V |
| Drop-out voltage | 2.4 V at 20 °C (PLC end) |
| Switching frequency | <= 10 Hz, <= 0.5 Hz |
| Threshold tripping voltage | 19.2 V at 40 °C |
| Drop-out current | 0.5 mA at 20 °C |
| Maximum power dissipation per channel in W | 0.22 W (PLC end) |
| Contacts type and composition | 1 NO for preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 30 V DC conforming to IEC 60947-5-1 |
| Number of channel per common | 8 |
| Electrical durability | 500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end), 500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end) |
| electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing, <= 6 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load, 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 125 mm |
| Height | 77 mm |
| Depth | 58 mm |
| Net weight | 0.405 kg |
| Max immunity to microbreaks | 5 ms |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Product certifications | DNV, UL, CSA, GL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 13.600 cm × 8.200 cm × 7.000 cm (L × W × H), 348.000 g |
| Package 2 | 30 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.285 kg |
