Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|

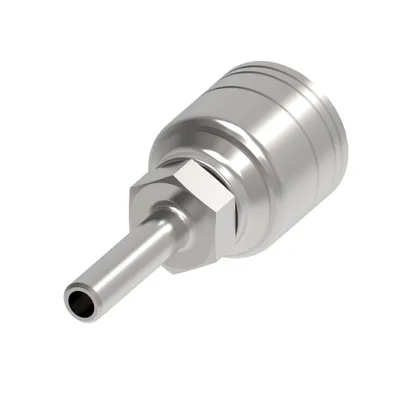

| 10Z-T10 | — | — | — | — | — |

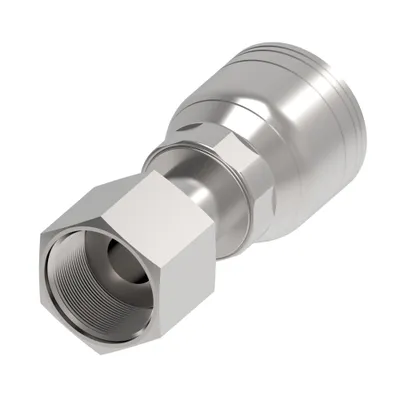

| 10Z-S70 | — | — | — | — | — |

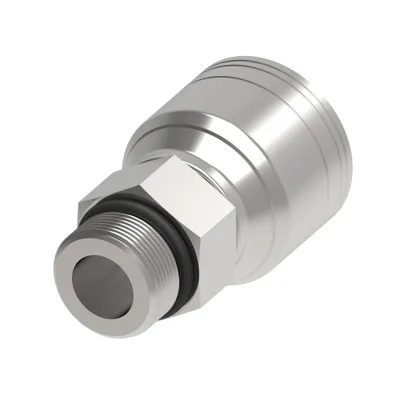

| 10Z-P12 | — | — | — | — | — |

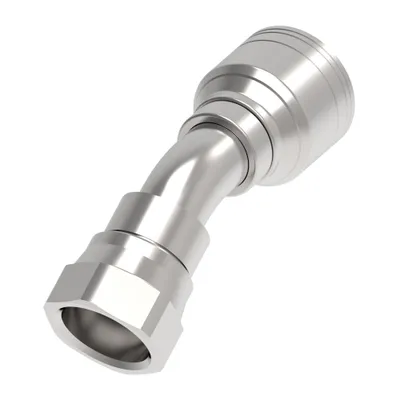

| 10Z-L22 | — | — | — | — | — |
| WH007-20 | 7.480 | 190.000 | 180 | 1.67 | 42.30 |
| WH007-16 | 5.910 | 150.000 | 220 | 1.41 | 35.90 |
| WH007-12 | 5.120 | 130.000 | 280 | 1.14 | 29.00 |

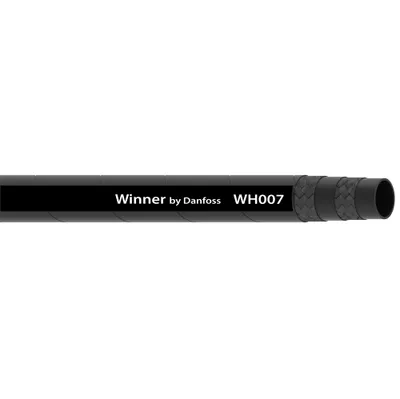

| WH007-10 | 4.130 | 105.000 | 320 | 1.02 | 25.90 |
| WH007-06 | 2.760 | 70.000 | 440 | 0.73 | 18.50 |
| WH007-05 | 2.170 | 55.000 | 520 | 0.67 | 16.90 |
| WH007-04 | 1.770 | 45.000 | 580 | 0.57 | 14.40 |
| WH006-16MT50 | 5.910 | 150.000 | 160 | 1.35 | 34.40 |
| WH006-16 | 5.910 | 150.000 | 160 | 1.35 | 34.40 |
| WH006-12 | 4.330 | 110.000 | 180 | 1.06 | 27.00 |
| WH006-10MT50 | 3.540 | 90.000 | 200 | 0.94 | 23.90 |
| WH006-10 | 3.540 | 90.000 | 200 | 0.94 | 23.90 |
| WH006-08 | 2.760 | 70.000 | 232 | 0.78 | 19.70 |
| WH006-06 | 2.360 | 60.000 | 252 | 0.65 | 16.50 |
| WH006-05MT50 | 1.970 | 50.000 | 272 | 0.59 | 14.90 |
| WH006-05 | 1.970 | 50.000 | 272 | 0.59 | 14.90 |
| WH006-04MT50 | 1.570 | 40.000 | 300 | 0.53 | 13.40 |

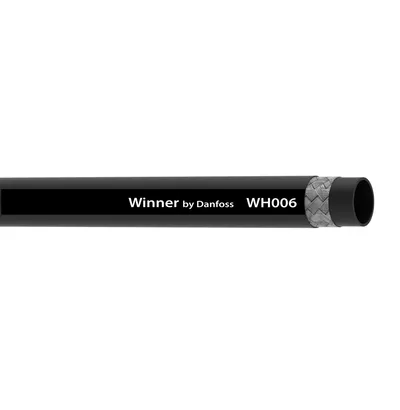

| WH006-04 | 1.570 | 40.000 | 300 | 0.53 | 13.40 |
| WH006-03MT50 | 1.380 | 35.000 | 320 | 0.46 | 11.80 |
