EtherCAT and fieldbus cables Parts
Compare EtherCAT and fieldbus cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

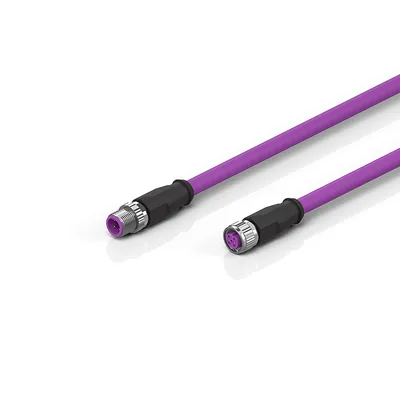

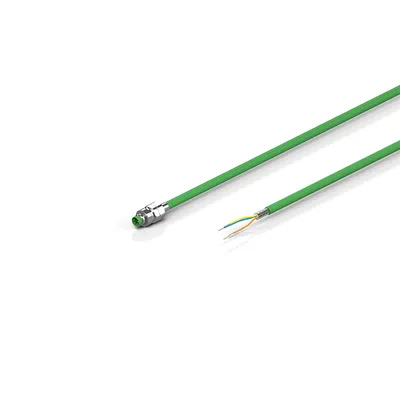

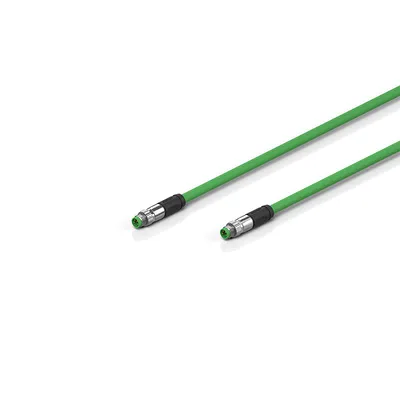

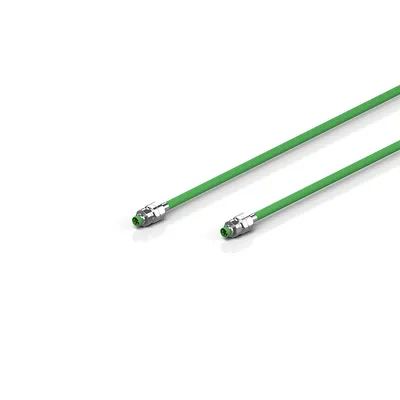

| MPN | Installation size | Number of positions (face) | Outer cable diameter | A1 | A2 |
|---|---|---|---|---|---|
| ZK1090-3132-0xxx | M8 | 4-pin | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 41.00 mm | Ø 10.1 mm |
| ZK1031-6100-1xxx | open end | 2-wire + shielding | 8.50 ±0.40 mm | 49.00 mm | — |
| ZK1031-6200-1xxx | open end | 2-wire + shielding | 8.50 ±0.40 mm | 43.80 mm | — |
| ZK1031-6251-1xxx | M12 | 4-pin | 8.50 ±0.40 mm | 43.80 mm | — |
| ZK1031-6300-1xxx | open end | 2-wire + shielding | 8.50 ±0.40 mm | 35.00 mm | 32.00 mm |
| ZK1031-6354-1xxx | M12 | 4-pin | 8.50 ±0.40 mm | 35.00 mm | 32.00 mm |
| ZK1031-6400-1xxx | open end | 2-wire + shielding | 8.50 ±0.40 mm | 35.00 mm | 26.80 mm |
| ZK1031-6451-1xxx | M12 | 4-pin | 8.50 ±0.40 mm | 35.00 mm | 26.80 mm |
| ZK1052-6100-3xxx | open end | 4-wire + strand and shielding | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 49.0 mm | Ø 14.5 mm |
| ZK1052-6152-3xxx | M12 | 5-pin | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 49.0 mm | Ø 14.5 mm |
| ZK1052-6154-3xxx | M12 | 5-pin | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 49.0 mm | Ø 14.5 mm |
| ZK1052-6200-3xxx | open end | 4-wire + strand and shielding | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 44.0 mm | Ø 14.5 mm |
| ZK1052-6300-3xxx | open end | 4-wire + strand and shielding | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 35.00 mm | 32.00 mm |
| ZK1052-6354-3xxx | M12 | 5-pin | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 35.00 mm | 32.00 mm |
| ZK1052-6400-3xxx | open end | 4-wire + strand and shielding | 7.24 mm ± 0.2 mm (0.2850" ± 0.0079") | 35.00 mm | 26.80 mm |
| ZK1090-3100-0xxx | open end | 4-wire + strand and shielding | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3100-1xxx | open end | 4-wire + strand and shielding | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3100-3xxx | open end | 4-wire + strand and shielding | 4.9 mm ± 0.2mm (0.193" ± 0.0079") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3100-7xxx | open end | 4-wire + strand and shielding | 4.9 mm ± 0.2mm (0.193" ± 0.0079") | 28.0 mm | Ø 12.0 mm |
| ZK1090-3131-0xxx | M8 | 4-pin | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3131-1xxx | M8 | 4-pin | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3131-3xxx | M8 | 4-pin | 4.9 mm ± 0.2mm (0.193" ± 0.0079") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3131-6xxx | M8 | 4-pin | 6.6 mm ± 0.2mm (0.259" ± 0.0079") | 41.00 mm | Ø 10.1 mm |
| ZK1090-3131-7xxx | M8 | 4-pin | 4.9 mm ± 0.2mm (0.193" ± 0.0079") | 28.0 mm | Ø 12.0 mm |
Common to all listed parts
| Shielding | yes |
