Inductive proximity switches and proximity sensors Parts
Compare Inductive proximity switches and proximity sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Range | Switching frequency | Approval/Conformity |
|---|---|---|---|---|---|
| BES00RE | BES 516-327-E4-Y-01,5 | Ø 30 x 36 mm | 10 mm | 200 Hz | CE UKCA cULus WEEE |
| BES01EA | BES 516-327-G-S4-C | Ø 30 x 83 mm | 15 mm | 100 Hz | CE UKCA cULus WEEE |
| BES00RW | BES 516-327-G-E5-Y-S4 | Ø 30 x 44.5 mm | 15 mm | 100 Hz | CE UKCA cULus WEEE |
| BES00RP | BES 516-327-E5-Y-S4 | Ø 30 x 44.5 mm | 10 mm | 200 Hz | CE cULus EAC WEEE |
| BES007W | BES M18MI-POC50B-S04K | Ø 18 x 65 mm | 5 mm | 700 Hz | cULus CE EAC WEEE |
| BES015M | BES 516-105-G-S4-H | Ø 18 x 83 mm | 8 mm | 80 Hz | CE EAC |
| BES00RC | BES 516-326-G-E5-C-S4 | Ø 18 x 44.5 mm | 8 mm | 200 Hz | CE UKCA cULus WEEE |
| BES01HW | BES 516-360-G-S4-H | Ø 18 x 83 mm | 16 mm | 80 Hz | CE EAC WEEE |
| BES035E | BES 516-325-SA45 | Ø 12 x 31 mm | 2 mm | 1000 Hz | CE UKCA EAC WEEE |
| BES03U0 | BES Q08MEC-POC15B-S49G | 27 x 8 x 8 mm | 1.5 mm | 3000 Hz | CE cULus EAC |

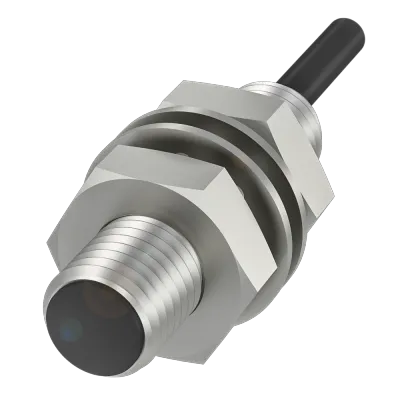

| BES03TT | BES 516-324-SA45-E4-C-PU-05 | Ø 8 x 30 mm | 1.5 mm | 3000 Hz | CE cULus EAC |
| BES03TM | BES R01ZC-USC50B-BP00.2-GS04-101 | 32 x 20 x 8 mm | 5 mm | 300 Hz | CE EAC |
| BES034L | BES 516-324-SA33 | Ø 8 x 65 mm | 1.5 mm | 3000 Hz | cULus CE EAC WEEE |
| BES03TC | BES M30MD-POC10B-BP02-003 | Ø 30 x 36 mm | 10 mm | 150 Hz | CE cULus EAC |
| BES03TA | BES M30ME-NOC10B-S04G-003 | Ø 30 x 44.5 mm | 10 mm | 150 Hz | cULus CE UKCA WEEE |
| BES03T8 | BES M18MD-NOC50B-BP02-003 | Ø 18 x 36 mm | 5 mm | 375 Hz | CE cULus EAC WEEE |
| BES03T7 | BES M18ME-NOC50B-S04G-003 | Ø 18 x 44.5 mm | 5 mm | 700 Hz | cULus CE EAC |
| BES03T4 | BES M18MI-NOC80B-BV02 | Ø 18 x 56 mm | 8 mm | 150 Hz | CE cULus EAC WEEE |
| BES03T3 | BES G06EH-NOC40F-S49G | Ø 6.5 x 60 mm | 4 mm | 1500 Hz | CE cULus EAC |
| BES03T2 | BES G06EH-NSC40F-S49G | Ø 6.5 x 60 mm | 4 mm | 1500 Hz | CE cULus EAC |
| BES03T1 | BES G06EH-POC40F-S49G | Ø 6.5 x 60 mm | 4 mm | 1500 Hz | CE cULus EAC |
| BES03T0 | BES G06EE-NOC20B-S49G-003 | Ø 6.5 x 40 mm | 2 mm | 700 Hz | cULus CE EAC |
| BES03RZ | BES G06EE-NSC20B-S49G-003 | Ø 6.5 x 40 mm | 2 mm | 700 Hz | cULus CE EAC |
| BES03RW | BES G06EH-NOC20B-S49G | Ø 6.5 x 55 mm | 2 mm | 1500 Hz | CE cULus EAC |
Common to all listed parts
| Product group | Inductive proximity switches and proximity sensors |
| Principle of operation | Inductive sensor |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
