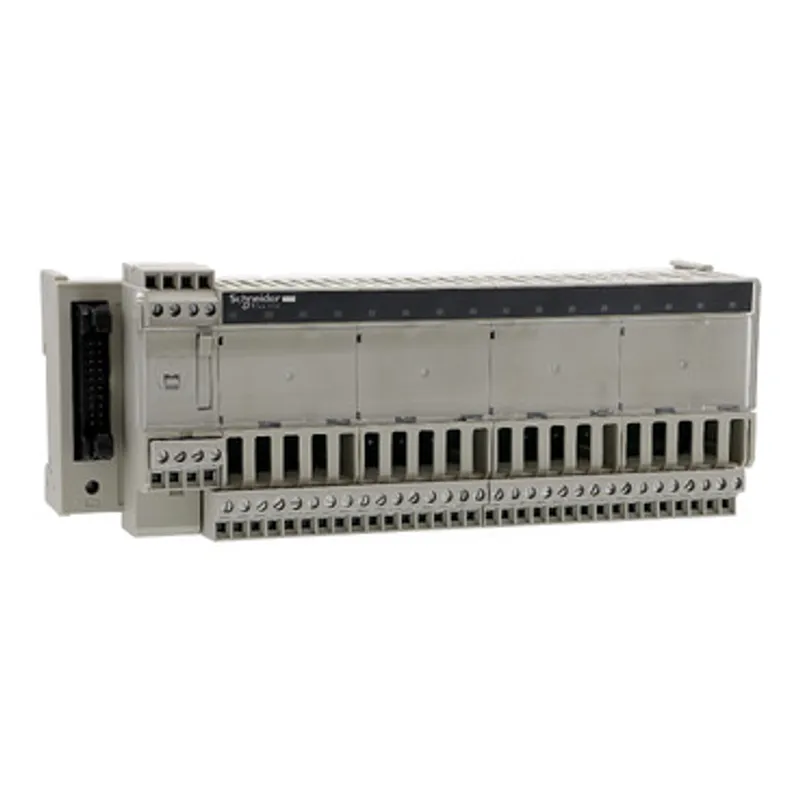

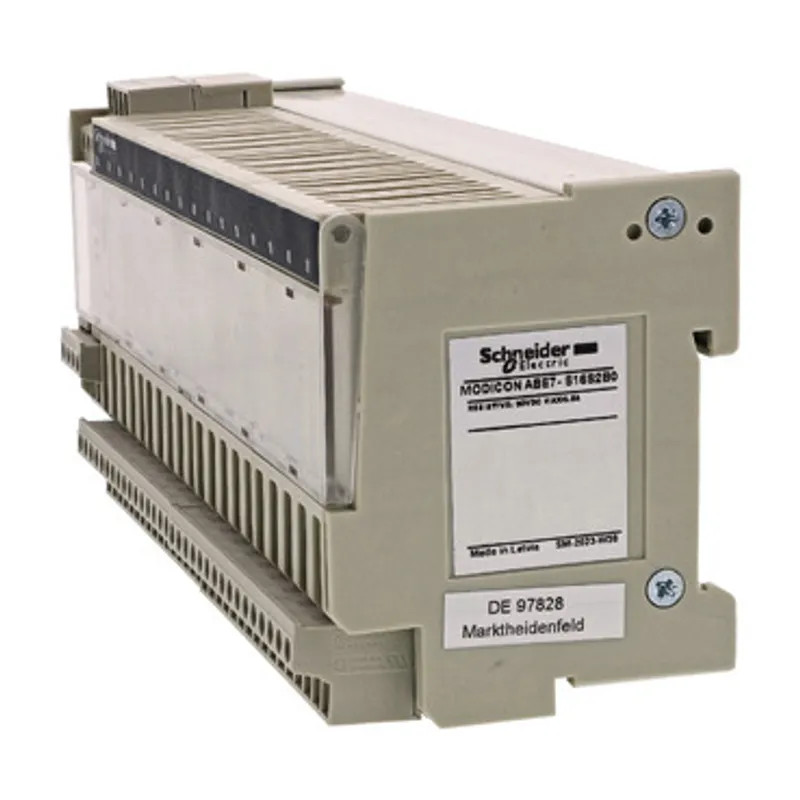

Schneider Electric ABE7S16S2B0
Sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A
- MPN
- ABE7S16S2B0
- EAN
- 3389110546293
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7S16S2B0?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel, and with a fault detection signal." "Its control circuit voltage is 24VDC." "It provides a digital output control function." "It is furnished with removable screw or spring terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a relay output sub-base with IP20 degree of protection. It weighs 0.405kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Solid state output relay sub-base |
| [Us] rated supply voltage | 24 V DC for PLC end, 24 V DC for preactuator end |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Relay type | Soldered solid state relay |
| Terminal block type | Removable |
| Isolation PLC/operative part | No |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Current state 0 guaranteed | 0.4 mA (PLC end) |
| Voltage state 0 guaranteed | 3.4 V for PLC end |
| Current state 1 guaranteed | 3.1 mA (PLC end) |
| Voltage state 1 guaranteed | 16.9 V for PLC end |
| Maximum current per output common | 8 A |
| Current per channel | 0.5 A for preactuator end |
| Minimum switching current | 1 mA |
| Drop-out voltage | 0.6 V (preactuator end) |
| Maximum switching current | 500 mA DC-12, 500 mA DC-13 |
| Maximum tungsten load | <10 W DC-6 |
| Maximum residual current | 0.3 mA preactuator end |
| Fault type | Overload, Short-circuit |
| Fault indication | Yes |
| Switchable inductive energy L/R | <= 400(U.I) ms |
| Maximum circuit breaker threshold | 0.75 A |
| Response time | <= 0.02 ms from state 1 to 0, <= 0.1 ms from state 0 to 1 |
| Switching frequency | < 0.6/LI² Hz |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 206 mm |
| Net weight | 0.405 kg |
| Product certifications | UL, GL, CSA, DNV, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 21.0 cm × 8.2 cm × 7.0 cm (L × W × H), 456.0 g |
| Package 2 | 16 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 7.971 kg |
