CompactLogix 1768/1769 & Legacy Logix Parts
Compare CompactLogix 1768/1769 & Legacy Logix
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Discontinued date | Height | Depth | Power dissipation | Weight, approx |
|---|---|---|---|---|---|
| 1768-ENBT | December 31, 2020 | 132mm, 5.2" | 105.1 mm | 4.38 W | 0.213 kg |

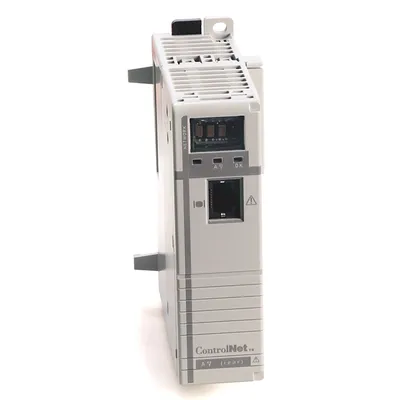

| 1768-CNB | January 31, 2020 | 132 mm | 105.1 mm | 5.14 W | 0.26 kg |
| 1768-L45S | October 30, 2020 | 131.6 mm | 122.1 mm | 9.5 W | 0.45 kg |
| 1768-L43S | October 30, 2020 | 131.6 mm | 122.1 mm | 7.5 W | 0.45 kg |

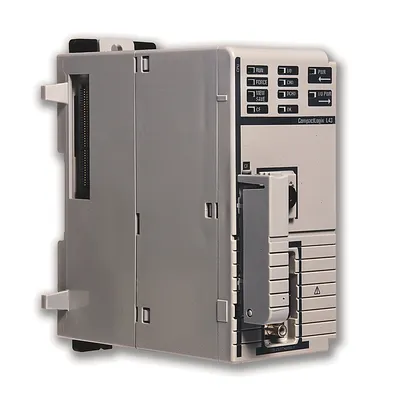

| 1768-L43 | June 30, 2020 | 131.6mm, 5.18" | 121.1 mm | 6.3 W | 0.34 kg |
| 1768-M04SE | December 31, 2020 | 132. 15mm, 5.2" | — | — | — |
| 1768-L45 | June 30, 2020 | 131.6mm, 5.18" | 121.1 mm | 8.3 W | 0.34 kg |
| 1768-CNBR | January 31, 2020 | 132 mm | 105.1 mm | 5.14 W | 0.293 kg |
| 1768-EWEB | January 31, 2020 | 132mm, 5.2" | 105.1 mm | 4.38 W | 0.213 kg |
| 1768-PA3 | December 31, 2020 | 131.5mm, 5.18" | — | — | — |
| 1768-PB3 | December 31, 2020 | 131.5mm, 5.18" | — | — | — |
| 1768-KY1 | December 31, 2020 | — | — | — | — |
Common to all listed parts
| Lifecycle | Discontinued |
| Replacement category (Rockwell) | Engineering Replacement |
