Danfoss orbital motor quick selector Parts

Danfoss

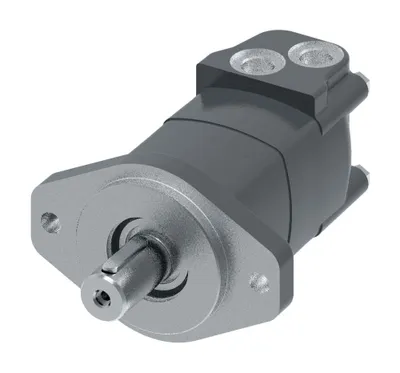

STA19DD2-C

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBR10UUCGU2XC

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss

SBR10AA2GXC

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss

SBR05AA2GXC

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss

SBP07UU2GU2XC

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss

SBP05UUBGU4XC

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss

SBF19DD2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBF19AB2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBF16AB2XD

MOTOR-ORBITAL,S SERIES 160 [9.8]

Danfoss

SBF10AB2XD

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss

SBF05DB2XD

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss

SBE22AD2XD

MOTOR-ORBITAL,S SERIES 220 [13.4]

Danfoss

SBE19AD2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBE14DB2XD

MOTOR-ORBITAL,S SERIES 140 [8.5]

Danfoss

SBE07DD2XD

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss

SBE07AD2XD

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss

SBE05DD2XD

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss

SBE05CD2XD

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss

SBD22DD2XD

MOTOR-ORBITAL,S SERIES 220 [13.4]

Danfoss

SBD19AB2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBD07AB2XD

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss

SBA19DB2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBA19BA2MXD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss

SBA19AB2XD

MOTOR-ORBITAL,S SERIES 190 [11.6]

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Brake Type	Displacement	Output shaft type	Port Type
SBE14DB2XD	Brake T 16K, EXT P, W MR	144 cm3/r (8.8 in3/r)	6B Spline	Rc1/2 port
SBE07DD2XD	Brake T 16K, EXT P, W MR	76 cm3/r (4.6 in3/r)	27MM Straight key 8x7x31.7	Rc1/2 port
SBE07AD2XD	Brake T 16K, EXT P, W MR	76 cm3/r (4.6 in3/r)	27MM Straight key 8x7x31.7	G1/2 O-ring port
SBE05DD2XD	Brake T 16K, EXT P, W MR	58 cm3/r (3.6 in3/r)	27MM Straight key 8x7x31.7	Rc1/2 port
SBE05CD2XD	Brake T 16K, EXT P, W MR	58 cm3/r (3.6 in3/r)	27MM Straight key 8x7x31.7	1/2 NPTF port
SBD22DD2XD	Brake T 10K, EXT P, W MR	224 cm3/r (13.7 in3/r)	27MM Straight key 8x7x31.7	Rc1/2 port
SBD19AB2XD	Brake T 10K, EXT P, W MR	186 cm3/r (11.3 in3/r)	6B Spline	G1/2 O-ring port
SBD07AB2XD	Brake T 10K, EXT P, W MR	76 cm3/r (4.6 in3/r)	6B Spline	G1/2 O-ring port
SBA19DB2XD	Brake T 10K, EXT P	186 cm3/r (11.3 in3/r)	6B Spline	Rc1/2 port
SBA19BA2MXD	Brake T 10K, EXT P	186 cm3/r (11.3 in3/r)	25MM Straight key 7x7x31.7	Man port
SBA19AB2XD	Brake T 10K, EXT P	186 cm3/r (11.3 in3/r)	6B Spline	G1/2 O-ring port

Common to all listed parts

Design code	Second
Drain	With drain
Flange	2 bolt flange
Product Series	S Series with brake
Sub brand	Char-Lynn
