ABE7P16T318Sub-base for plug-in relay ABE7 - 16 channels - fuses - isolator - relay 12.5 mm
Schneider Electric ABE7R08S210

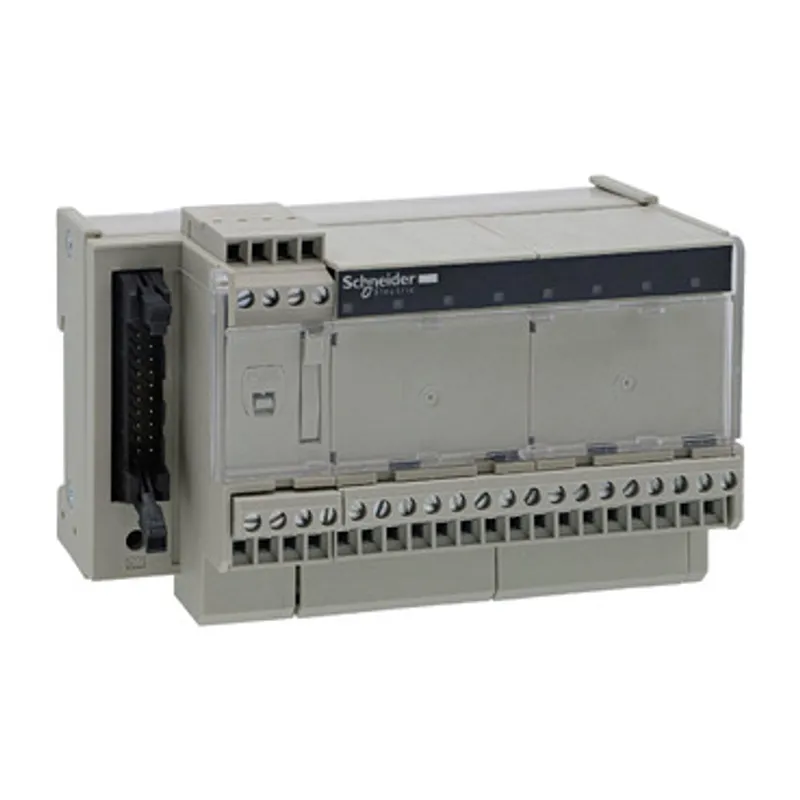

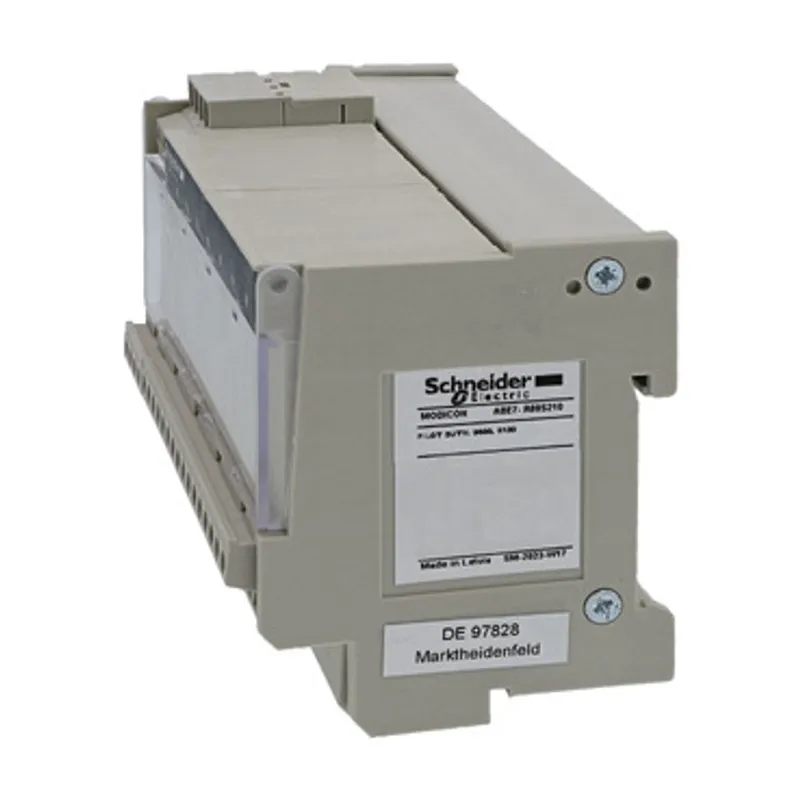

Sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm
- MPN
- ABE7R08S210
- EAN
- 3389110545265
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7R08S210?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with fixed relays for 8 channels, an integral NO contact and common, with 2 terminals per channel." "Its control circuit voltage is 24VDC." "It provides a digital output control function." "It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a relay output sub-base with IP20 degree of protection. It weighs 0.448kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC for PLC end |
| Number of channels | 8 |
| Number of terminal per channel | 2 |
| Terminal block type | Removable |
| Polarity distribution | Volt-free |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum current per output common | 10 A |
| Current per channel | 5 A for preactuator end |
| Minimum switching current | 10 mA at >= 5 V |
| Drop-out voltage | 2.4 V at 20 °C (PLC end) |
| Switching frequency | <= 0.5 Hz, <= 10 Hz |
| Threshold tripping voltage | 19.7 V at 40 °C |
| Drop-out current | 1 mA at 20 °C |
| Maximum power dissipation per channel in W | 0.36 W (PLC end) |
| Contacts type and composition | 1 NO for preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 30 V DC conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end) |
| electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing, <= 5 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load, 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 125 mm |
| Net weight | 0.448 kg |
| Max immunity to microbreaks | 5 ms |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Product certifications | UL, DNV, CSA, GL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 13.700 cm × 8.200 cm × 7.200 cm (L × W × H), 351.000 g |
| Package 2 | 9 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.572 kg |
