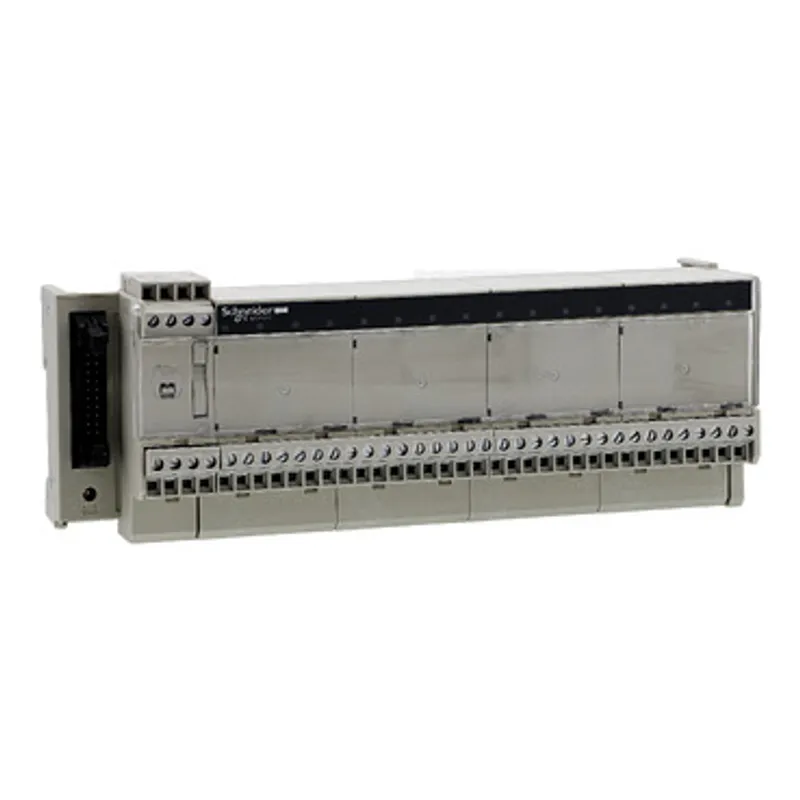

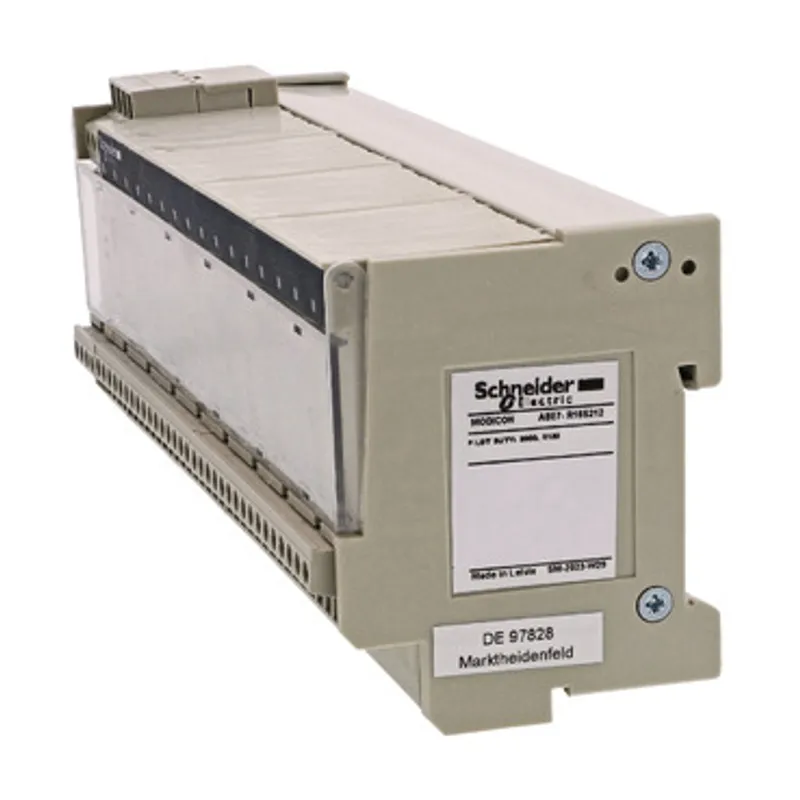

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
MPN: ABE7R16S212 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.4 kg |
Shipping & availability
When can ABE7R16S212 be shipped?
ABE7R16S212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7R16S212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7R16S212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7R16S212, subject to availability and destination.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC for PLC end |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Terminal block type | Removable |
| Polarity distribution | Common per group of 8 channels on both poles |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum current per output common | 10 A |
| Current per channel | 5 A for preactuator end |
| Minimum switching current | 10 mA at >= 5 V |
| Drop-out voltage | 2.4 V at 20 °C (PLC end) |
| Switching frequency | <= 0.5 Hz, <= 10 Hz |
| Threshold tripping voltage | 19.7 V at 40 °C |
| Drop-out current | 1 mA at 20 °C |
| Maximum power dissipation per channel in W | 0.36 W (PLC end) |
| Contacts type and composition | 1 NO for preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 30 V DC conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end) |
| electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing, <= 5 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load, 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 206 mm |
| Net weight | 0.4 kg |
| Max immunity to microbreaks | 5 ms |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Product certifications | UL, CSA, GL, DNV, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 21.200 cm |
| Package 1 Weight | 582.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.813 kg |
| Warranty (in months) | 18 |
