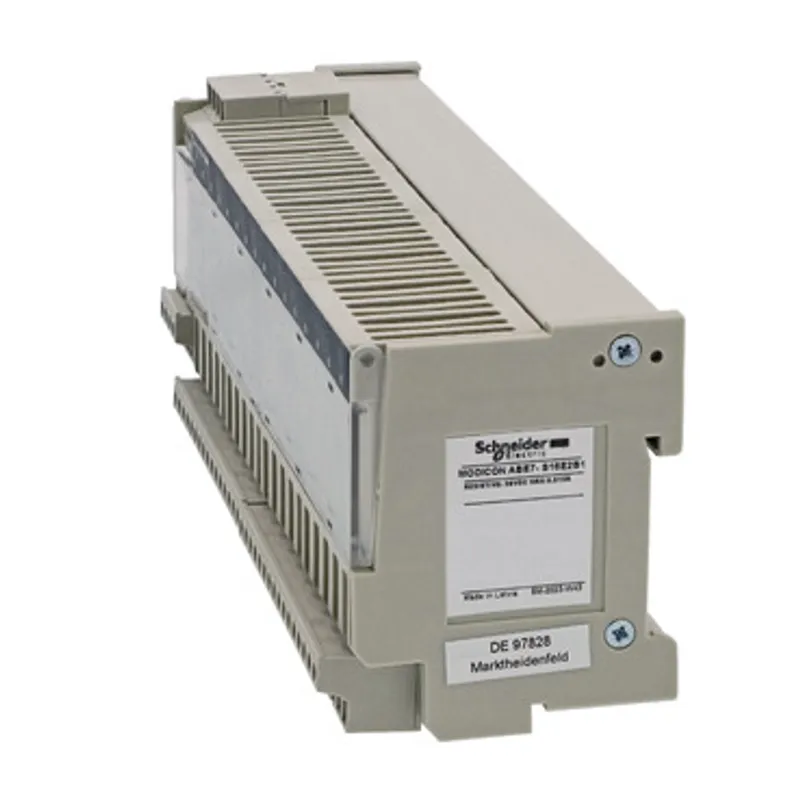

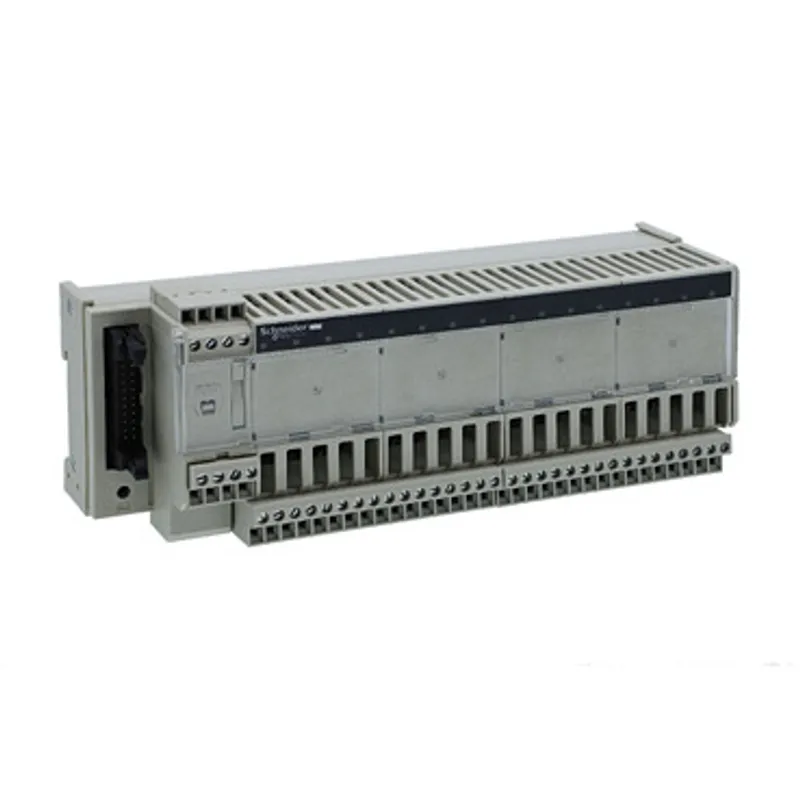

sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.37 kg |
Shipping & availability
When can ABE7S16E2B1 be shipped?
ABE7S16E2B1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7S16E2B1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7S16E2B1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7S16E2B1, subject to availability and destination.
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Solid state input relay sub-base |
| [Us] rated supply voltage | 24 V DC (PLC end), 24 V DC (sensor end) |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (AWG 24...AWG 14) solid |
| Terminal block type | Removable |
| Supply voltage limits | 19…30 V DC (PLC end) conforming to IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end, Adjustable by external fuse fast blow sensor end |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Current per channel | 0.012 A |
| Current state 1 guaranteed | >= 2 mA (sensor end) |
| Voltage state 1 guaranteed | >= 15 V for sensor end |
| Maximum switching current | 15 mA (PLC end) |
| Minimum switching current | 1 mA for PLC end |
| Response time | <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0 |
| Switching frequency | <= 1000 Hz duty cycle: 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.37 kg |
| Dielectric strength | 2000 V at 50/60 Hz conforming to IEC 60947-1 |
| Product certifications | UL, DNV, CSA, GL, EAC |
| Standards | IEC 61131-2 Type 1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 8.3 cm |
| Package 1 Length | 21.0 cm |
| Package 1 Weight | 438.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.478 kg |
| Warranty (in months) | 18 |
