passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.64 kg |
Shipping & availability
When can ABE7H16S43 be shipped?
ABE7H16S43 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7H16S43 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7H16S43 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7H16S43, subject to availability and destination.

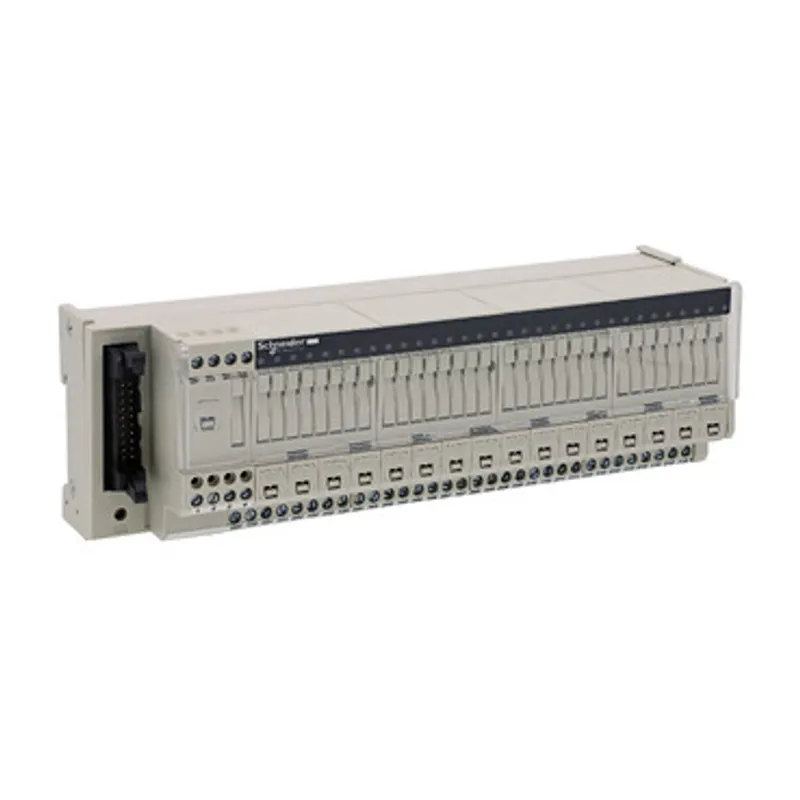

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 1 switch disconnector per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 206mm. It weighs 0.64kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Input sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (green) channel status, 1 LED per channel (red) blown fuse indication, 1 LED (green) power ON |
| Polarity distribution | 24 V |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end), 0.125 A fuse per channel, 5 x 20 mm, fast blow (output circuit) |
| Connector type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.125 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum voltage drop per channel | 0.1 V |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 206 mm |
| Height | 77 mm |
| Depth | 58 mm |
| Net weight | 0.64 kg |
| Product certifications | DNV, CSA, UL, GL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 21.0 cm |
| Package 1 Weight | 624.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 10.51 kg |
| Warranty (in months) | 18 |
