PNOZmulti Classic – communication modules Parts
Compare PNOZmulti Classic – communication modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Fieldbus interface | Connection fieldbus | Net weight | Gross weight |
|---|---|---|---|---|---|

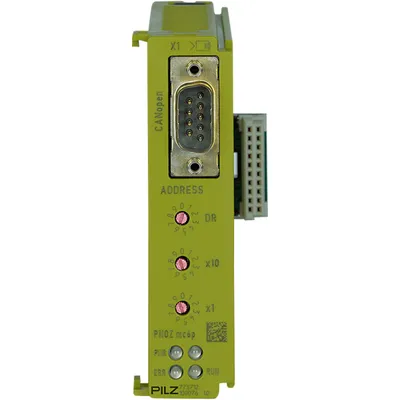

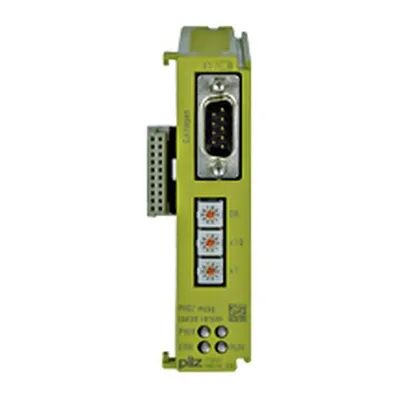

| 773733 | 773733 | CANopen | 9-pin D-Sub male connector | 110 g | 150 g |
| 773732 | 773732 | PROFIBUS-DP | 9-pin D-Sub female connector | 119 g | 138 g |
| 773731 | 773731 | PROFINET IO | RJ45 | 135 g | 154 g |
| 773730 | 773730 | EtherNet/IP (TM), Modbus/TCP | RJ45 | 137 g | 155 g |
| 773729 | 773729 | DeviceNet | 5-pin Combicon plug-in connect | 143 g | 160 g |

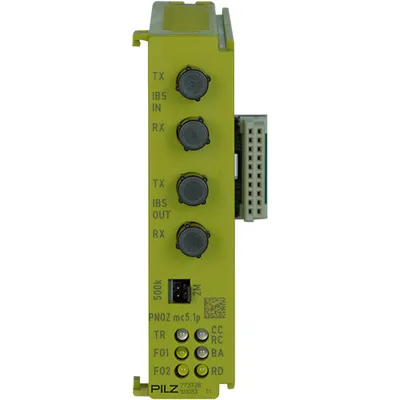

| 773728 | 773728 | INTERBUS FO | F-SMA connector | 145 g | 163 g |
| 773727 | 773727 | CANopen | 9-pin D-Sub male connector | 145 g | 163 g |

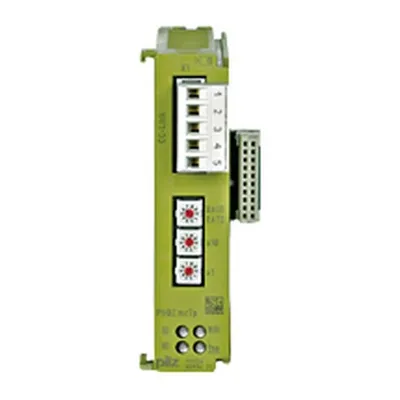

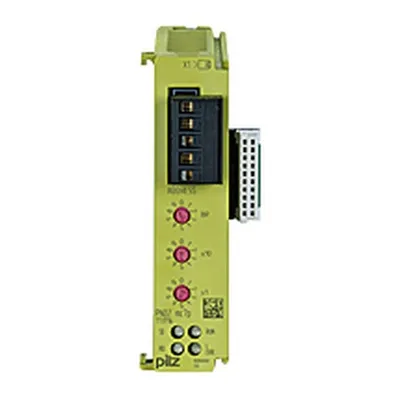

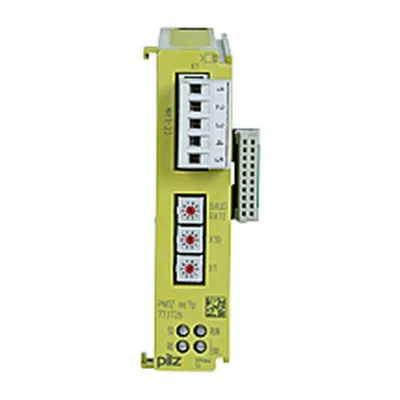

| 773726 | 773726 | CC-Link | 5-pin Combicon plug-in connect | 150 g | 195 g |
| 773725 | 773725 | CC-Link | 5-pin Combicon plug-in connect | 133 g | 201 g |

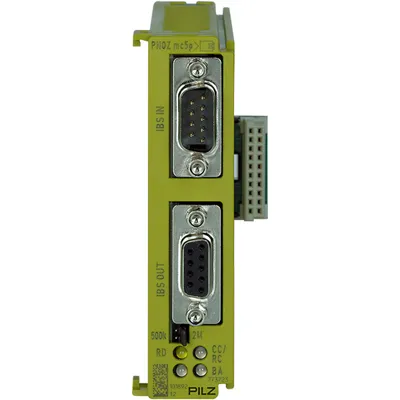

| 773723 | 773723 | INTERBUS-S | — | 155 g | 173 g |

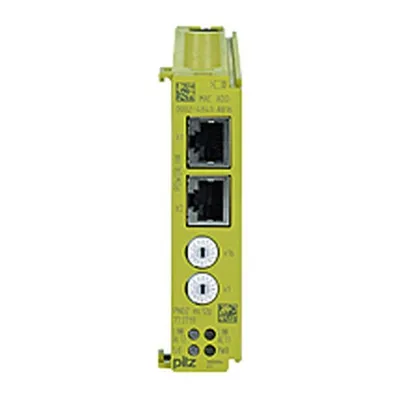

| 773719 | 773719 | Ethernet POWERLINK V2 | RJ45 | 115 g | 125 g |
| 773716 | 773716 | CC-Link V1.10 | 5-pin Combicon plug-in connect | 110 g | 160 g |

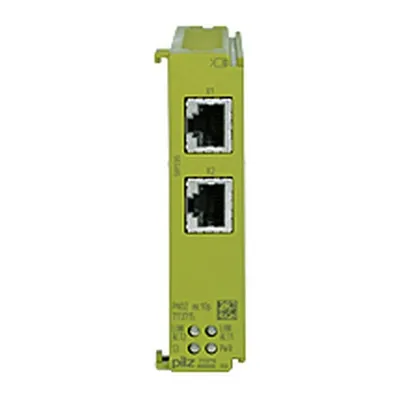

| 773715 | 773715 | sercos III | RJ45 | 125 g | 140 g |

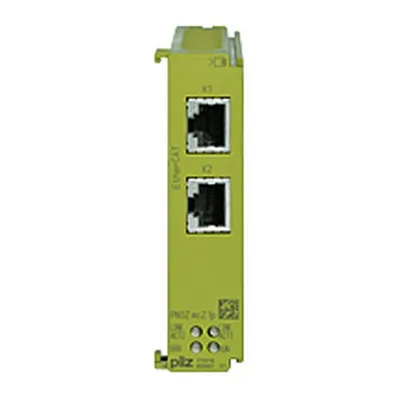

| 773713 | 773713 | EtherCAT | RJ45 | 114 g | 132 g |
| 773712 | 773712 | CANopen | 9-pin D-Sub male connector | 115 g | 135 g |

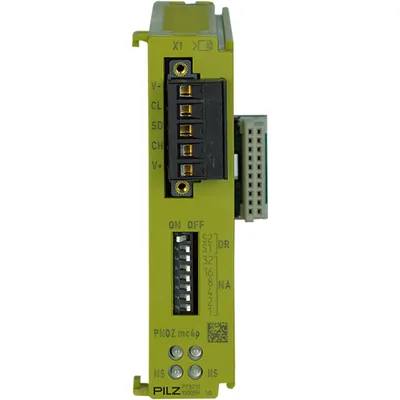

| 773711 | 773711 | DeviceNet | 5-pin Combicon plug-in connect | 110 g | 150 g |
| 773724 | 773724 | CANopen | 9-pin D-Sub male connector | 145 g | 163 g |
| 773721 | 773721 | PROFIBUS-DP | 9-pin D-Sub female connector | 142 g | 159 g |
| 773710 | 773710 | EtherCAT | RJ45 | 140 g | 158 g |
Common to all listed parts
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
| Purpose of UINT1 | Module supply |
| Voltage type of UINT1 | DC |
| Tolerance of UINT. Module | -2 %/+2 % |
| Ambient temperature standard | EN 60068-2-14 |
| Storage temperature standard | EN 60068-2-1/-2 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
