Harmony Electromechanical Relays Parts

Schneider Electric

RXZE2M4N

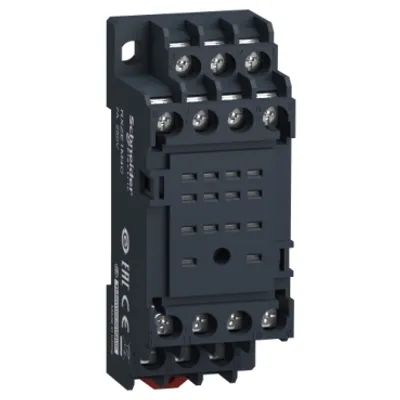

Harmony, Socket, Harmony Relay, RXZ, mixed contact, 29 mm, 4 C/O, 7 A

Schneider Electric

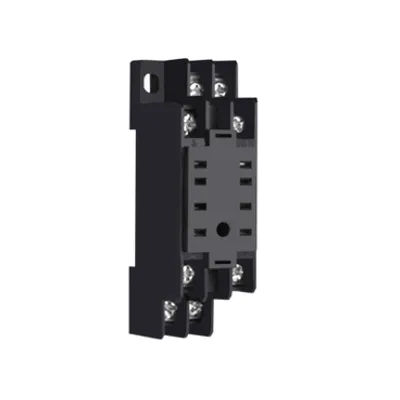

RXZE2M2N

Harmony, Socket, Harmony Relay, RXZ, mixed contact, 22.5 mm, 2 C/O, 10 A

Schneider Electric

RXM2AB1HD

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 30 V DC

Schneider Electric

RXM2AB1GD

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 125 V DC

Schneider Electric

RXM2AB1G7

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 110 V AC

Schneider Electric

RPM23F7

Plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, 120V AC

Schneider Electric

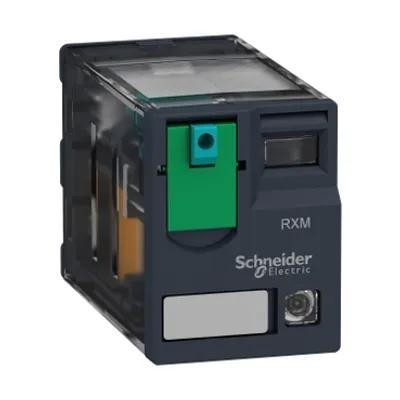

RXM4GB2MD

Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, with lockable test button, 220 V DC

Schneider Electric

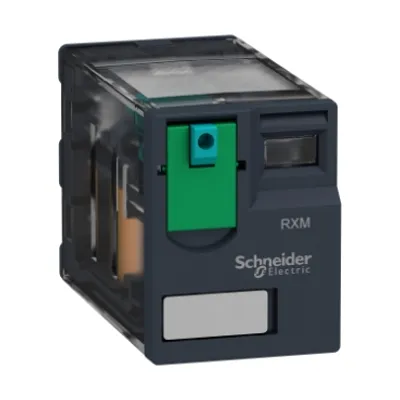

RXM2AB1ND

Miniature plug in relay, Harmony, 6 A, 2CO, lockable test button, 60V DC

Schneider Electric

RXM2AB1MD

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 220 V DC

Schneider Electric

RPM23BD

Power relay, Harmony Electromechanical Relays, 15A, 2CO, with LED, 24V DC

Schneider Electric

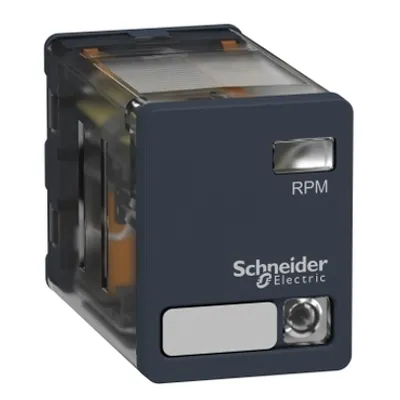

RPM23B7

Plug In Relay, Harmony Relay, power, 15A at 277VAC, 2CO contacts, 24VAC 50/60HZ coil, LED

Schneider Electric

RXM4AB3F7

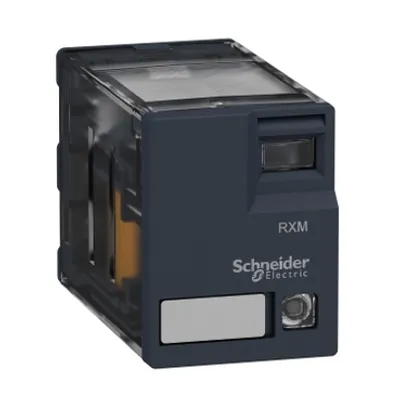

Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED

Schneider Electric

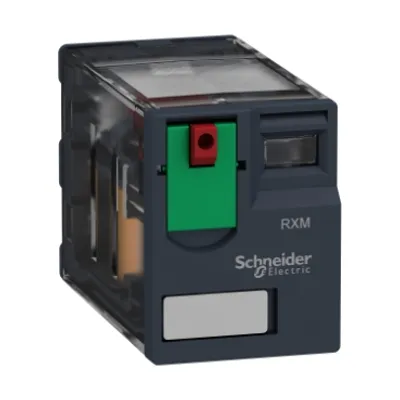

RXM2AB1U7

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 240 V AC

Schneider Electric

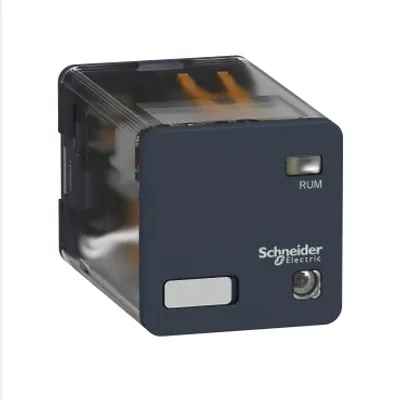

RUMF33FD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, flat (faston) terminals, 110V DC

Schneider Electric

RUMF33F7

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, flat terminals, 120V AC

Schneider Electric

RUMF32F7

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, flat terminals, 120V AC

Schneider Electric

RUMF32BD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, flat terminals, 24V DC

Schneider Electric

RUMC32P7

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 230V AC

Schneider Electric

RUMC32JD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 12V DC

Schneider Electric

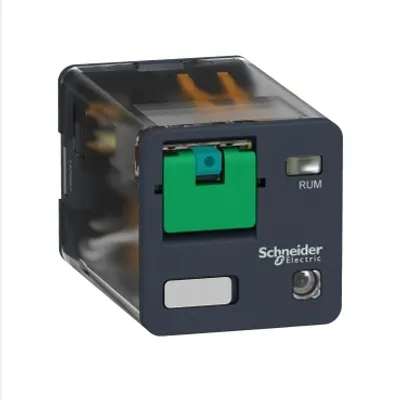

RUMC32GD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test button, 125V DC

Schneider Electric

RUMC32FD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 110V DC

Schneider Electric

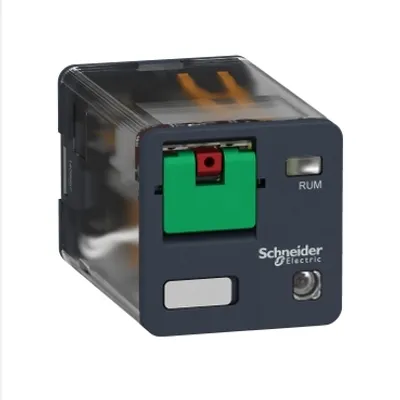

RUMC32F7

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 120V AC

Schneider Electric

RUMC32ED

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test button, 48V DC

Schneider Electric

RUMC32BD

Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC

Compare Harmony Electromechanical Relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	[Uimp] rated impulse withstand voltage	Standards	[Uc] control circuit voltage	Rated operational voltage limits	Average resistance
RXZE2M4N	3.6 kV	IEC 61984	—	—	—
RXZE2M2N	3.6 kV	IEC 61984	—	—	—
RXM2AB1HD	4 kV during 1.2/50 µs	IEC 61810-1	30 V DC	24...33 V DC	1000 Ohm at 20 °C +/- 10 %
RXM2AB1GD	4 kV during 1.2/50 µs	IEC 61810-1	125 V DC	100...138 V DC	17360 Ohm at 20 °C +/- 10 %
RXM2AB1G7	4 kV during 1.2/50 µs	IEC 61810-1	110 V AC 50/60 Hz	88...121 V AC	3720 Ohm at 20 °C +/- 15 %
RPM23F7	4 kV during 1.2/50 µs	CSA C22.2 No 14, UL 508, IEC 61810-1	120 V AC 50/60 Hz	96...132 V AC	—
RXM4GB2MD	2.5 kV during 1.2/50 µs	IEC 61810-1, UL 508, CSA C22.2 No 14	220 V DC	176...242 V DC	48400 Ohm at 20 °C +/- 10 %
RXM2AB1ND	4 kV during 1.2/50 µs	IEC 61810-1	60 V DC	48...66 V DC	4000 Ohm at 20 °C +/- 10 %
RXM2AB1MD	4 kV during 1.2/50 µs	IEC 61810-1	220 V DC	176...242 V DC	48400 Ohm at 20 °C +/- 10 %
RPM23BD	4 kV during 1.2/50 µs	UL 508, CSA C22.2 No 14, IEC 61810-1	24 V DC	19.2...26.4 V DC	—
RPM23B7	4 kV during 1.2/50 µs	CSA C22.2 No 14, UL 508, IEC 61810-1	24 V AC 50/60 Hz	19.2...26.4 V AC	—
RXM4AB3F7	2.5 kV during 1.2/50 µs	UL 508, CSA C22.2 No 14, IEC 61810-1	120 V AC 50/60 Hz	96...132 V AC	4430 Ohm at 20 °C +/- 15 %
RXM2AB1U7	4 kV during 1.2/50 µs	IEC 61810-1	240 V AC 50/60 Hz	192...264 V AC	17720 Ohm at 20 °C +/- 15 %
RUMF33FD	4 kV (1.2/50 µs)	IEC 61810-1, CSA C22.2 No 14, UL 508	110 V DC	88...121 V DC	7300 Ohm at 20 °C +/- 15 %
RUMF33F7	4 kV (1.2/50 µs)	UL 508, CSA C22.2 No 14, IEC 61810-1	120 V AC 50/60 Hz	96...132 V AC	1700 Ohm at 20 °C +/- 15 %
RUMF32F7	4 kV (1.2/50 µs)	CSA C22.2 No 14, UL 508, IEC 61810-1	120 V AC 50/60 Hz	96...132 V AC	1700 Ohm at 20 °C +/- 15 %
RUMF32BD	4 kV (1.2/50 µs)	CSA C22.2 No 14, UL 508, IEC 61810-1	24 V DC	19.2...26.4 V DC	470 Ohm at 20 °C +/- 15 %
RUMC32P7	4 kV (1.2/50 µs)	UL 508, IEC 61810-1, CSA C22.2 No 14	230 V AC 50/60 Hz	184...253 V AC	6800 Ohm at 20 °C +/- 15 %
RUMC32JD	4 kV (1.2/50 µs)	IEC 61810-1, UL 508, CSA C22.2 No 14	12 V DC	9.6...13.2 V DC	120 Ohm at 20 °C +/- 15 %
RUMC32GD	4 kV (1.2/50 µs)	CSA C22.2 No 14, UL 508, IEC 61810-1	125 V DC	100...137.5 V DC	9766 Ohm at 20 °C +/- 10 %
RUMC32FD	4 kV (1.2/50 µs)	CSA C22.2 No 14, UL 508, IEC 61810-1	110 V DC	88...121 V DC	7300 Ohm at 20 °C +/- 15 %
RUMC32F7	4 kV (1.2/50 µs)	IEC 61810-1, CSA C22.2 No 14, UL 508	120 V AC 50/60 Hz	96...132 V AC	1700 Ohm at 20 °C +/- 15 %
RUMC32ED	4 kV (1.2/50 µs)	CSA C22.2 No 14, UL 508, IEC 61810-1	48 V DC	38.4...52.8 V DC	1800 Ohm at 20 °C +/- 15 %
RUMC32BD	4 kV (1.2/50 µs)	IEC 61810-1, CSA C22.2 No 14, UL 508	24 V DC	19.2...26.4 V DC	470 Ohm at 20 °C +/- 15 %

Common to all listed parts

Range of product	Harmony Electromechanical Relays
Ambient air temperature for storage	-40…85 °C
