H-System (Termination Board Mounting) Parts

Pepperl Fuchs

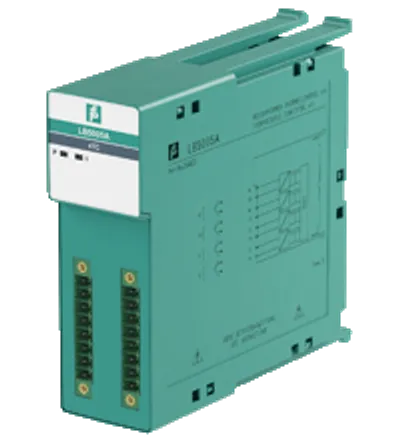

LB5005A

Thermocouple Converter

Pepperl Fuchs

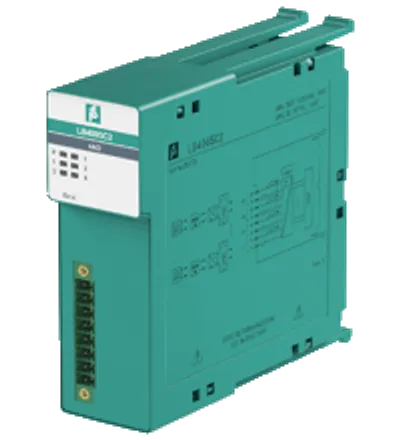

LB4005C2

HART Output Isolator with Shutdown Input

Pepperl Fuchs

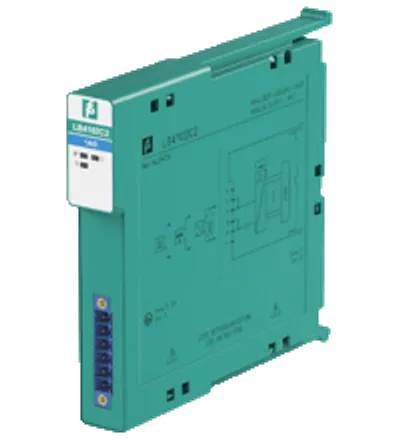

LB4102C2

HART Output Isolator with Shutdown Input

Pepperl Fuchs

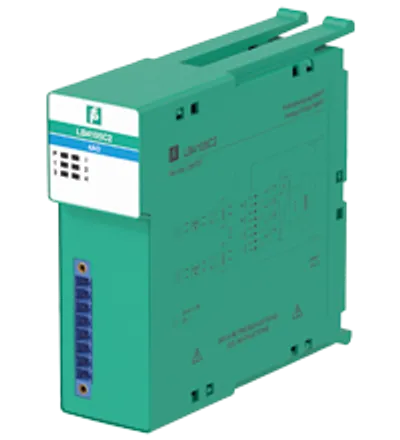

LB4105C2

HART Output Isolator with Shutdown Input

Pepperl Fuchs

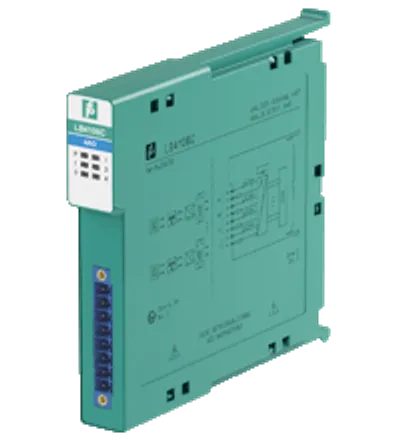

LB4106C

HART Output Isolator with Shutdown Input

Pepperl Fuchs

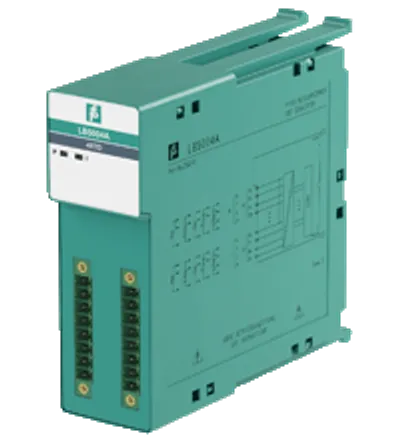

LB5004A

RTD Converter

Pepperl Fuchs

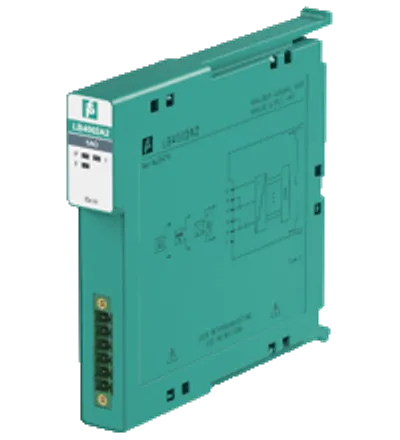

LB4002A2

HART Output Isolator

Pepperl Fuchs

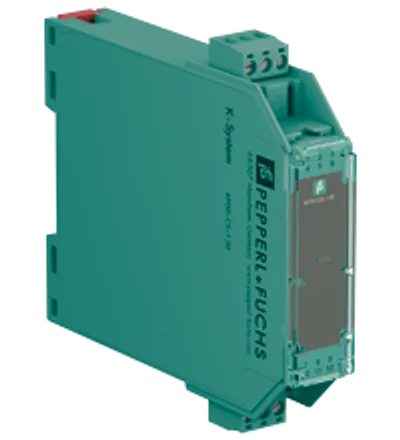

KFD0-CS-1.50

Repeater

Pepperl Fuchs

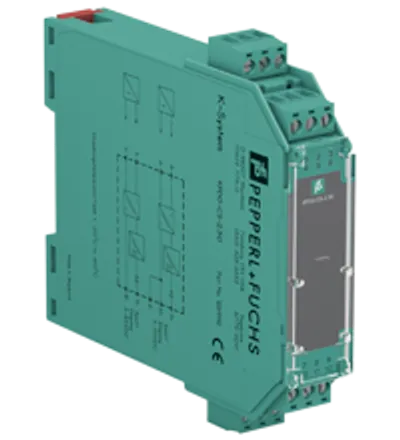

KFD0-CS-2.50

Repeater

Pepperl Fuchs

KFD0-CS-Ex1.51P

Current Driver/Repeater

Pepperl Fuchs

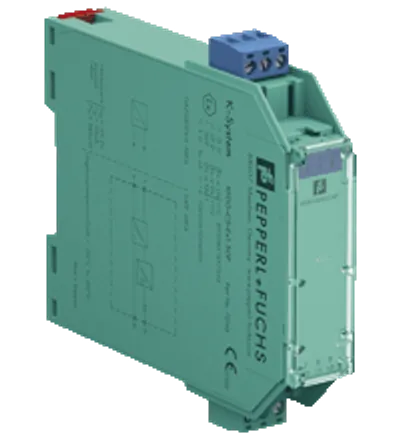

KFD0-CS-Ex1.50P

Repeater

Pepperl Fuchs

KFD0-CS-Ex2.51P

Current Driver/Repeater

Pepperl Fuchs

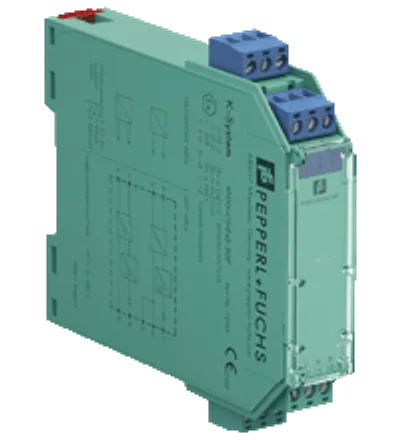

KFD0-CS-Ex2.50P

Repeater

Pepperl Fuchs

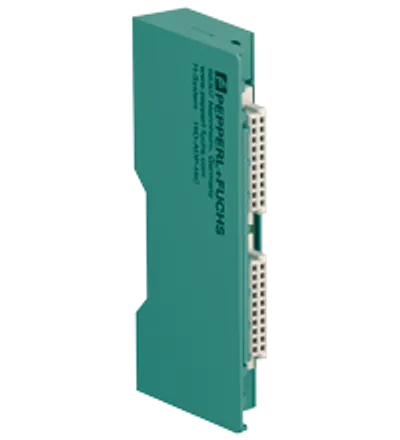

HiD-ADP-HiC

Adapter for HiD Termination Board

Pepperl Fuchs

HiD-ADP-HiC-DO

Adapter Set for HiD Termination Board

Pepperl Fuchs

HiD-ADP-HiC-DI

Adapter Set for HiD Termination Board

Pepperl Fuchs

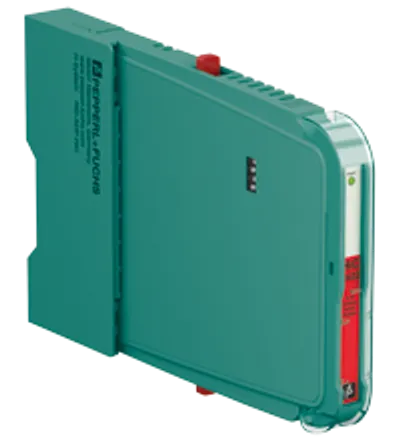

HiD-ADP-HiC-AIO

Adapter Set for HiD Termination Board

Pepperl Fuchs

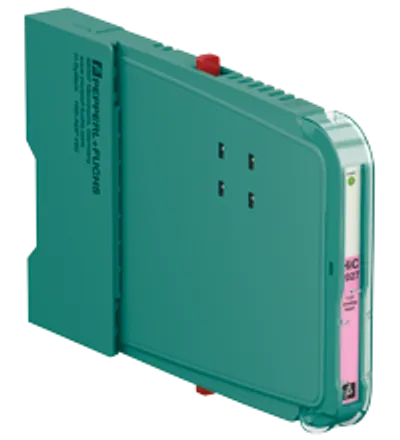

HiD-ADP-HiC-AI

Adapter Set for HiD Termination Board

Pepperl Fuchs

H-CJC-Pt100

Resistance Thermometer for Cold Junction Compensation

Pepperl Fuchs

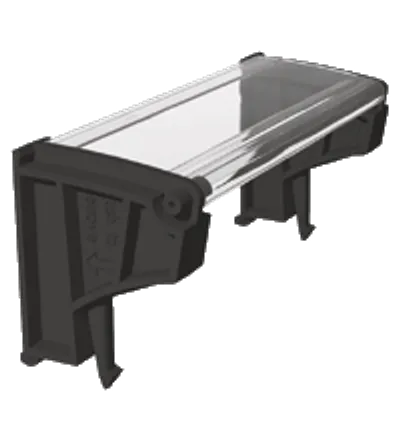

HiALC-HiCTB-SET-108

Label Carrier

Pepperl Fuchs

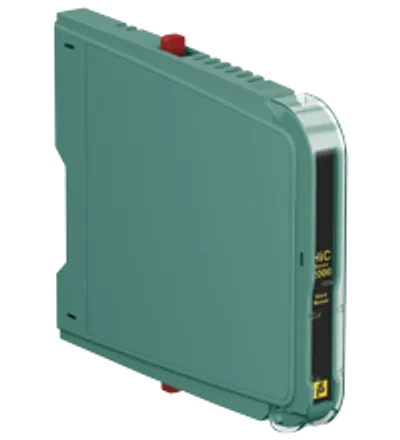

HiC2000 Blank

Place Holder Barrier

Pepperl Fuchs

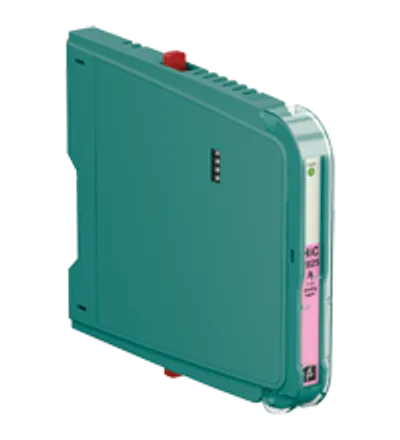

HiC2025A

SMART Transmitter Power Supply

Pepperl Fuchs

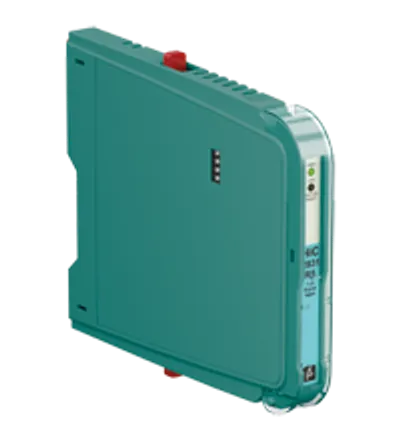

HiC2831R5

Switch Amplifier

Pepperl Fuchs

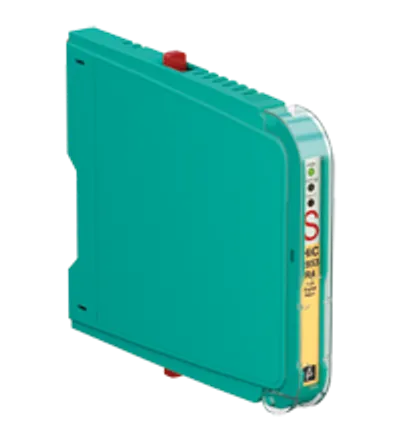

HiC2853R4

Switch Amplifier

Compare H-System (Termination Board Mounting)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Order code (Pepperl+Fuchs part number)	Connection	Degree of protection	Mass	IECEx approval: IECEx certificate
LB5005A	254800	backplane bus	IEC 60529	approx. 150 g	IECEx BVS 09.0037X
LB4005C2	254720	backplane bus	IEC 60529:2000	approx. 150 g	IECEx BVS 11.0068X
LB4102C2	254724	backplane bus	IEC 60529:2000	approx. 90 g	IECEx BVS 11.0068X
LB4105C2	254727	backplane bus	IEC 60529:2000	approx. 150 g	IECEx BVS 11.0068X
LB4106C	254730	backplane bus	IEC 60529:2000	approx. 90 g	IECEx BVS 11.0068X
LB5004A	254741	backplane bus	IEC 60529	approx. 150 g	IECEx BVS 09.0037X
LB4002A2	254718	backplane bus	IEC 60529:2000	approx. 90 g	IECEx BVS 11.0068X
KFD0-CS-1.50	294965	terminals 12-, 11+	IEC 60529:2001	approx. 100 g	—
KFD0-CS-2.50	294986	terminals 12-, 11+; 8-, 10-, 9+	IEC 60529:2001	approx. 100 g	—
KFD0-CS-Ex1.51P	294980	terminals 12-, 11+	IEC 60529:2001	approx. 100 g	IECEx BAS 05.0004X IECEx CML 19.0040X
KFD0-CS-Ex1.50P	294964	terminals 12-, 11+	IEC 60529:2001	approx. 100 g	IECEx BAS 05.0004X IECEx CML 19.0040X
KFD0-CS-Ex2.51P	294987	terminals 12-, 11+; 8-, 10-, 9+	IEC 60529:2001	approx. 100 g	IECEx BAS 05.0004X IECEx CML 19.0040X
KFD0-CS-Ex2.50P	294983	terminals 12-, 11+; 8-, 10-, 9+	IEC 60529:2001	approx. 100 g	IECEx BAS 05.0004X IECEx CML 19.0040X
HiD-ADP-HiC	70188967	see datasheet of isolated barrier	IEC 60529:2001	approx. 50 g	—
HiD-ADP-HiC-DO	70188963	—	IEC 60529:2001	approx. 160 g	see datasheet of isolated barrier
HiD-ADP-HiC-DI	70188962	—	IEC 60529	approx. 200 g	see datasheet of isolated barrier
HiD-ADP-HiC-AIO	70188965	—	IEC 60529	approx. 200 g	see datasheet of isolated barrier
HiD-ADP-HiC-AI	70188964	—	IEC 60529:2001	approx. 200 g	see datasheet of isolated barrier
H-CJC-Pt100	268784	—	—	approx. 20 g	—
HiALC-HiCTB-SET-108	206726	—	—	approx. 50 g	—
HiC2000 Blank	220745	—	IEC 60529	approx. 100 g	—
HiC2025A	70150943	SL1: 1a, 1b(-); 2a, 2b(+)	IEC 60529:2001	approx. 100 g	IECEx CES 06.0002X
HiC2831R5	70144534	SL1: 1a(-), 1b(-); 2a(+), 2b(+)	IEC 60529:2001	approx. 90 g	IECEx BVS 11.0040 IECEx KIWA 15.0019X
HiC2853R4	70142832	SL1: 1a(-), 1b(-); 2a(+), 2b(+)	IEC 60529:2001	approx. 105 g	IECEx BAS 07.0097X

Common to all listed parts

Lifecycle

Active (current Pepperl+Fuchs product)
