PanelSeT CRN Parts
Schneider Electric

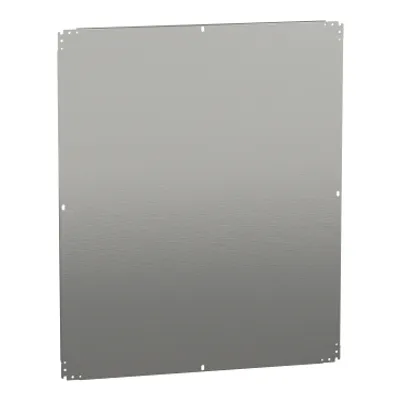

NSYMM1210Plain mounting plate H1200xW1000mm Galvanised sheet steel Reversible dimension
Schneider Electric

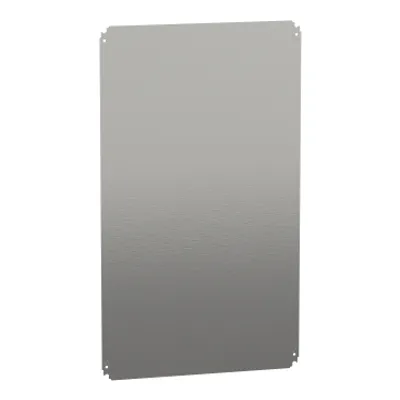

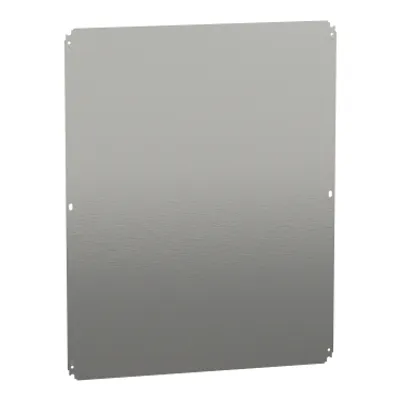

NSYMM108Plain mounting plate H1000xW800mm Galvanised sheet steel Reversible dimension
Schneider Electric
NSYMF88Microperforated mounting plate H800xW800 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

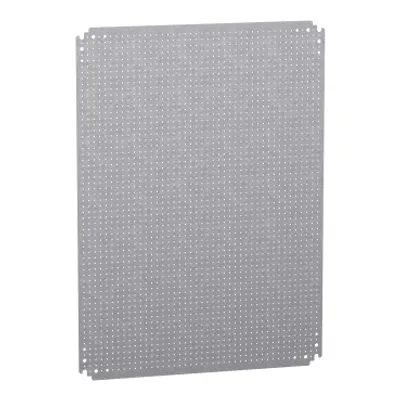

NSYMF86Microperforated mounting plate H800xW600 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

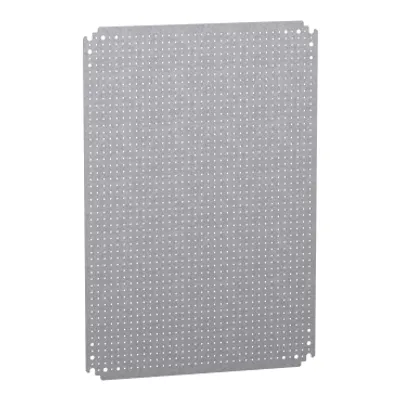

NSYMF75Microperforated mounting plate H700xW500 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

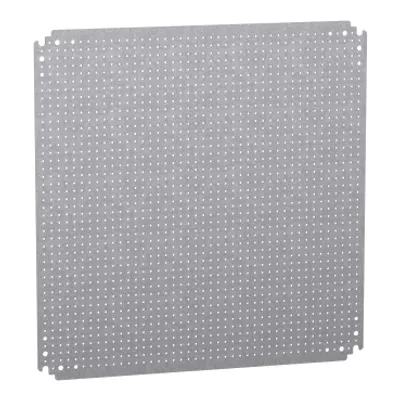

NSYMF66Microperforated mounting plate H600xW600 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

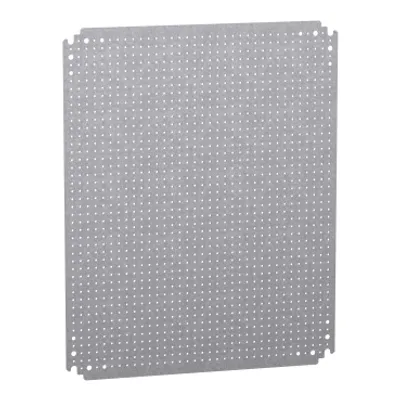

NSYMF65Microperforated mounting plate H600xW500 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

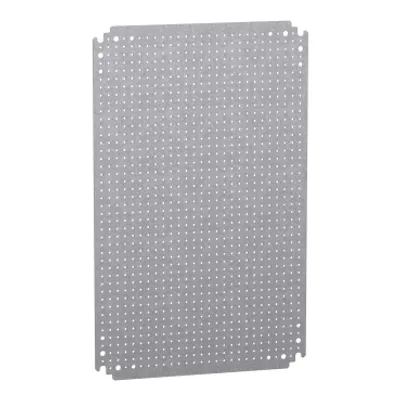

NSYMF64Microperforated mounting plate H600xW400 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

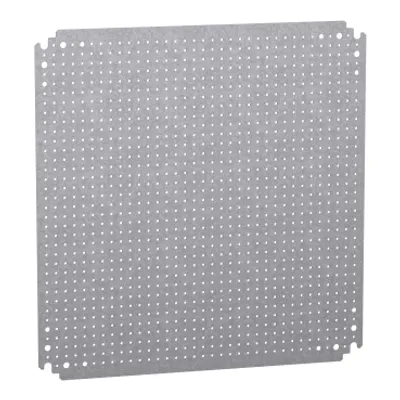

NSYMF55Microperforated mounting plate H500xW500 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

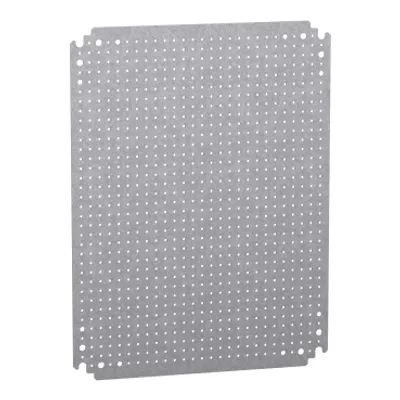

NSYMF54Microperforated mounting plate H500xW400 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

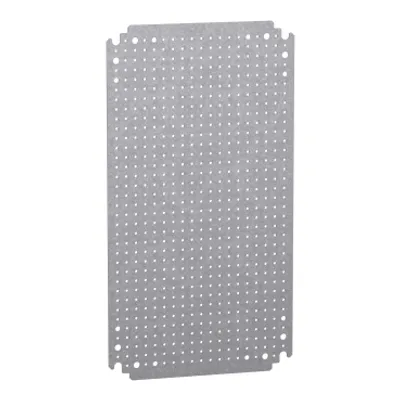

NSYMF53Microperforated mounting plate H500xW300 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

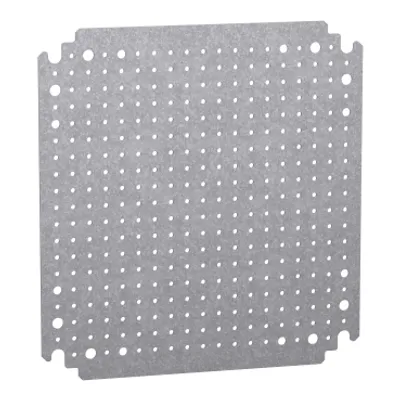

NSYMF44Microperforated mounting plate H400xW400 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

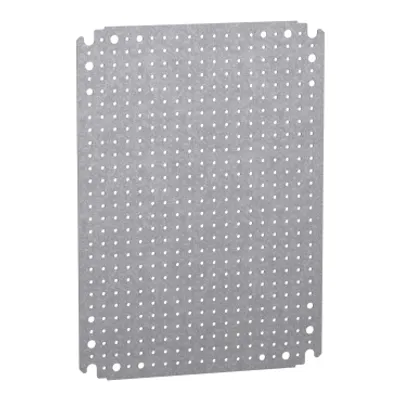

NSYMF43Microperforated mounting plate H300xW400 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric
NSYMF33Microperforated mounting plate H300xW300 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

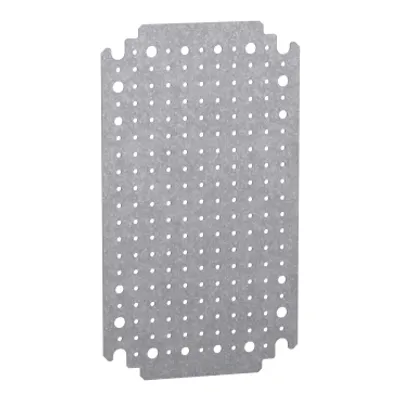

NSYMF32Microperforated mounting plate H300xW200 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

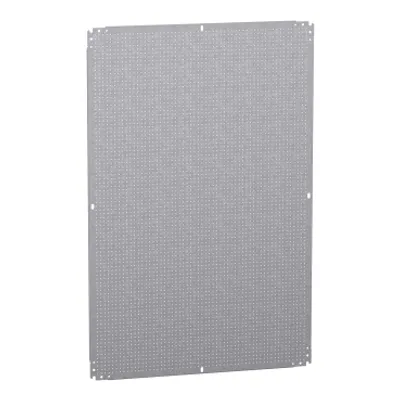

NSYMF128Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

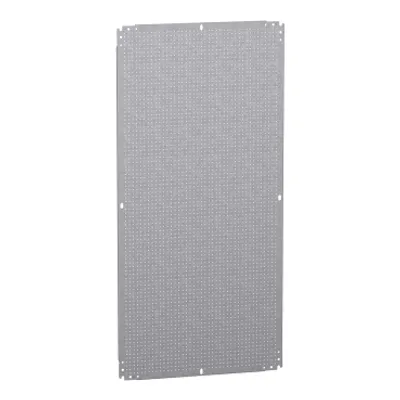

NSYMF126Microperforated mounting plate H1200xW600 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

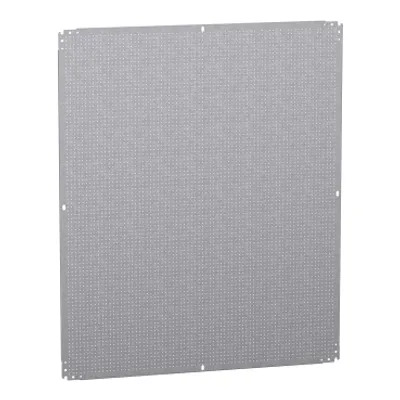

NSYMF1210Microperforated mounting plate H1200xW1000 w/holes diam 3,6mm on 12,5mm pitch
Compare PanelSeT CRN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mounting location | Permanent permissible load | Height | Width | Net weight |
|---|---|---|---|---|---|

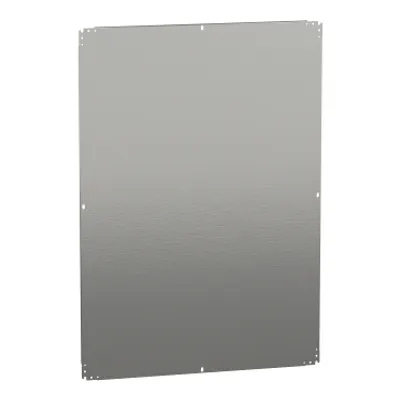

| NSYMM1410 | Direct fixing on backstuds, Step slide | 180 kg | 1350 mm | 950 mm | 25.677 kg |

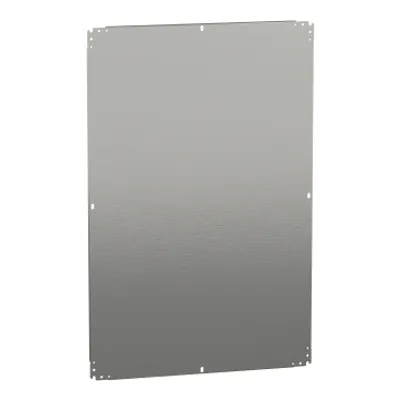

| NSYMM128 | Direct fixing on backstuds, Step slide | 180 kg | 1150 mm | 750 mm | 17.325 kg |

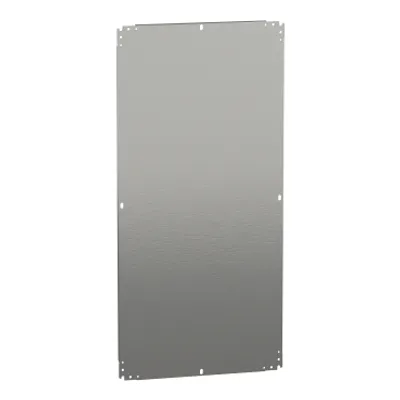

| NSYMM126 | Direct fixing on backstuds, Step slide | 180 kg | 1150 mm | 550 mm | 12.767 kg |

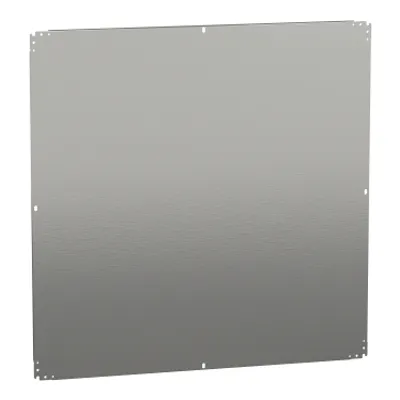

| NSYMM1212 | Step slide, Direct fixing on backstuds | 180 kg | 1150 mm | 1150 mm | 26.442 kg |
| NSYMM1210 | Step slide, Direct fixing on backstuds | 180 kg | 1150 mm | 950 mm | 21.884 kg |
| NSYMM108 | Direct fixing on backstuds, Step slide | 150 kg | 950 mm | 750 mm | 13.96 kg |
| NSYMM106 | Direct fixing on backstuds, Step slide | 150 kg | 950 mm | 550 mm | 10.244 kg |

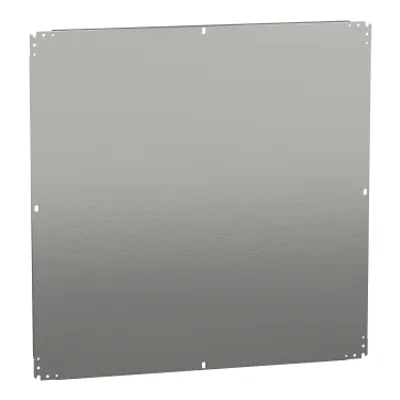

| NSYMM1010 | Step slide, Direct fixing on backstuds | 180 kg | 950 mm | 950 mm | 18.1 kg |
| NSYMF88 | Direct fixing on backstuds, Step slide | 150 kg | 765 mm | 750 mm | 10.36 kg |
| NSYMF86 | Step slide, Direct fixing on backstuds | 135 kg | 765 mm | 550 mm | 7.8 kg |
| NSYMF75 | Step slide, Direct fixing on backstuds | 135 kg | 665 mm | 450 mm | 4.4 kg |
| NSYMF66 | Step slide, Direct fixing on backstuds | 135 kg | 565 mm | 550 mm | 4.4 kg |
| NSYMF65 | Direct fixing on backstuds, Step slide | 90 kg | 550 mm | 450 mm | 3.7 kg |
| NSYMF64 | Direct fixing on backstuds, Step slide | 90 kg | 550 mm | 365 mm | 2.92 kg |
| NSYMF55 | Direct fixing on backstuds, Step slide | 90 kg | 465 mm | 450 mm | 3.12 kg |
| NSYMF54 | Step slide, Direct fixing on backstuds | 90 kg | 465 mm | 350 mm | 2.4 kg |
| NSYMF53 | Step slide, Direct fixing on backstuds | 60 kg | 450 mm | 250 mm | 1.68 kg |
| NSYMF44 | Direct fixing on backstuds, Step slide | 60 kg | 365 mm | 350 mm | 1.9 kg |
| NSYMF43 | Step slide, Direct fixing on backstuds | 60 kg | 250 mm | 350 mm | 1.36 kg |
| NSYMF33 | Direct fixing on backstuds, Step slide | 60 kg | 265 mm | 250 mm | 0.96 kg |
| NSYMF32 | Direct fixing on backstuds, Step slide | 60 kg | 265 mm | 150 mm | 0.56 kg |
| NSYMF128 | Step slide, Direct fixing on backstuds | 180 kg | 1165 mm | 765 mm | 17.064 kg |
| NSYMF126 | Direct fixing on backstuds, Step slide | 180 kg | 1165 mm | 565 mm | 12.578 kg |
| NSYMF1210 | Direct fixing on backstuds, Step slide | 180 kg | 1165 mm | 965 mm | 21.551 kg |
Common to all listed parts
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
