PanelSeT CRN Parts

Schneider Electric

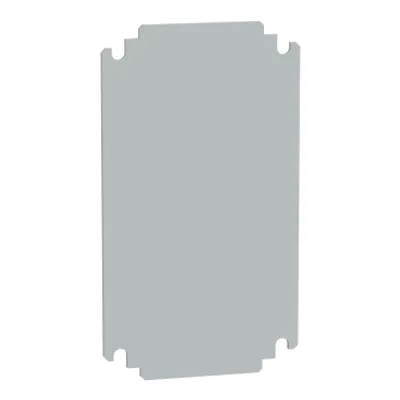

NSYMPP32

Insulating mounting plate for enclosure H300xW200mm made of polyester

Schneider Electric

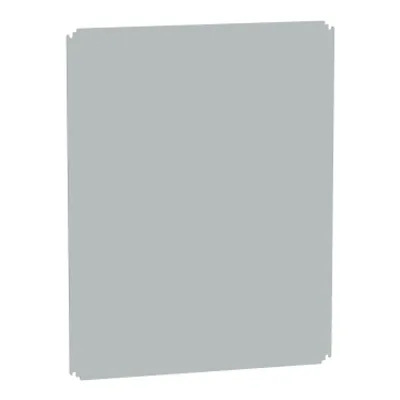

NSYMPP108

Insulating mounting plate for enclosure H1000xW800mm made of polyester

Schneider Electric

NSYMM88

Plain mounting plate H800xW800mm made of galvanised sheet steel

Schneider Electric

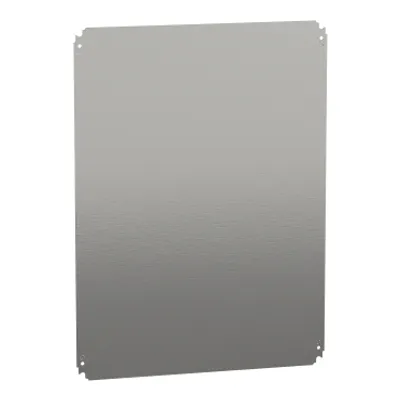

NSYMM86

Plain mounting plate H800xW600mm made of galvanised sheet steel

Schneider Electric

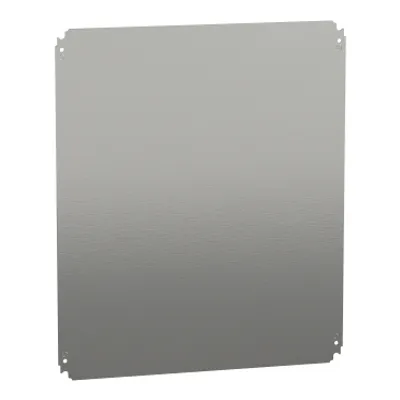

NSYMM76

Plain mounting plate H700xW600mm made of galvanised sheet steel

Schneider Electric

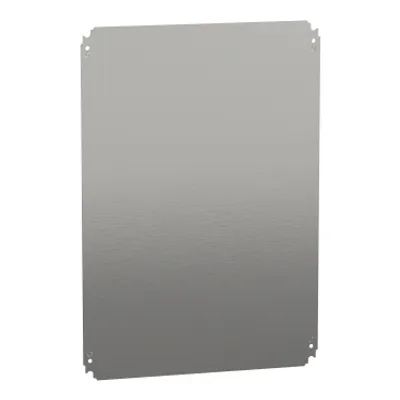

NSYMM75

Plain mounting plate H700xW500mm made of galvanised sheet steel

Schneider Electric

NSYMM66

Plain mounting plate H600xW600mm made of galvanised sheet steel

Schneider Electric

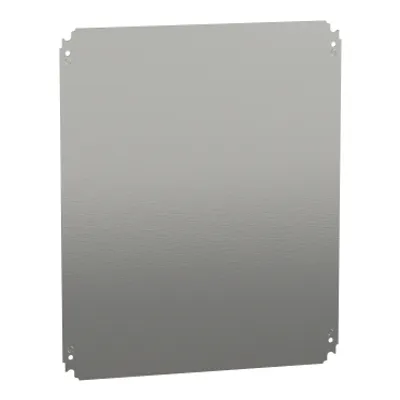

NSYMM65

Plain mounting plate H500xW600mm made of galvanised sheet steel

Schneider Electric

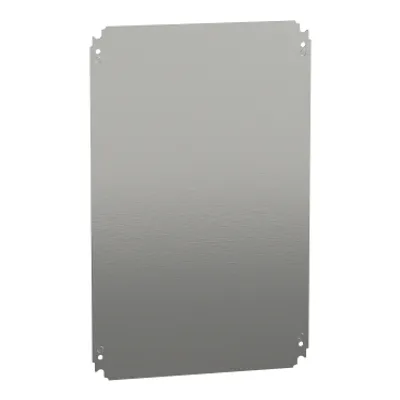

NSYMM64

Plain mounting plate H600xW400mm made of galvanised sheet steel

Schneider Electric

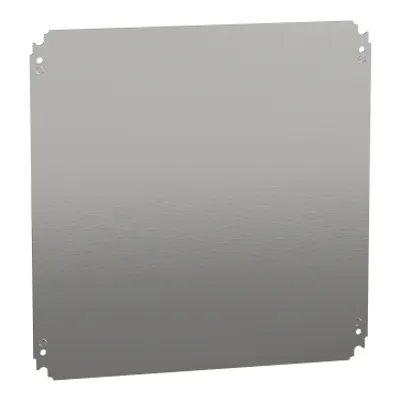

NSYMM55

Plain mounting plate H500xW500mm made of galvanised sheet steel

Schneider Electric

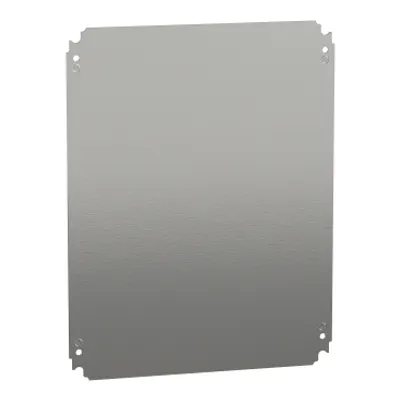

NSYMM54

Plain mounting plate H500xW400mm made of galvanised sheet steel

Schneider Electric

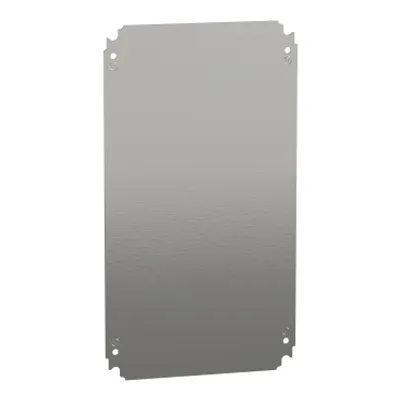

NSYMM53

Plain mounting plate H500xW300mm made of galvanised sheet steel

Schneider Electric

NSYMM48

Plain mounting plate H400xW800mm made of galvanised sheet steel

Schneider Electric

NSYMM44

Plain mounting plate H400xW400mm made of galvanised sheet steel

Schneider Electric

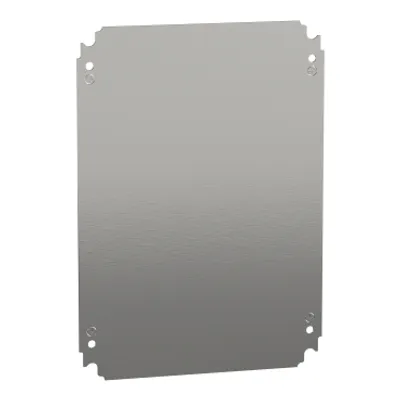

NSYMM43

Plain mounting plate H400xW300mm made of galvanised sheet steel

Schneider Electric

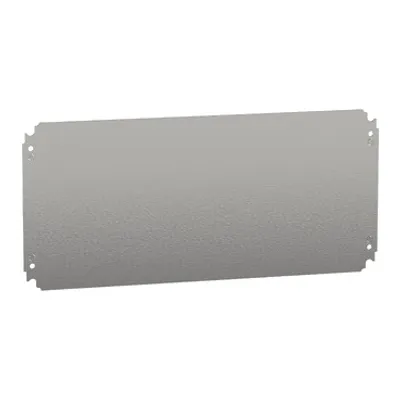

NSYMM36

Plain mounting plate H300xW600mm made of galvanised sheet steel

Schneider Electric

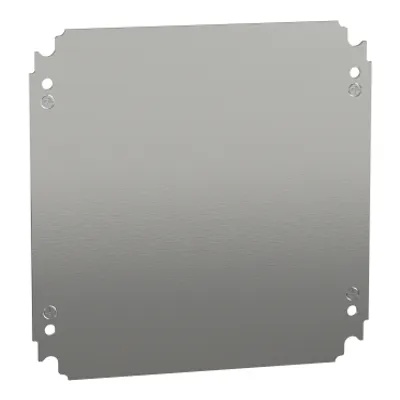

NSYMM33

Plain mounting plate H300xW300mm made of galvanised sheet steel

Schneider Electric

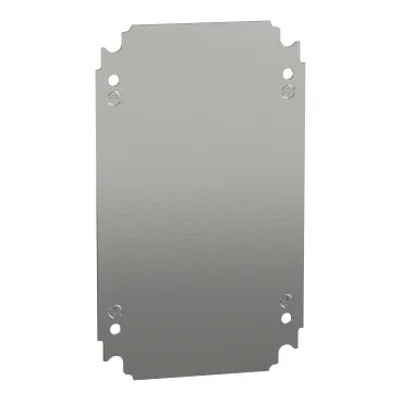

NSYMM32

Plain mounting plate H300xW200mm made of galvanised sheet steel

Schneider Electric

NSYMM3045

Plain mounting plate H300xW450mm made of galvanised sheet steel

Schneider Electric

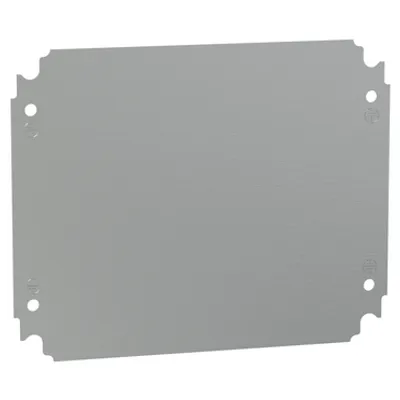

NSYMM3025

Plain mounting plate H300xW250mm made of galvanised sheet steel

Schneider Electric

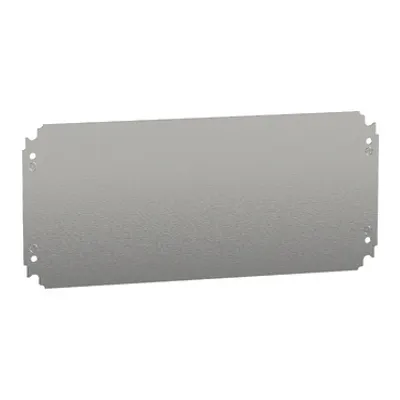

NSYMM2550

Plain mounting plate H250xW500mm made of galvanised sheet steel

Schneider Electric

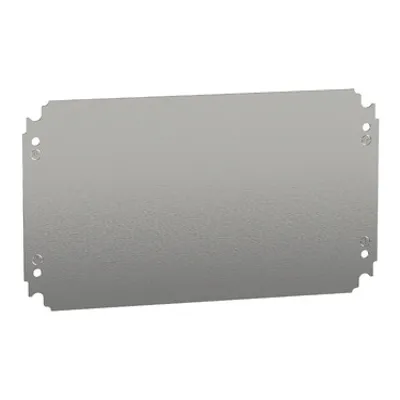

NSYMM2540

Plain mounting plate H250xW400mm made of galvanised sheet steel

Schneider Electric

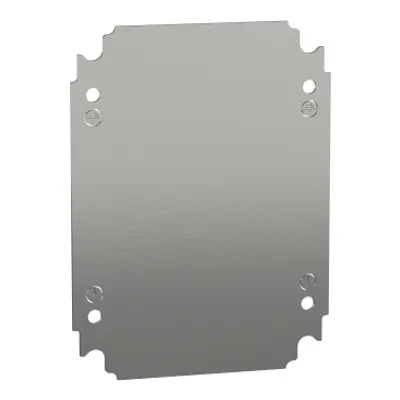

NSYMM2520

Plain mounting plate H250xW200mm made of galvanised sheet steel

Schneider Electric

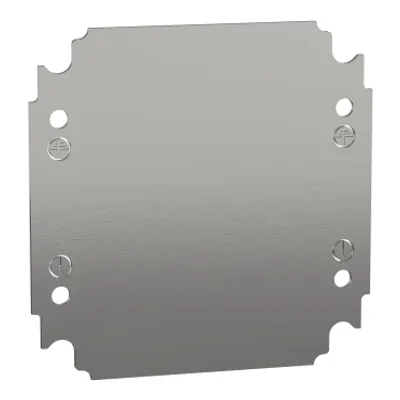

NSYMM22

Plain mounting plate H200xW200mm made of galvanised sheet steel

Compare PanelSeT CRN

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Mounting location	Material	Permanent permissible load	thickness	Net weight
NSYMPP32	Step slide, Direct fixing on backstuds	Fibreglass reinforced polyester	15 kg	4 mm	3 kg
NSYMPP108	Step slide, Direct fixing on backstuds	Fibreglass reinforced polyester	200 kg	5 mm	65 kg
NSYMM88	Direct fixing on backstuds, Step slide	Galvanised steel	150 kg	2.5 mm	11.05 kg
NSYMM86	Step slide, Direct fixing on backstuds	Galvanised steel	135 kg	2.5 mm	8.07 kg
NSYMM76	Direct fixing on backstuds, Step slide	Galvanised steel	135 kg	1.8 mm	5.033 kg
NSYMM75	Step slide, Direct fixing on backstuds	Galvanised steel	135 kg	1.8 mm	4.288 kg
NSYMM66	Step slide, Direct fixing on backstuds	Galvanised steel	135 kg	1.8 mm	4.375 kg
NSYMM65	Direct fixing on backstuds, Step slide	Galvanised steel	90 kg	1.8 mm	3.6 kg
NSYMM64	Direct fixing on backstuds, Step slide	Galvanised steel	90 kg	1.8 mm	2.86 kg
NSYMM55	Direct fixing on backstuds, Step slide	Galvanised steel	90 kg	1.8 mm	2.944 kg
NSYMM54	Direct fixing on backstuds, Step slide	Galvanised steel	90 kg	1.8 mm	2.27 kg
NSYMM53	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	1.616 kg
NSYMM48	Step slide, Direct fixing on backstuds	Galvanised steel	90 kg	2.5 mm	5.144 kg
NSYMM44	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	1.72 kg
NSYMM43	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	1.28 kg
NSYMM36	Direct fixing on backstuds, Step slide	Galvanised steel	60 kg	1.8 mm	1.93 kg
NSYMM33	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	0.91 kg
NSYMM32	Direct fixing on backstuds, Step slide	Galvanised steel	60 kg	1.8 mm	0.52 kg
NSYMM3045	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	1.568 kg
NSYMM3025	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	0.706 kg
NSYMM2550	Direct fixing on backstuds, Step slide	Galvanised steel	60 kg	1.8 mm	1.3 kg
NSYMM2540	Step slide, Direct fixing on backstuds	Galvanised steel	60 kg	1.8 mm	1.179 kg
NSYMM2520	Direct fixing on backstuds, Step slide	Galvanised steel	40 kg	1.8 mm	0.448 kg
NSYMM22	Step slide, Direct fixing on backstuds	Galvanised steel	40 kg	1.8 mm	0.328 kg

Common to all listed parts

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Mounting plate
Device application	Multi-purpose
Mounting plate description	Plain
Range compatibility	PanelSeT S3D, PanelSeT CRN, PanelSeT PLM
Quantity per set	Set of 1
Fixing mode	Screwed on backstuds - screw type M8, By fixing element
