NSYMF33Microperforated mounting plate H300xW300 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric NSYMF54
Microperforated mounting plate H500xW400 w/holes diam 3,6mm on 12,5mm pitch
- MPN
- NSYMF54
- EAN
- 3606480183065
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMF54?

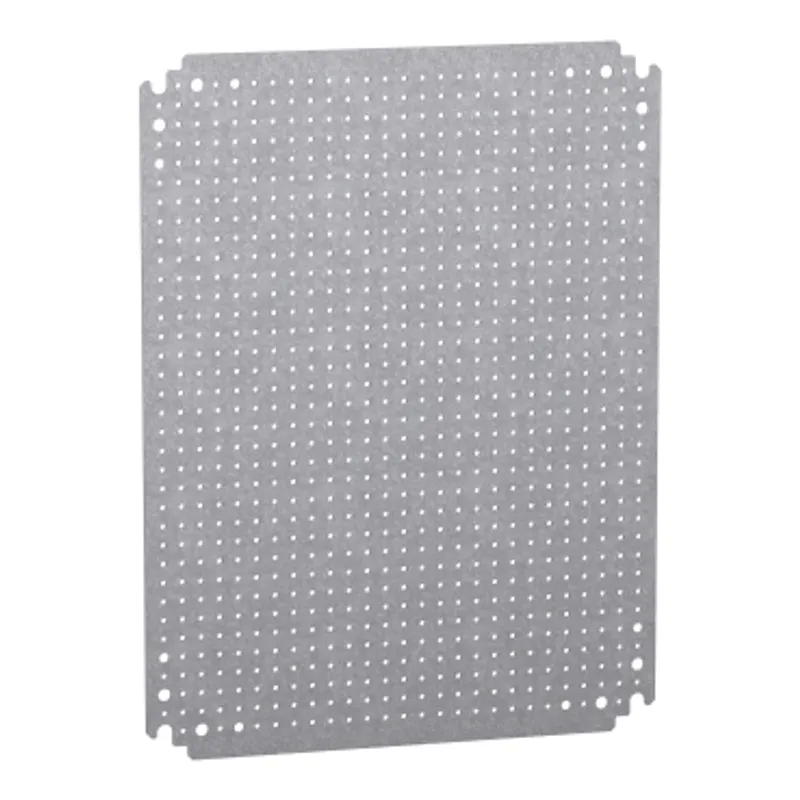

Microperforated mounting plate for Spacial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 500 mm x (W) 400 mm. Dimensions are reversible : it can be installed in enclosure with inverted dimensions. This mounting plate have 3,6 mm diameter holes with a 12,5 mm pitch which allow multi-purpose mounting accessory. It can be fixed using step slide mounting location or by direct fixing on backstuds (M8 screws). Made of galvanised steel, making it durable and resistant. The permanent permissible load is 90 kg. This product is qualified as a green premium, with minimal use of hazardous substances.
Specifications
Specifications

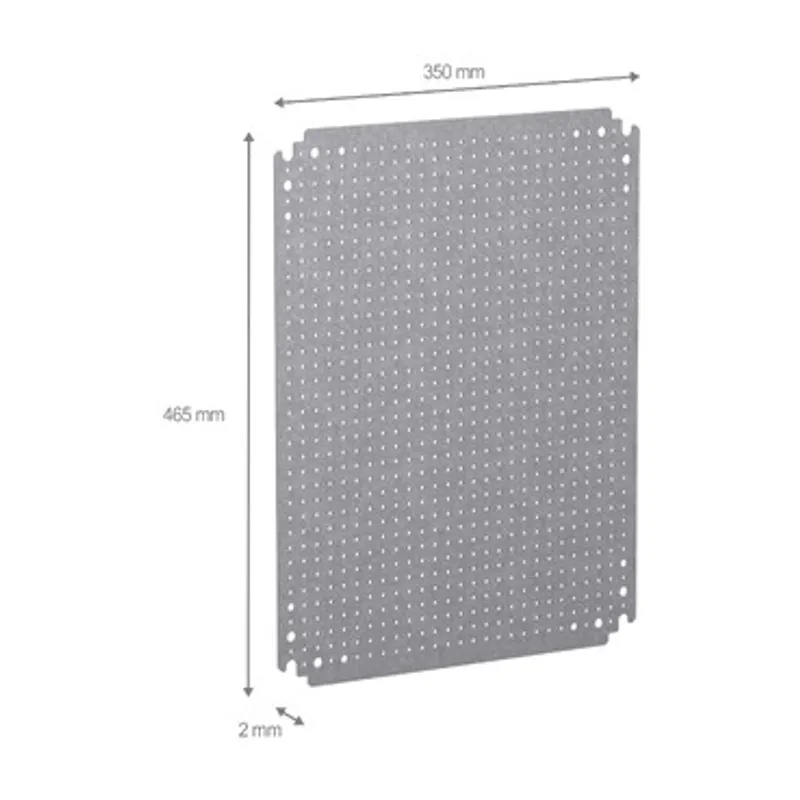

| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 500 mm W: 400 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 90 kg |
| Height | 465 mm |
| Width | 350 mm |
| Depth | 125 mm |
| thickness | 1.8 mm |
| Net weight | 2.4 kg |
Packaging
| Package 1 | 1 PCE, 47.000 cm × 35.000 cm × 0.300 cm (L × W × H), 2.400 kg |
| Package 2 | 200 P12, 120.000 cm × 80.000 cm × 43.000 cm (L × W × H), 500.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMF54: frequently asked questions
When can NSYMF54 be shipped?
NSYMF54 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMF54 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMF54 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMF54, subject to availability and destination.
