Schneider Electric

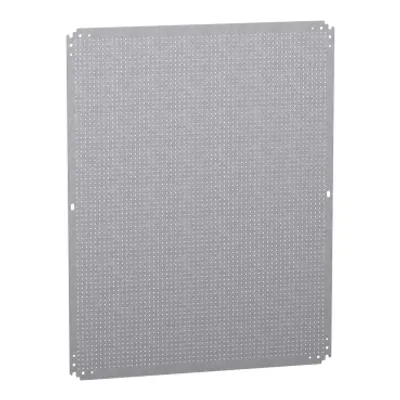

NSYMF108Microperforated mounting plate H1000xW800 w/holes diam 3,6mm on 12,5mm pitch
PanelSeT CRN Parts
Schneider Electric

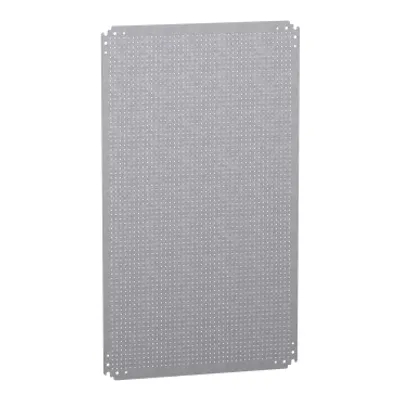

NSYMF106Microperforated mounting plate H1000xW600 w/holes diam 3,6mm on 12,5mm pitch
Schneider Electric

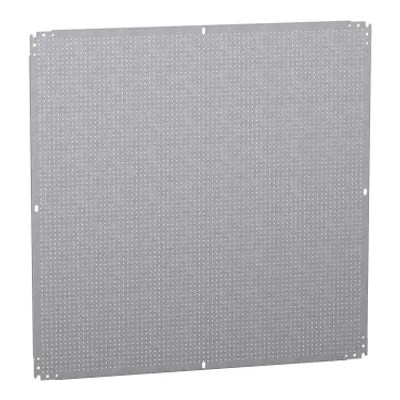

NSYMF1010Microperforated mounting plate H1000xW1000 w/holes diam 3,6mm on 12,5mm pitch
Compare PanelSeT CRN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accessory / separate part category | Product or component type | Mounting location | Height | Width |
|---|---|---|---|---|---|
| NSYMF108 | Mounting accessory | Mounting plate | Step slide, Direct fixing on backstuds | 965 mm | 750 mm |
| NSYMF106 | Mounting accessory | Mounting plate | Step slide, Direct fixing on backstuds | 965 mm | 550 mm |
| NSYMF1010 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 950 mm | 950 mm |

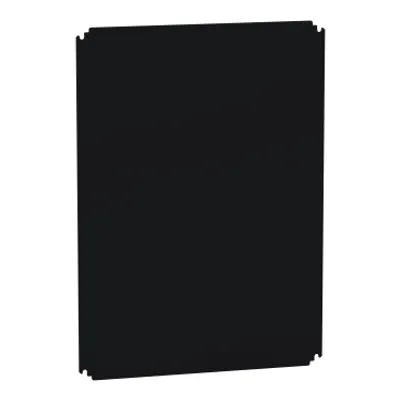

| NSYMB86 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 765 mm | 550 mm |

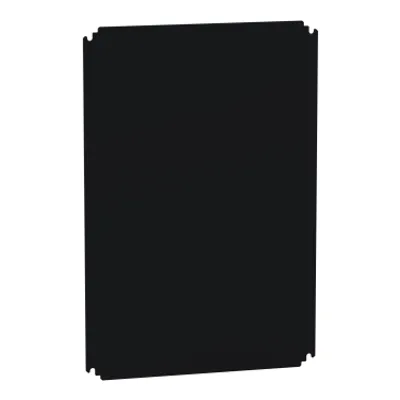

| NSYMB75 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 665 mm | 450 mm |

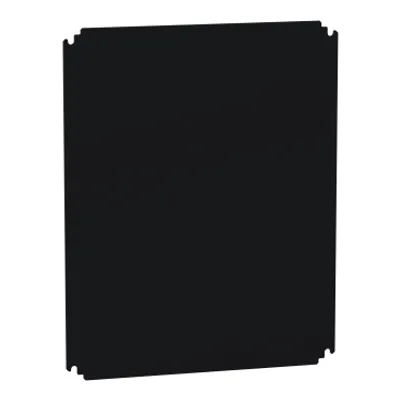

| NSYMB65 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 565 mm | 450 mm |

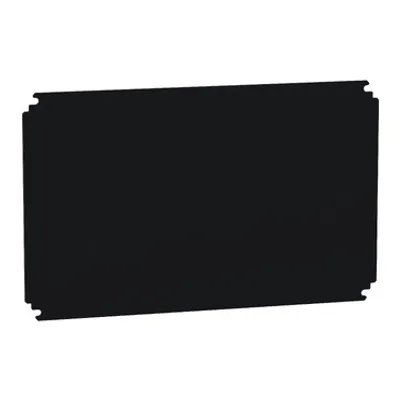

| NSYMB64 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 565 mm | 350 mm |

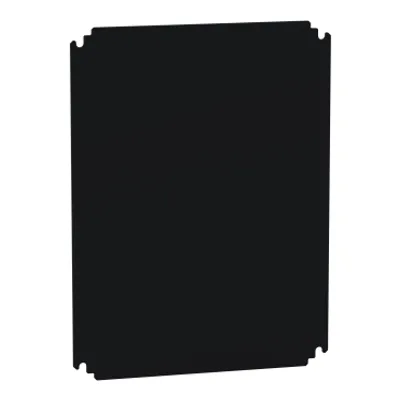

| NSYMB54 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 465 mm | 350 mm |

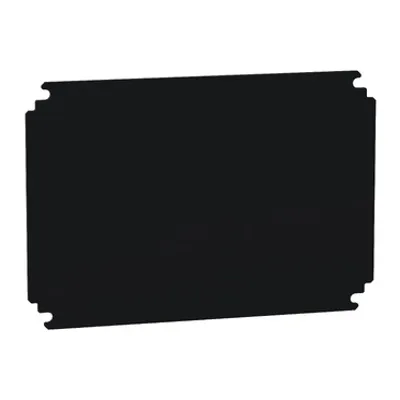

| NSYMB43 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 325 mm | 250 mm |

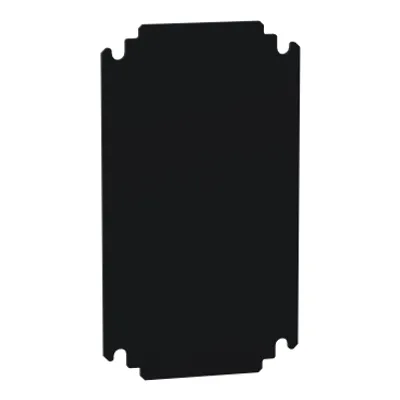

| NSYMB32 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 265 mm | 150 mm |

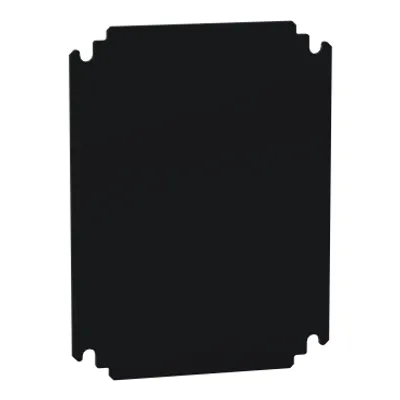

| NSYMB3025 | Mounting accessory | Mounting plate | Direct fixing on backstuds, Step slide | 265 mm | 200 mm |

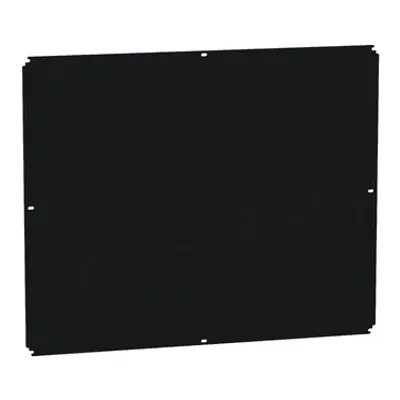

| NSYMB1210 | Mounting accessory | Mounting plate | Step slide, Direct fixing on backstuds | 1150 mm | 950 mm |

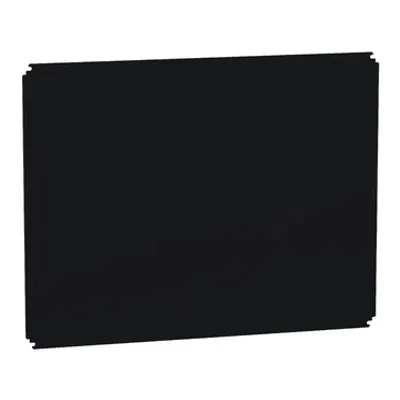

| NSYMB108 | Mounting accessory | Mounting plate | Step slide, Direct fixing on backstuds | 965 mm | 750 mm |

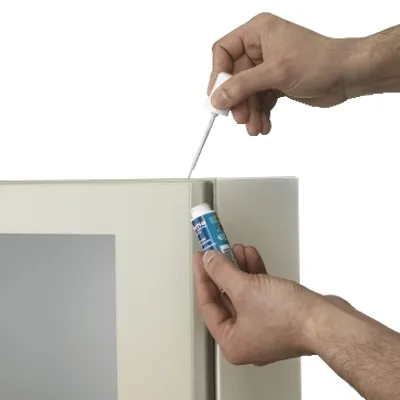

| NSYTUP7035 | Enclosure accessory | Paint | — | — | — |

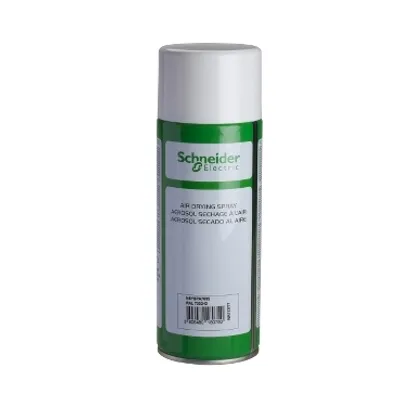

| NSYBPA7035 | Enclosure accessory | Spray paint | — | — | — |
| NSYBPA7032 | Enclosure accessory | Spray paint | — | — | — |
| NSYS95100 | Power distribution | Safety terminal | On mounting accessories | 54 mm | 33 mm |
| NSYS70 | Power distribution | Safety terminal | On mounting accessories | 50 mm | 30 mm |
| NSYS50 | Power distribution | Safety terminal | On mounting accessories | 45 mm | 27 mm |

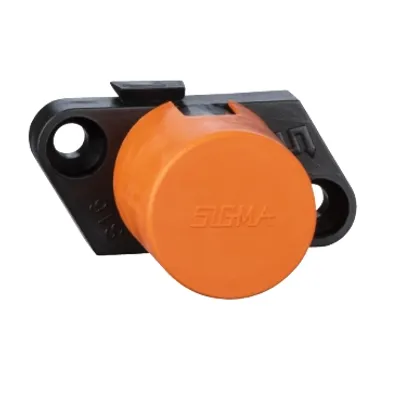

| NSYS2535 | Power distribution | Safety terminal | On mounting accessories | 38 mm | 23 mm |
| NSYS16 | Power distribution | Safety terminal | On mounting accessories | 32 mm | 19 mm |
| NSYS10 | Power distribution | Safety terminal | On mounting accessories | 28 mm | 16 mm |
| NSYS06 | Power distribution | Safety terminal | On mounting accessories | 25 mm | 16 mm |
| NSYS04 | Power distribution | Safety terminal | On mounting accessories | 20 mm | 13 mm |
