PanelSeT CRN Parts
Schneider Electric

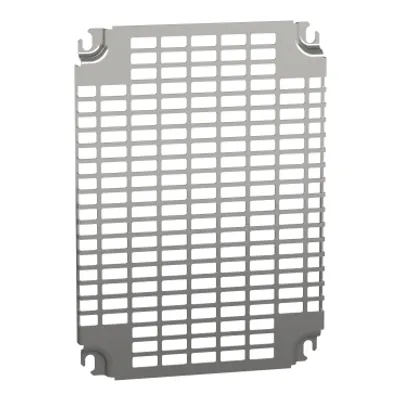

NSYMR43Monobloc perforated plates , H400xW300mm with universal perforations 11x26mm
Schneider Electric

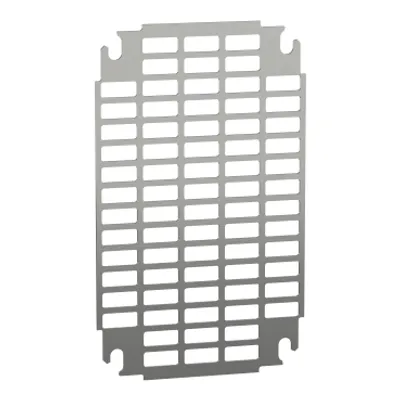

NSYMR32Monobloc perforated plates, H300xW200mm with universal perforations 11x26mm
Schneider Electric

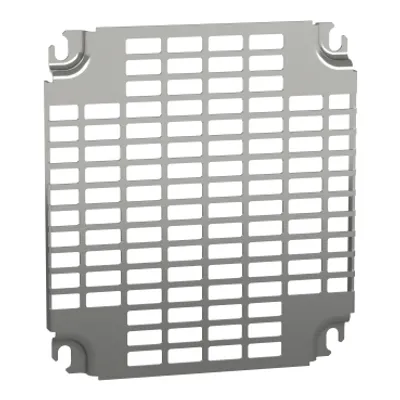

NSYMR3025Monobloc perforated plates H300xW250mm with universal perforations 11x26mm
Schneider Electric

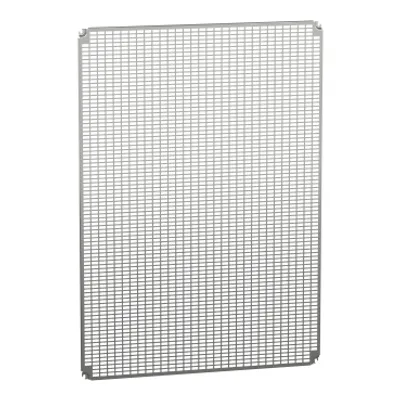

NSYMR1410Monobloc perforated plates H1400xW1000mm with universal perforations 11x26mm
Schneider Electric

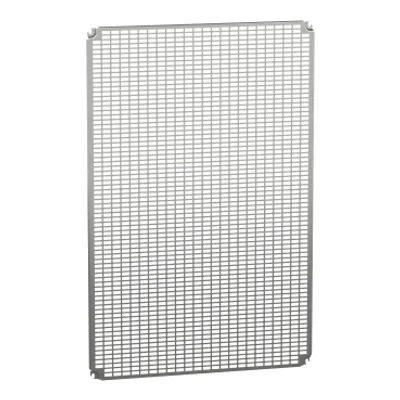

NSYMR128Monobloc perforated plates H1200xW800mm with universal perforations 11x26mm
Schneider Electric

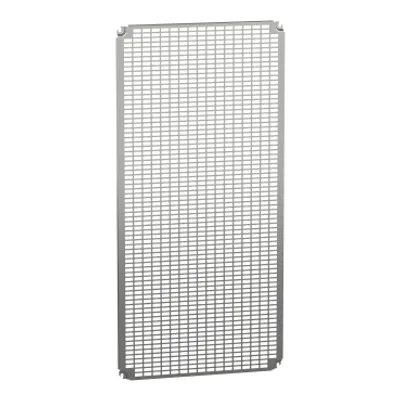

NSYMR126Monobloc perforated plates H1200xW600mm with universal perforations 11x26mm
Schneider Electric

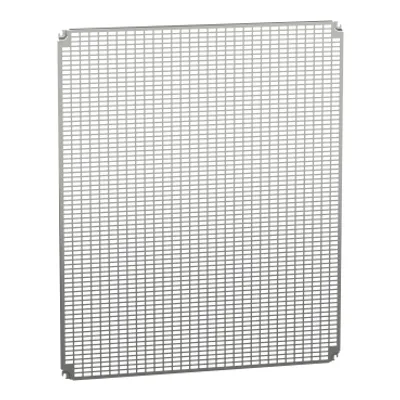

NSYMR1210Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
Schneider Electric

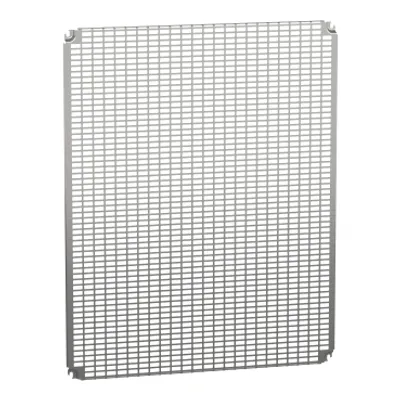

NSYMR108Monobloc perforated plates H1000xW800mm with universal perforations 11x26mm
Schneider Electric

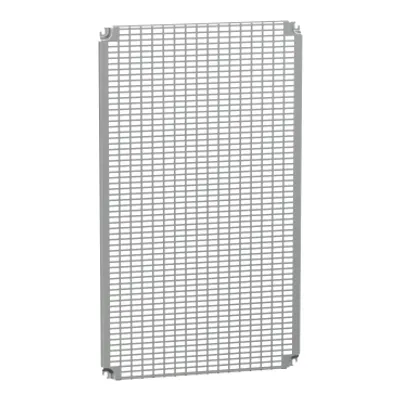

NSYMR106Monobloc perforated plates H1000xW600mm with universal perforations 11x26mm
Schneider Electric

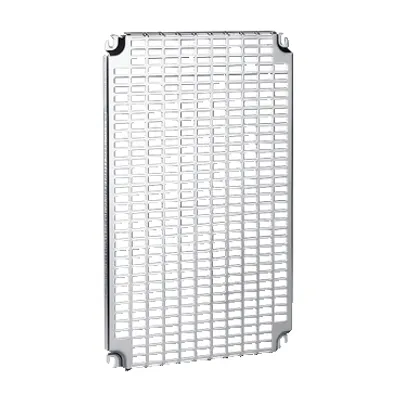

NSYMR1012Monobloc perforated plates, H1000xW1200mm with universal perforations 11x26mm
Schneider Electric

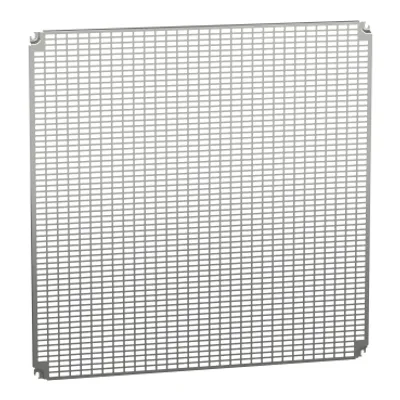

NSYMR1010Monobloc perforated plates, H1000xW1000mm with universal perforations 11x26mm
Compare PanelSeT CRN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mounting location | Mounting plate description | thickness | Net weight | Number of slots |
|---|---|---|---|---|---|

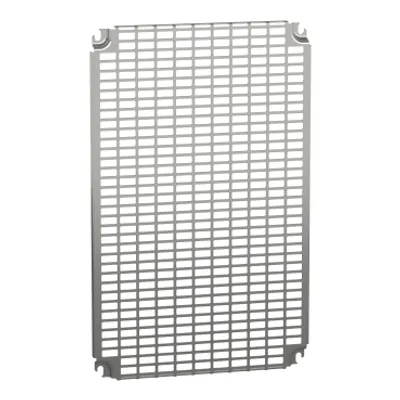

| NSYMR64 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 1.482 kg | 418 |

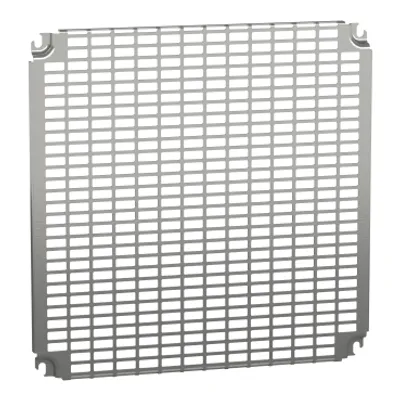

| NSYMR55 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 1.6 kg | 434 |

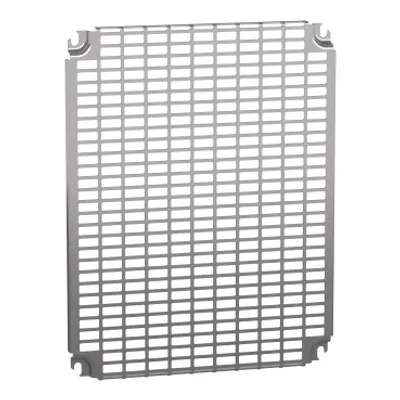

| NSYMR54 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 1.3 kg | 341 |

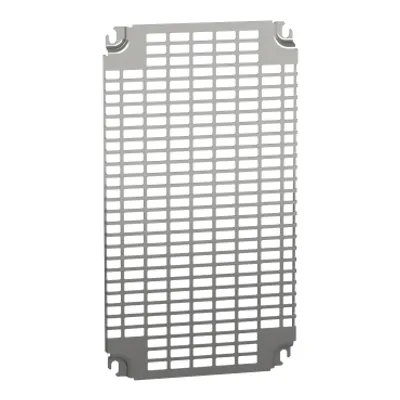

| NSYMR53 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 0.838 kg | 261 |

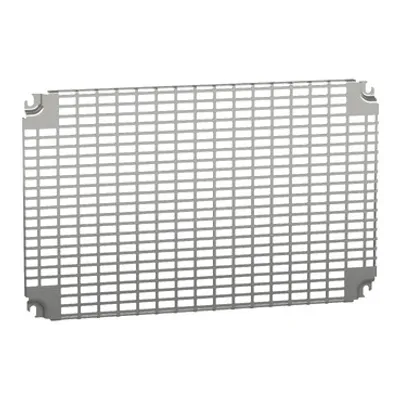

| NSYMR46 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 1.518 kg | 456 |

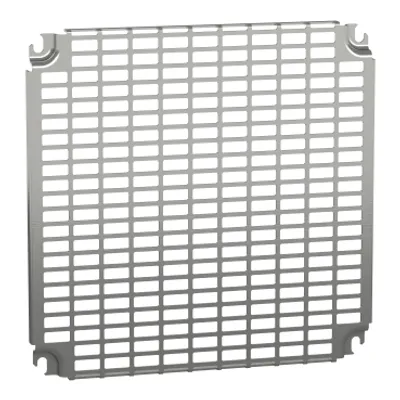

| NSYMR44 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 0.984 kg | 264 |
| NSYMR43 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 0.682 kg | 198 |

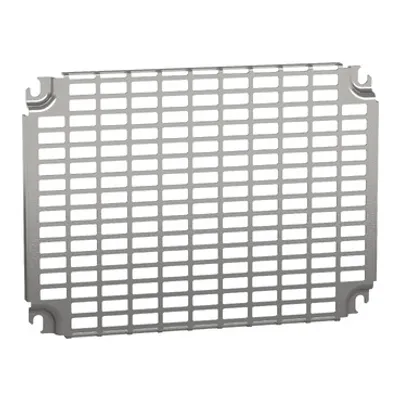

| NSYMR34 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 0.734 kg | 198 |

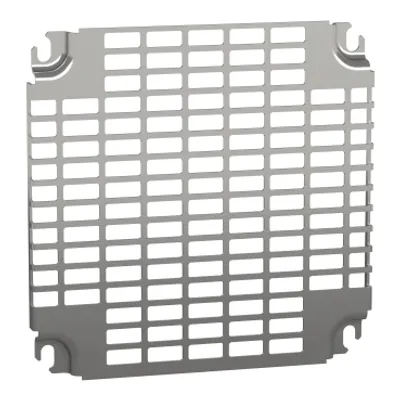

| NSYMR33 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 0.506 kg | 144 |
| NSYMR32 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 0.29 kg | 80 |
| NSYMR3025 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 0.463 kg | 128 |
| NSYMR1410 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 8.626 kg | 2728 |
| NSYMR128 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 6.4 kg | 1800 |
| NSYMR126 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 4.78 kg | 1275 |
| NSYMR1210 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 7.8 kg | 2325 |
| NSYMR108 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 4.96 kg | 1536 |
| NSYMR106 | Direct fixing on backstuds, Step slide | Telequick perforated | 2 mm | 4.04 kg | 1088 |
| NSYMR1012 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 7.42 kg | 2294 |
| NSYMR1010 | Step slide, Direct fixing on backstuds | Telequick perforated | 2 mm | 6.48 kg | 1922 |

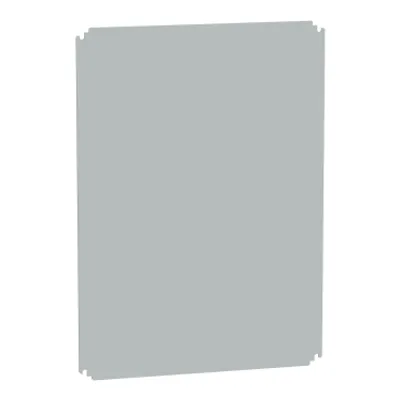

| NSYMPP86 | Step slide, Direct fixing on backstuds | Plain | 5 mm | 3.8 kg | — |

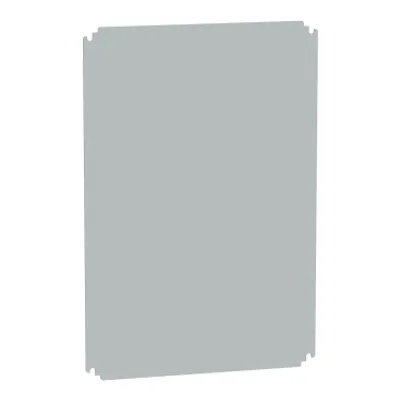

| NSYMPP75 | Step slide, Direct fixing on backstuds | Plain | 4 mm | 2.1 kg | — |

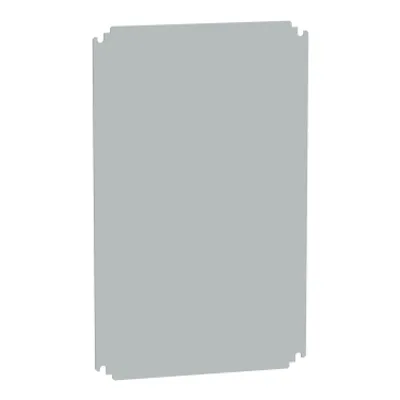

| NSYMPP64 | Direct fixing on backstuds, Step slide | Plain | 4 mm | 14 kg | — |

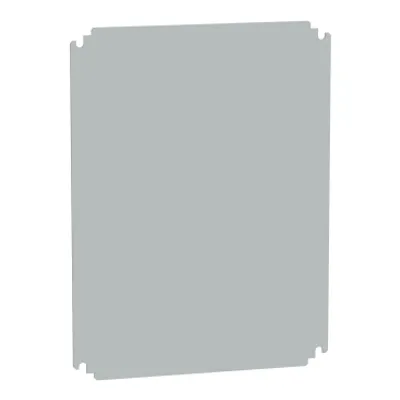

| NSYMPP54 | Direct fixing on backstuds, Step slide | Plain | 4 mm | 1.2 kg | — |

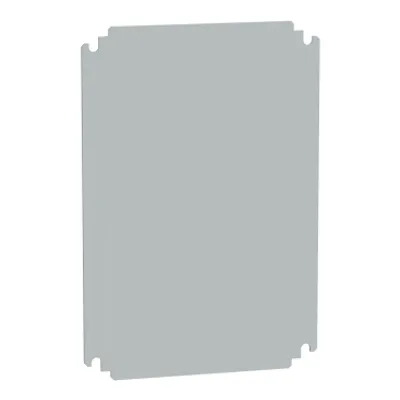

| NSYMPP43 | Direct fixing on backstuds, Step slide | Plain | 4 mm | 7 kg | — |
Common to all listed parts
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
