Schneider Electric NSYMM128

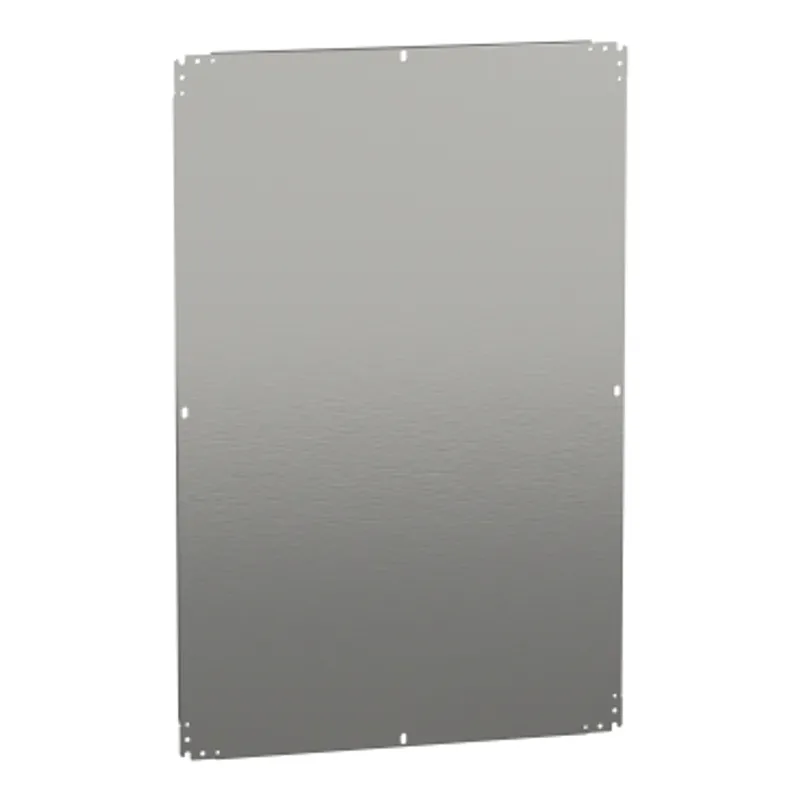

Plain mounting plate H1200xW800mm made of galvanised sheet steel
- MPN
- NSYMM128
- EAN
- 3606480183201
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM128?
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1200 mm W: 800 mm, - H: 800 mm W: 1200 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 180 kg |

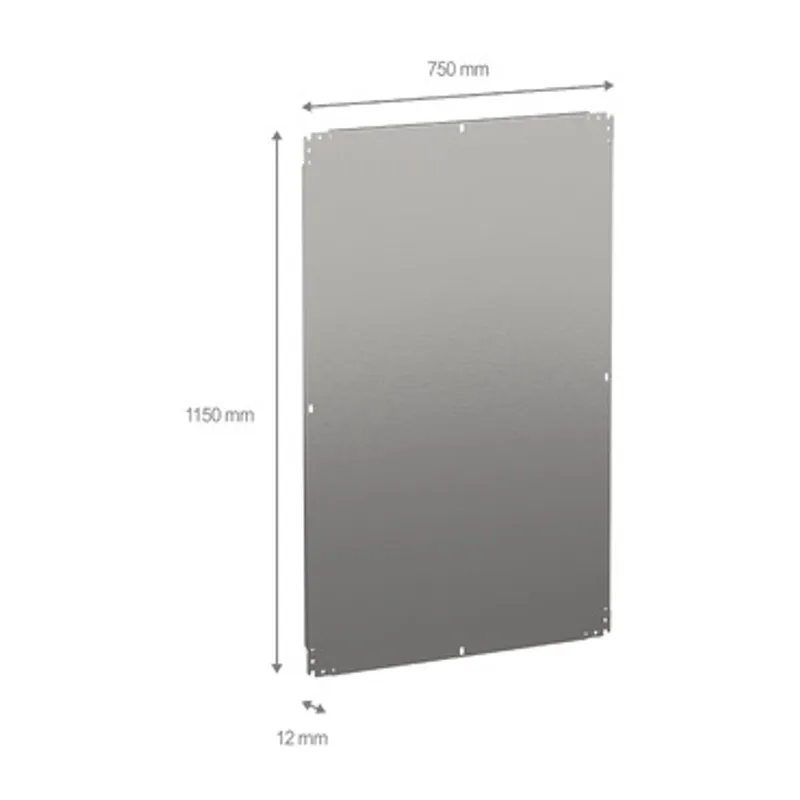

| Height | 1150 mm |
| Width | 750 mm |
| thickness | 1.8 mm |
| Net weight | 17.325 kg |
Packaging
| Package 1 | 1 PCE, 117.500 cm × 76.500 cm × 4.500 cm (L × W × H), 18.000 kg |
| Package 2 | 12 P12, 120.000 cm × 80.000 cm × 66.000 cm (L × W × H), 231.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMM128: frequently asked questions
When can NSYMM128 be shipped?
NSYMM128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMM128 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMM128 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMM128, subject to availability and destination.
