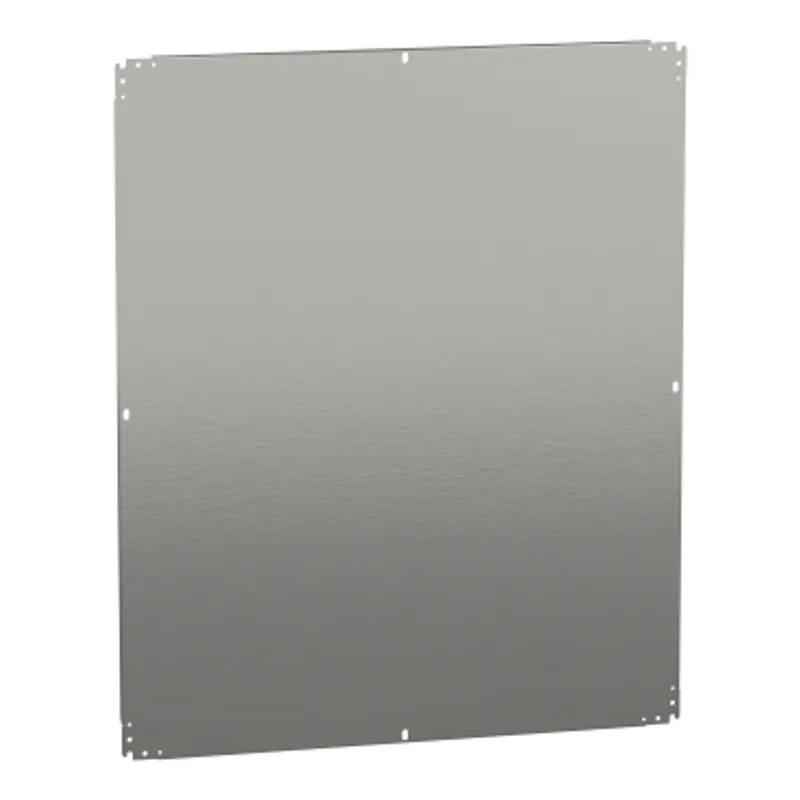

Schneider Electric NSYMM1210
Plain mounting plate H1200xW1000mm Galvanised sheet steel Reversible dimension
- MPN
- NSYMM1210
- EAN
- 3606480183171
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM1210?
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is1000 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1000 mm W: 1200 mm, - H: 1200 mm W: 1000 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 180 kg |
| Height | 1150 mm |
| Width | 950 mm |
| thickness | 1.8 mm |
| Net weight | 21.884 kg |
| Variant particularity | Installation in enclosures with inverted dimensions |
Packaging
| Package 1 | 1 PCE, 116.000 cm × 96.000 cm × 5.000 cm (L × W × H), 23.000 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 58.000 cm (L × W × H), 293.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMM1210: frequently asked questions
When can NSYMM1210 be shipped?
NSYMM1210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMM1210 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMM1210 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMM1210, subject to availability and destination.
