Schneider Electric NSYMM1010

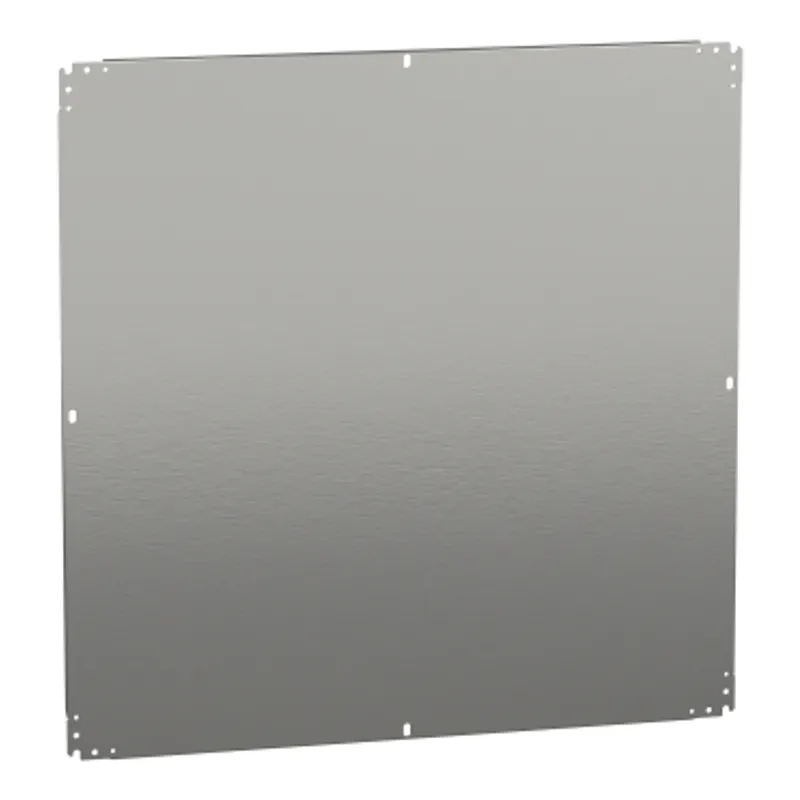

Plain mounting plate H1000xW1000mm made of galvanised sheet steel
- MPN
- NSYMM1010
- EAN
- 3606480183140
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM1010?
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is1000 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1000 mm W: 1000 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 180 kg |
| Height | 950 mm |
| Width | 950 mm |
| thickness | 1.8 mm |
| Net weight | 18.1 kg |
Packaging
| Package 1 | 1 PCE, 97.000 cm × 96.000 cm × 4.500 cm (L × W × H), 19.000 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 62.000 cm (L × W × H), 246.000 kg |
