Schneider Electric NSYMF64
Microperforated mounting plate H600xW400 w/holes diam 3,6mm on 12,5mm pitch
- MPN
- NSYMF64
- EAN
- 3606480183089
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMF64?

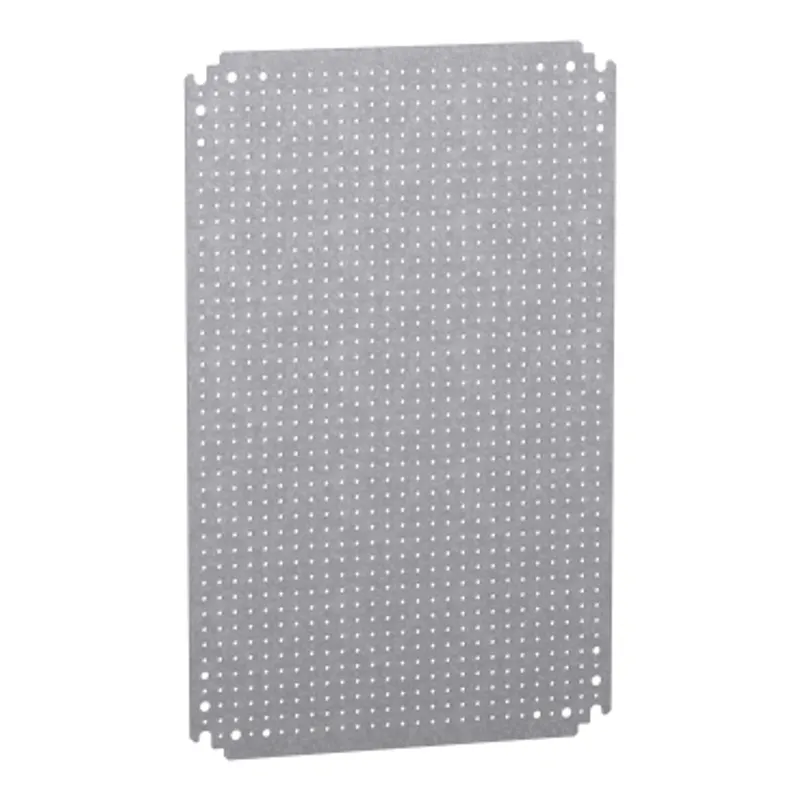

Microperforated mounting plate for Spacial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 600 mm x (W) 400 mm. Dimensions are reversible : it can be installed in enclosure with inverted dimensions. This mounting plate have 3,6 mm diameter holes with a 12,5 mm pitch which allow multi-purpose mounting accessory. It can be fixed using step slide mounting location or by direct fixing on backstuds (M8 screws). Made of galvanised steel, making it durable and resistant. The permanent permissible load is 90 kg. This product is qualified as a green premium, with minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 600 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 90 kg |
| Height | 550 mm |
| Width | 365 mm |
| Depth | 125 mm |
| thickness | 1.8 mm |
| Net weight | 2.92 kg |
| Variant particularity | Installation in enclosures with inverted dimensions |
Packaging
| Package 1 | 1 PCE, 56.500 cm × 36.000 cm × 0.300 cm (L × W × H), 2.900 kg |
| Package 2 | 120 PAL, 120.000 cm × 10.000 cm × 30.000 cm (L × W × H), 350.400 kg |
