Schneider Electric NSYMF53
Microperforated mounting plate H500xW300 w/holes diam 3,6mm on 12,5mm pitch
- MPN
- NSYMF53
- EAN
- 3606480199073
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYMF53 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

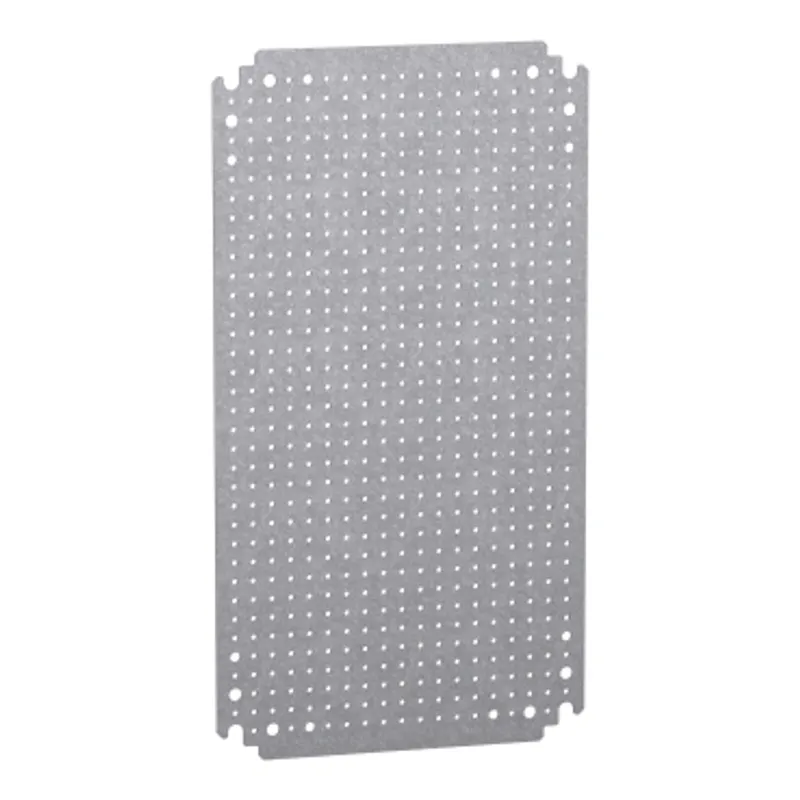

What is the Schneider Electric NSYMF53?
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is300 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 500 mm W: 300 mm, - H: 300 mm W: 500 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 60 kg |

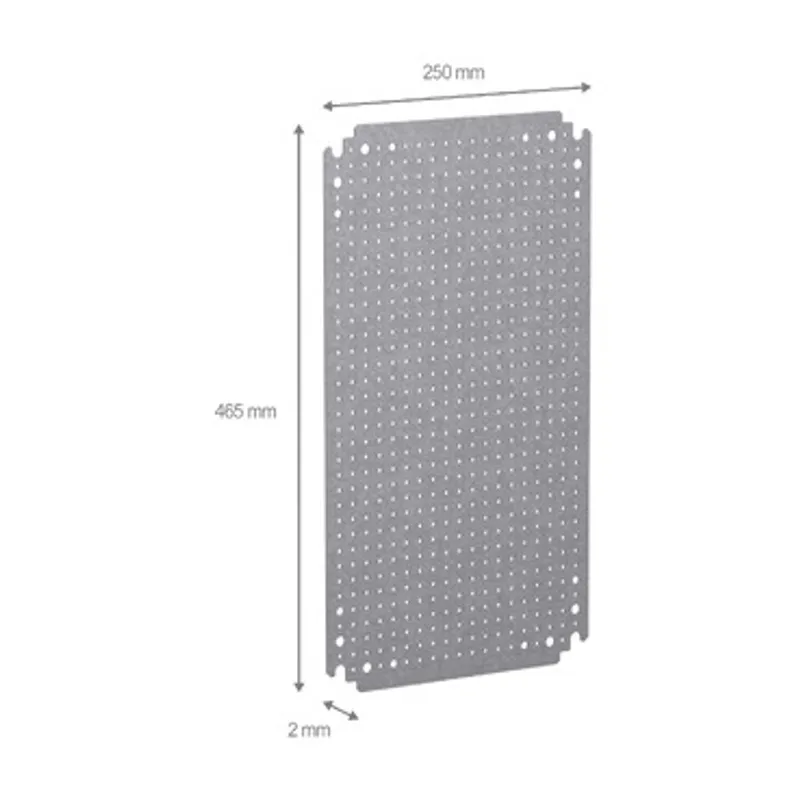

| Height | 450 mm |
| Width | 250 mm |
| Depth | 125 mm |
| thickness | 1.8 mm |
| Net weight | 1.68 kg |
Packaging
| Package 1 | 1 PCE, 46.500 cm × 25.000 cm × 0.300 cm (L × W × H), 1.644 kg |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 342.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMF53: frequently asked questions
Can I still buy the NSYMF53 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYMF53, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYMF53 be shipped?
NSYMF53 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMF53 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMF53 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMF53, subject to availability and destination.
