NSYMR128Monobloc perforated plates H1200xW800mm with universal perforations 11x26mm
Schneider Electric NSYMR33
Monobloc perforated plates H300xW300mm with universal perforations 11x26mm
- MPN
- NSYMR33
- EAN
- 3606480183621
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR33?

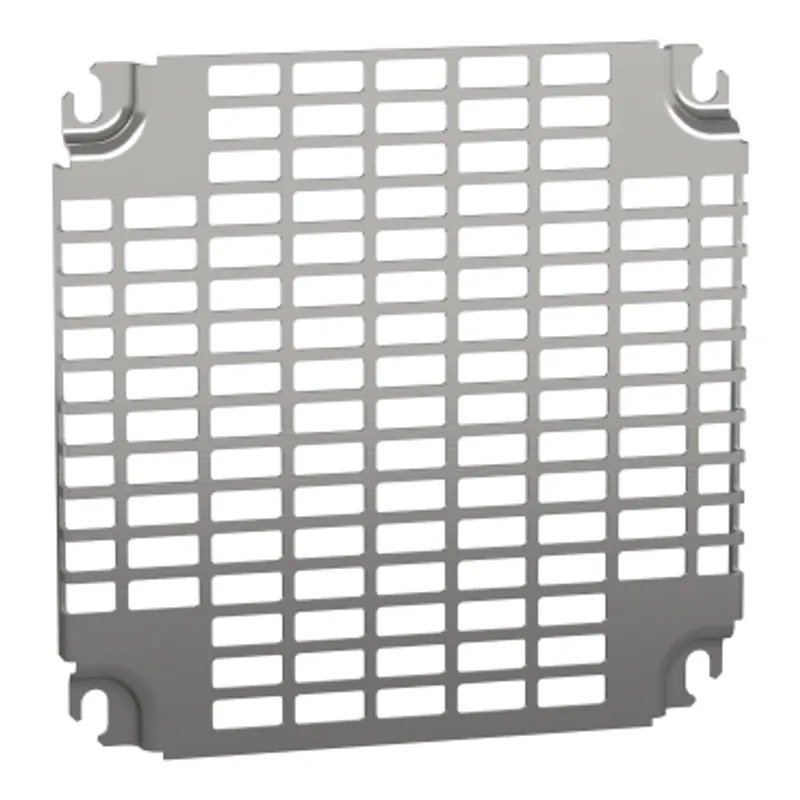

Monobloc perforated mounting plates with universal perforations for Spatial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 300 mm x (W) 300 mm. The mounting plate can be fixed using step slide or by direct fixing on backstuds (M8 screws). It is Telequick perforated. The dimensions of the cut-out are 11 mm x 26 mm. It count a total of 144 slots. The product is made of steel with zinc coated surface finish. It can be installed in the rear of the enclosure. This product is qualified as a green premium, with minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 300 mm W: 300 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Height | 255 mm |
| Width | 251 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 0.506 kg |
| Number of slots | 144 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 25.500 cm × 25.100 cm × 1.700 cm (L × W × H), 512.000 g |
| Package 2 | 276 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 161.000 kg |
