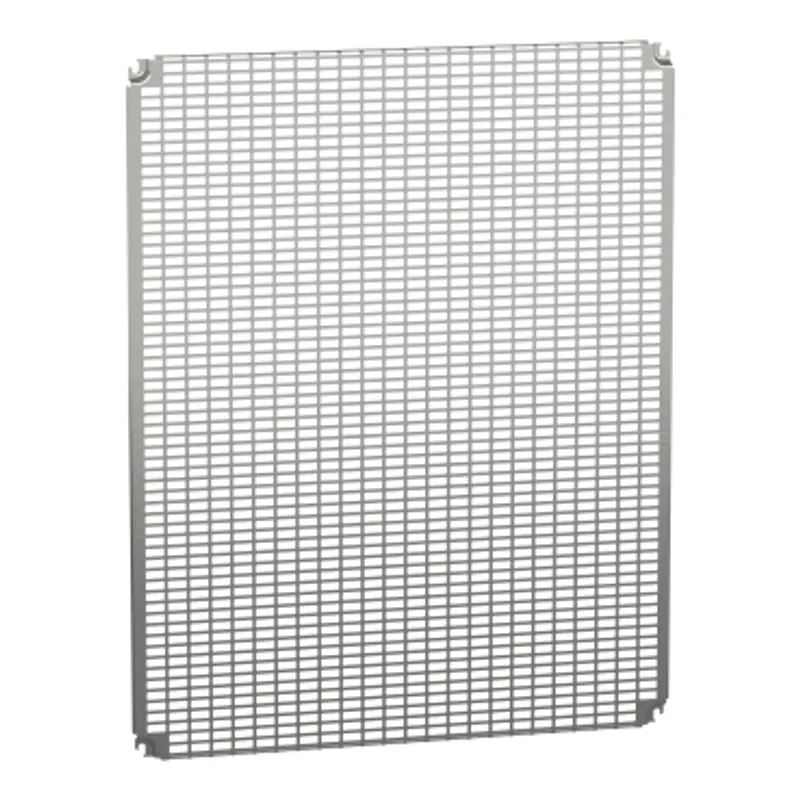

Schneider Electric NSYMR108
Monobloc perforated plates H1000xW800mm with universal perforations 11x26mm
- MPN
- NSYMR108
- EAN
- 3606480183560
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR108?
Schneider Electric Monobloc perforated plates H1000xW800mm with universal perforations 11x26mm, manufacturer part number NSYMR108. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | -, - H: 1000 mm W: 800 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |

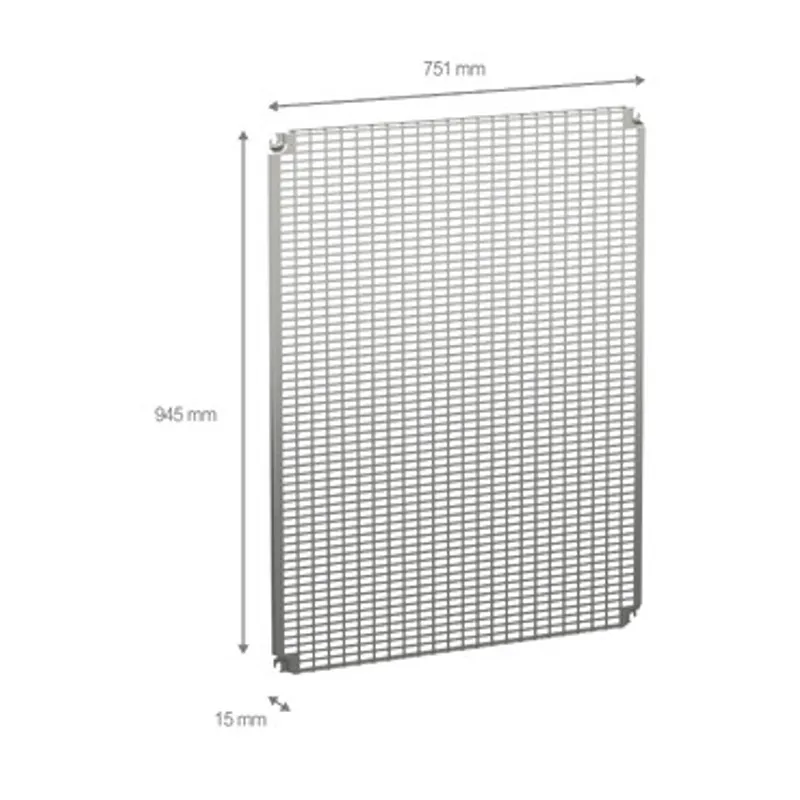

| Height | 945 mm |
| Width | 751 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 4.96 kg |
| Number of slots | 1536 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 95.000 cm × 75.000 cm × 1.500 cm (L × W × H), 4.980 kg |
| Package 2 | 76 PAM, 120.000 cm × 100.000 cm × 91.000 cm (L × W × H), 407.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMR108: frequently asked questions
When can NSYMR108 be shipped?
NSYMR108 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMR108 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMR108 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMR108, subject to availability and destination.
