Schneider Electric
NSYMR1210Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
Schneider Electric NSYMR3025
Monobloc perforated plates H300xW250mm with universal perforations 11x26mm
- MPN
- NSYMR3025
- EAN
- 3606480183607
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR3025?

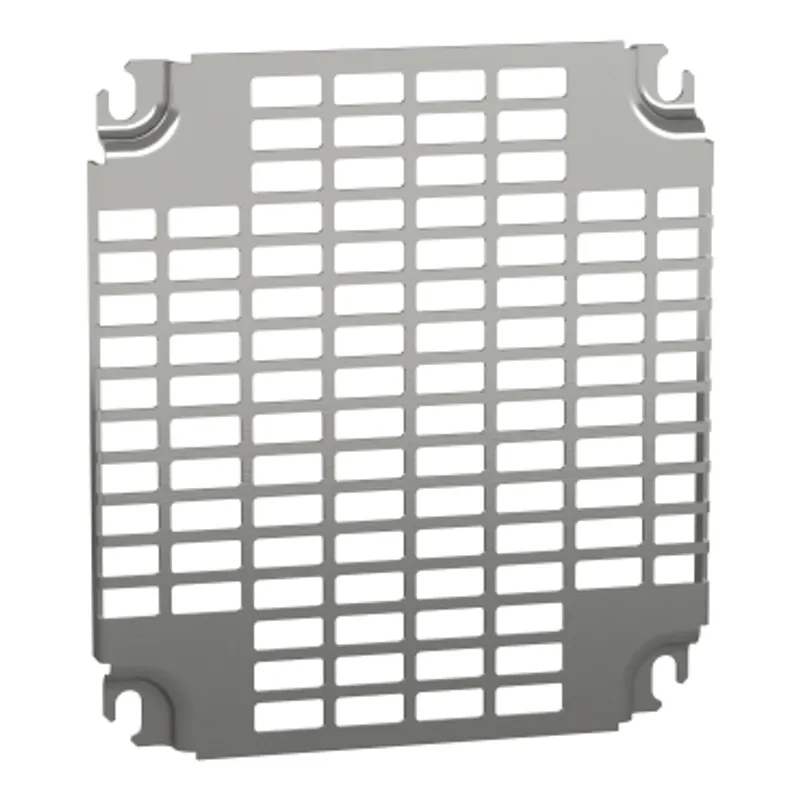

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is300 x W is250 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 128 slots. Variant particularity is Installation in rear of enclosure.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 300 mm W: 250 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |

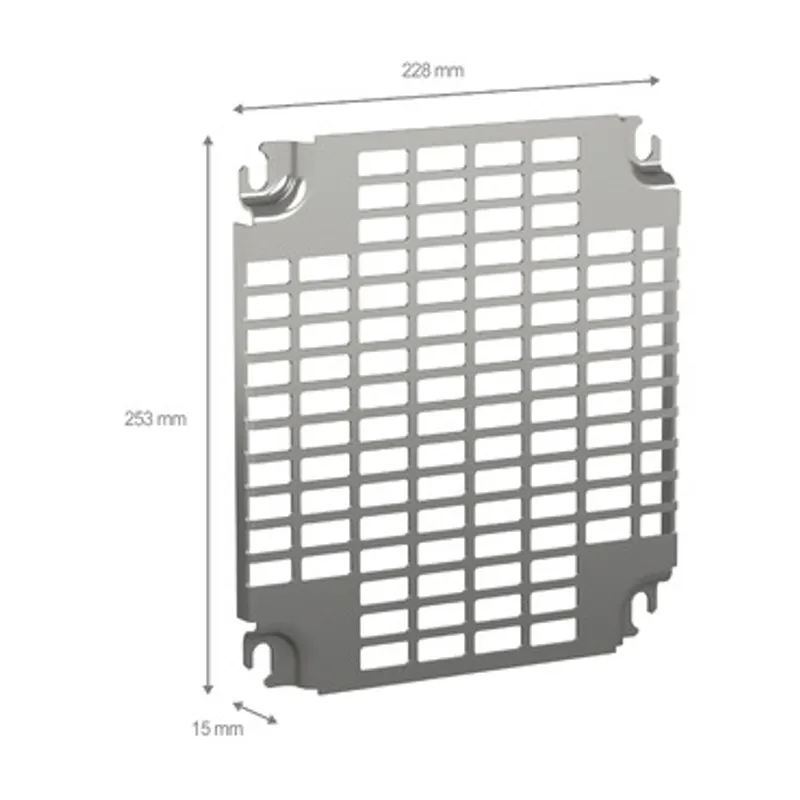

| Height | 253 mm |
| Width | 228 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 0.463 kg |
| Number of slots | 128 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 23.000 cm × 25.500 cm (L × W × H), 454.000 g |
| Package 2 | 368 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 180.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMR3025: frequently asked questions
When can NSYMR3025 be shipped?
NSYMR3025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMR3025 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMR3025 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMR3025, subject to availability and destination.
