Schneider Electric NSYMR34

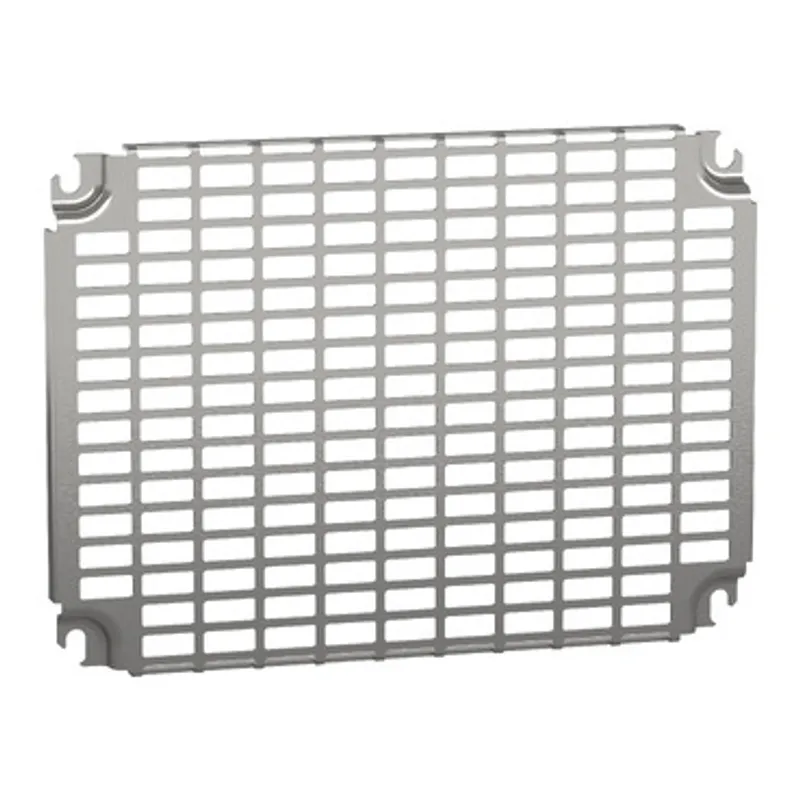

Monobloc perforated plates H300xW400mm with universal perforations 11x26mm
- MPN
- NSYMR34
- EAN
- 3606480183638
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR34?
Schneider Electric Monobloc perforated plates H300xW400mm with universal perforations 11x26mm, manufacturer part number NSYMR34. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 300 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |

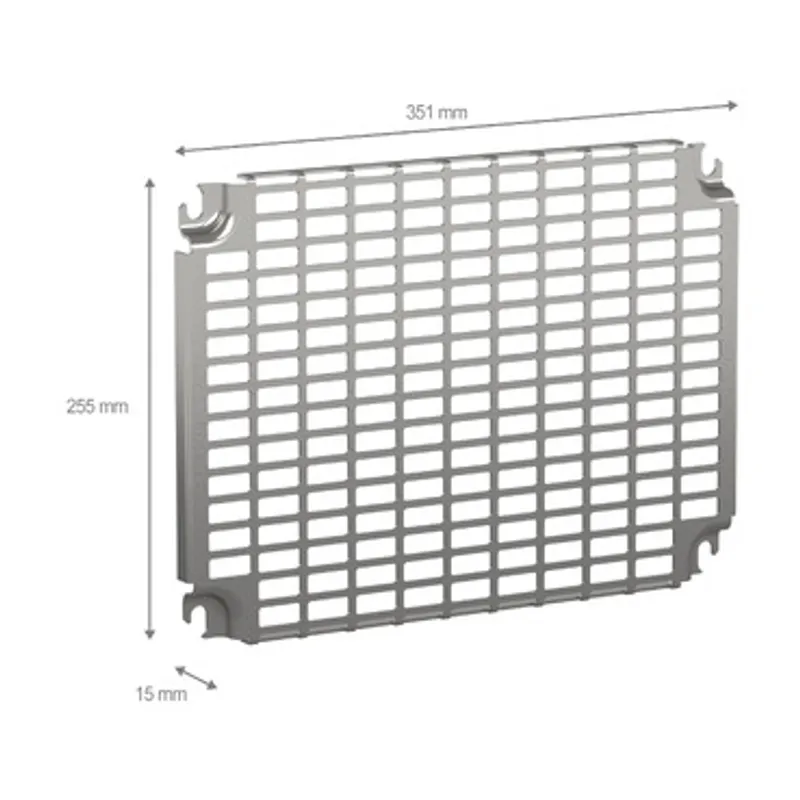

| Height | 255 mm |
| Width | 351 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 0.734 kg |
| Number of slots | 198 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 26.500 cm × 36.000 cm (L × W × H), 742.000 g |
| Package 2 | 250 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 199.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMR34: frequently asked questions
When can NSYMR34 be shipped?
NSYMR34 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMR34 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMR34 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMR34, subject to availability and destination.
