Schneider Electric NSYMPP86

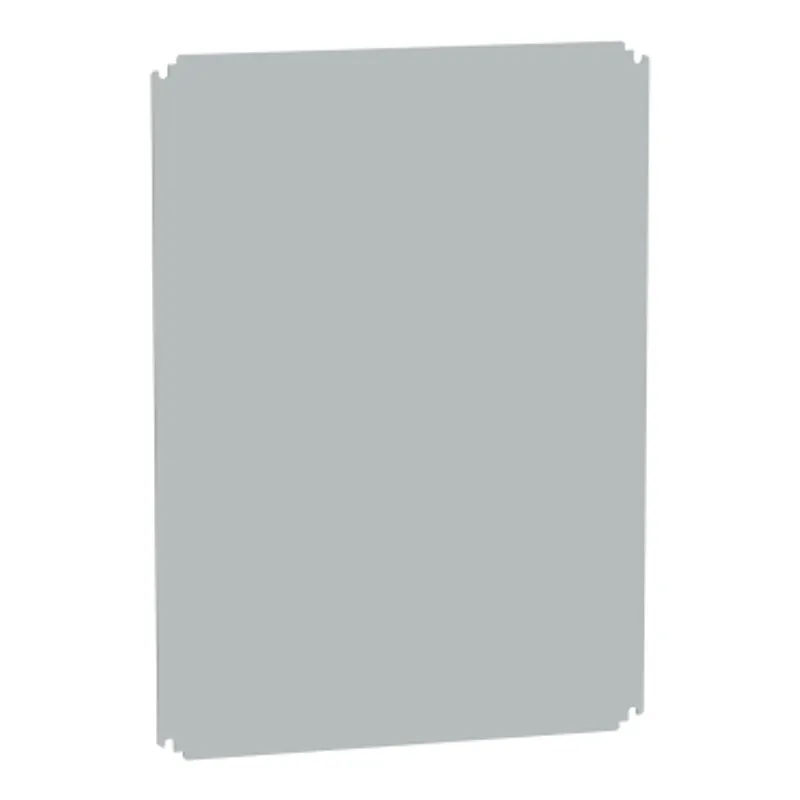

Insulating mounting plate for enclosure H800xW600mm made of polyester
- MPN
- NSYMPP86
- EAN
- 3606480183522
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMPP86?
Schneider Electric Insulating mounting plate for enclosure H800xW600mm made of polyester, manufacturer part number NSYMPP86. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Fibreglass reinforced polyester |
| Colour | Grey (RAL 7035) |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 63.1 kg S3D, CRN, S3X enclosures, 63.1 kg PLM enclosure |
| Maximum load | 150 kg PLM enclosure, 150 kg S3D, CRN, S3X enclosures |
| Height | Nominal: 765 mm, Enclosure nominal dimension: 800 mm |
| Width | Nominal: 550 mm, Enclosure nominal dimension: 600 mm |
| Surface and useful surface | 42.1 dm² |
| thickness | 5 mm |
| Net weight | 3.8 kg |
| Variant particularity | With enclosures H800 x W1200 |
Packaging
| Package 1 | 1 PCE, 56.000 cm × 77.000 cm × 1.000 cm (L × W × H), 3.188 kg |
| Package 2 | 130 P12, 120.000 cm × 80.000 cm × 60.000 cm (L × W × H), 433.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMPP86: frequently asked questions
When can NSYMPP86 be shipped?
NSYMPP86 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMPP86 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMPP86 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMPP86, subject to availability and destination.
