Schneider Electric NSYMPP43

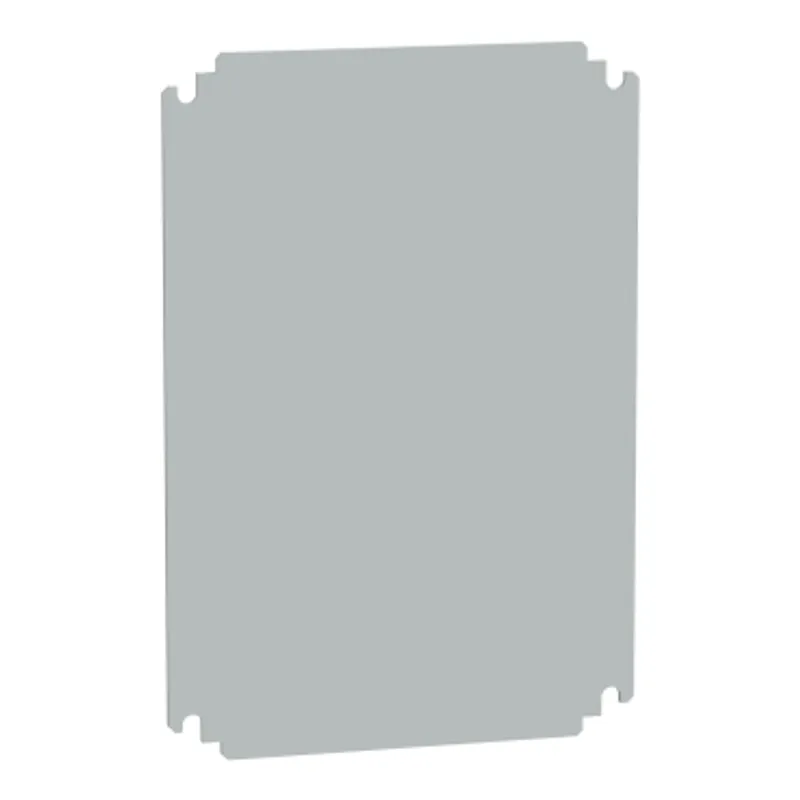

Insulating mounting plate for enclosure H400xW300mm made of polyester
- MPN
- NSYMPP43
- EAN
- 3606480183485
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMPP43?
Schneider Electric Insulating mounting plate for enclosure H400xW300mm made of polyester, manufacturer part number NSYMPP43. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Fibreglass reinforced polyester |
| Colour | Grey (RAL 7035) |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 30 kg |
| Height | Nominal: 325 mm, Enclosure nominal dimension: 400 mm |
| Width | Nominal: 250 mm, Enclosure nominal dimension: 300 mm |
| thickness | 4 mm |
| Net weight | 7 kg |
Packaging
| Package 1 | 1 PCE, 36.500 cm × 25.500 cm × 0.500 cm (L × W × H), 666.000 g |
