PanelSeT CRN Parts

Schneider Electric

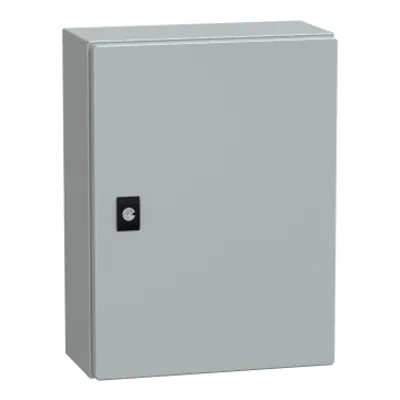

NSYCRN43150

PanelSeT CRN plain door w/o mount.plate. H400xW300xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN345150

PanelSeT CRN plain door w/o mount.plate. H300xW450xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN34200T

PanelSeT CRN tspt door w/o mount.plate. H300xW400xD200 IP66 IK08 RAL7035..

Schneider Electric

NSYCRN34200

PanelSeT CRN plain door w/o mount.plate. H300xW400xD200 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN33200T

PanelSeT CRN tspt door w/o mount.plate. H300xW300xD200 IP66 IK08 RAL7035..

Schneider Electric

NSYCRN33200P

PanelSeT CRN plain door with mount.plate. H300xW300xD200 IP66 IK10 RAL7035..

Schneider Electric

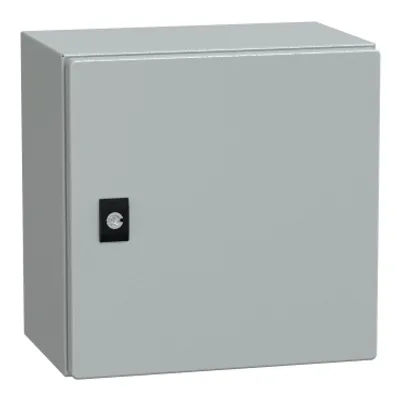

NSYCRN33200

PanelSeT CRN plain door w/o mount.plate. H300xW300xD200 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN33150T

PanelSeT CRN tspt door w/o mount.plate. H300xW300xD150 IP66 IK08 RAL7035..

Schneider Electric

NSYCRN33150P

PanelSeT CRN plain door with mount.plate. H300xW300xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN325200T

PanelSeT CRN tspt door w/o mount.plate. H300xW250xD200 IP66 IK08 RAL7035..

Schneider Electric

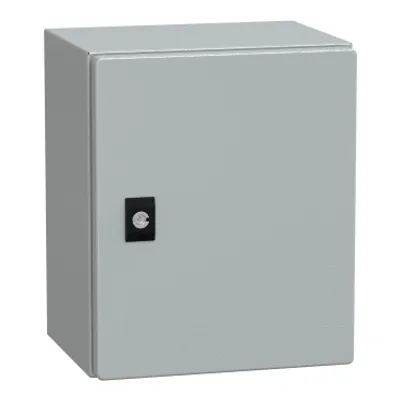

NSYCRN325200P

PanelSeT CRN plain door with mount.plate. H300xW250xD200 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN325200

PanelSeT CRN plain door w/o mount.plate. H300xW250xD200 IP66 IK10 RAL7035..

Schneider Electric

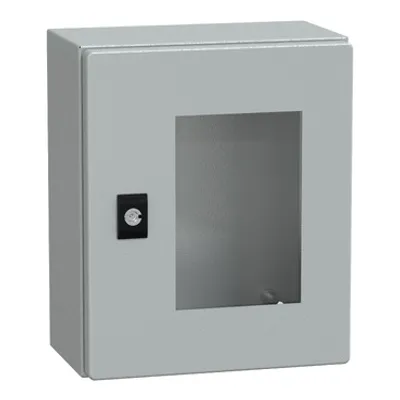

NSYCRN325150T

PanelSeT CRN tspt door w/o mount.plate. H300xW250xD150 IP66 IK10 RAL7035..

Schneider Electric

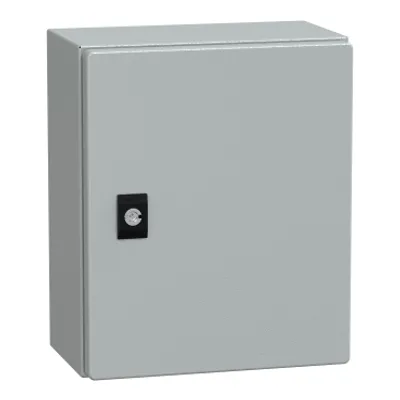

NSYCRN325150P

PanelSeT CRN plain door with mount.plate. H300xW250xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN325150

PanelSeT CRN plain door w/o mount.plate. H300xW250xD150 IP66 IK10 RAL7035..

Schneider Electric

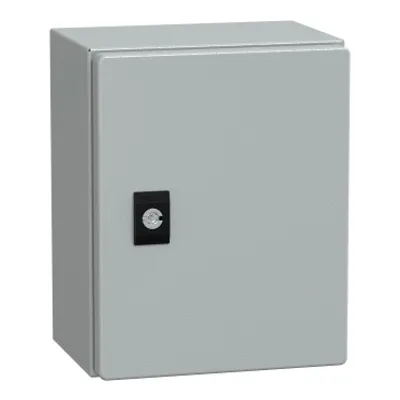

NSYCRN252150P

PanelSeT CRN plain door with mount.plate. H250xW200xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN252150

PanelSeT CRN plain door w/o mount.plate. H250xW200xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN23150

PanelSeT CRN plain door w/o mount.plate. H250xW300xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN22150

PanelSeT CRN plain door w/o mount.plate. H200xW200xD150 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN108300T

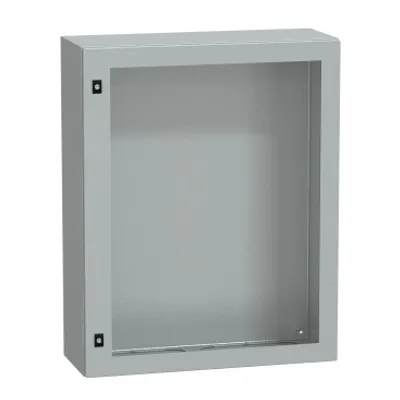

PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD300 IP66 IK08 RAL7035..

Schneider Electric

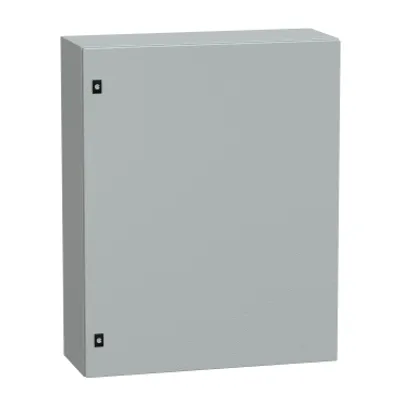

NSYCRN108300P

PanelSeT CRN plain door with mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Schneider Electric

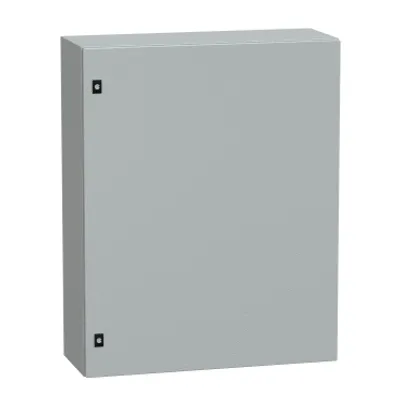

NSYCRN108300

PanelSeT CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Schneider Electric

NSYCRN108250T

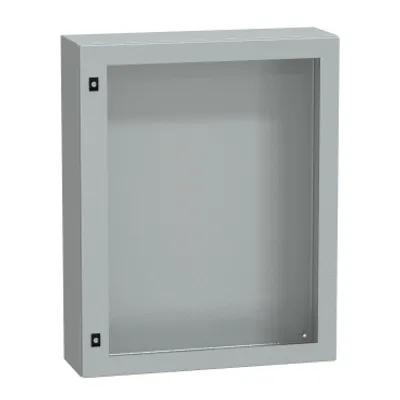

PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD250 IP66 IK08 RAL7035..

Schneider Electric

NSYCRN108250P

PanelSeT CRN plain door with mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..

Compare PanelSeT CRN

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Enclosure nominal height	Enclosure nominal width	Enclosure nominal depth	Door type	Net weight
NSYCRN43150	400 mm	300 mm	150 mm	Plain	5.136 kg
NSYCRN345150	300 mm	450 mm	150 mm	Plain	5.611 kg
NSYCRN34200T	300 mm	400 mm	200 mm	Glazed	6.196 kg
NSYCRN34200	300 mm	400 mm	200 mm	Plain	5.94 kg
NSYCRN33200T	300 mm	300 mm	200 mm	Glazed	5.019 kg
NSYCRN33200P	300 mm	300 mm	200 mm	Plain	5.87 kg
NSYCRN33200	300 mm	300 mm	200 mm	Plain	4.873 kg
NSYCRN33150T	300 mm	300 mm	150 mm	Glazed	4.399 kg
NSYCRN33150P	300 mm	300 mm	150 mm	Plain	5.25 kg
NSYCRN325200T	300 mm	250 mm	200 mm	Glazed	4.466 kg
NSYCRN325200P	300 mm	250 mm	200 mm	Plain	5.13 kg
NSYCRN325200	300 mm	250 mm	200 mm	Plain	4.34 kg
NSYCRN325150T	300 mm	250 mm	150 mm	Glazed	3.728 kg
NSYCRN325150P	300 mm	250 mm	150 mm	Plain	4.502 kg
NSYCRN325150	300 mm	250 mm	150 mm	Plain	3.72 kg
NSYCRN252150P	250 mm	200 mm	150 mm	Plain	3.274 kg
NSYCRN252150	250 mm	200 mm	150 mm	Plain	2.822 kg
NSYCRN23150	200 mm	300 mm	150 mm	Plain	3.288 kg
NSYCRN22150	200 mm	200 mm	150 mm	Plain	2.52 kg
NSYCRN108300T	1000 mm	800 mm	300 mm	Glazed	31 kg
NSYCRN108300P	1000 mm	800 mm	300 mm	Plain	49 kg
NSYCRN108300	1000 mm	800 mm	300 mm	Plain	34 kg
NSYCRN108250T	1000 mm	800 mm	250 mm	Glazed	29.815 kg
NSYCRN108250P	1000 mm	800 mm	250 mm	Plain	42 kg

Common to all listed parts

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure
Installation accessory type	Wall-mounting
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
