Field-Attachable Connectors Parts
Compare Field-Attachable Connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Plug connection | Cable: Sheath diameter | Mass | Plug connector: Contact surface |
|---|---|---|---|---|---|

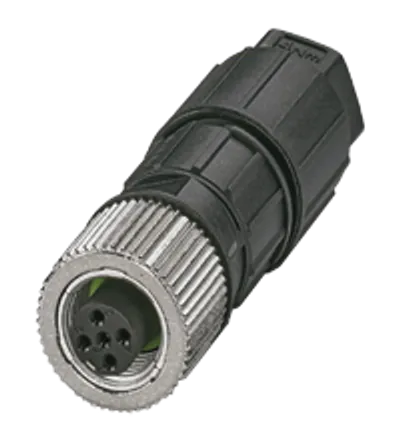

| V15-G-Q3 | 70152941 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 7 mm | 22.2 g | Ni/Au |

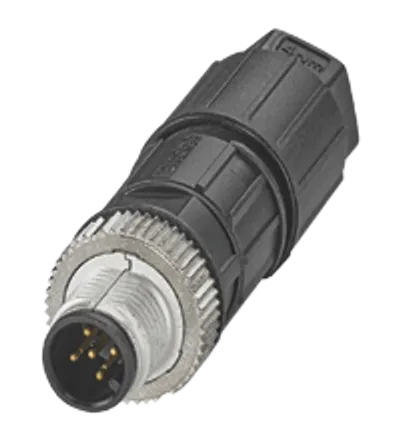

| V15S-G-Q3 | 70152942 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 7 mm | 20.5 g | Ni/Au |

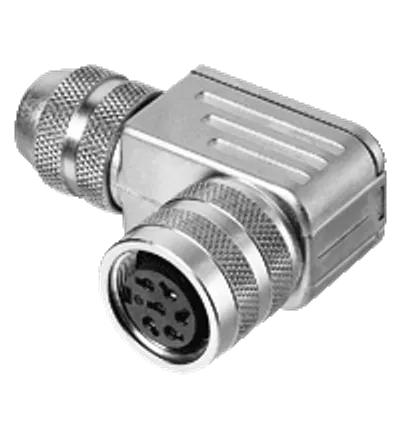

| 42306B | 044996 | — | — | 136 g | — |

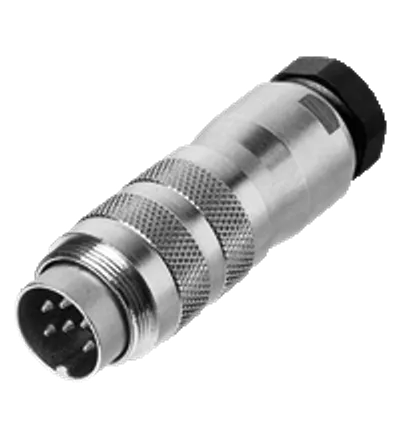

| 42312C | 045003 | — | — | 50 g | — |
| 42312B | 045002 | — | — | 64 g | — |

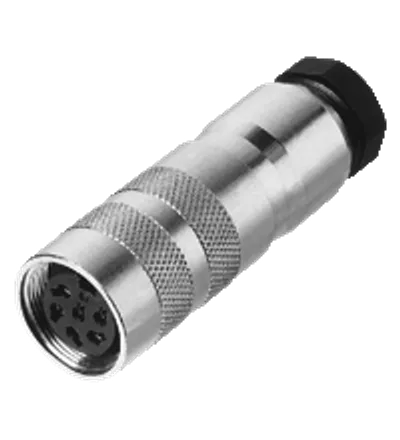

| 42312A | 045001 | — | — | 50 g | — |
| 42308C | 045000 | — | — | 49 g | — |

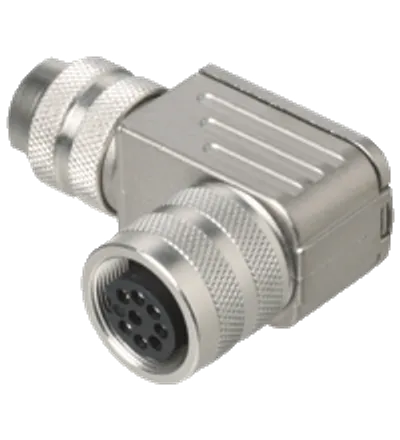

| 42308B | 044999 | — | — | 69 g | — |

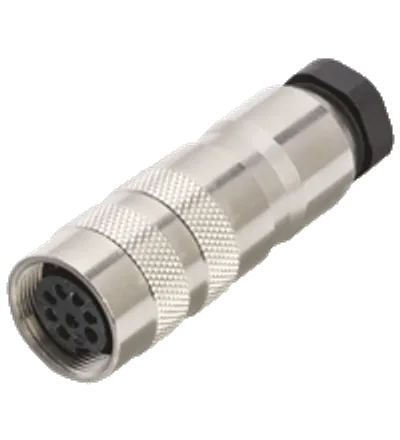

| 42308A | 044998 | connector M16 x 0.75 : IEC 61076-2-106 | 6 ... 8 mm | 51 g | silver-plated (Ag) |
| 42306A | 044995 | — | — | 49 g | — |

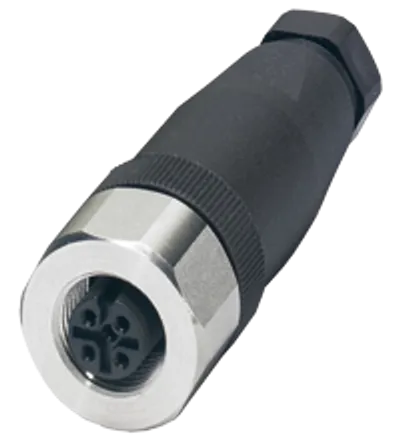

| V1-GV4A-PG7 | 70180111 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 6 mm | 26.3 g | gold plated (Au) |

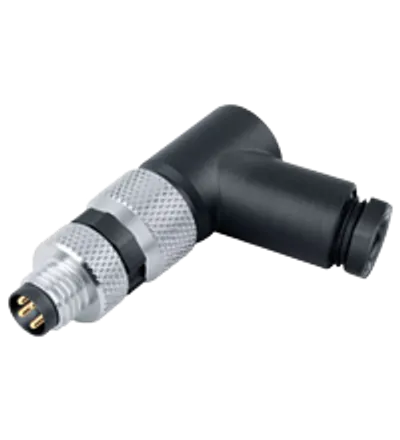

| V31S-WM-BK | 70116193 | connector M8 x 1 : IEC 61076-2-104 | 3.5 ... 5 mm | 11.63 g | gold plated (Au) |

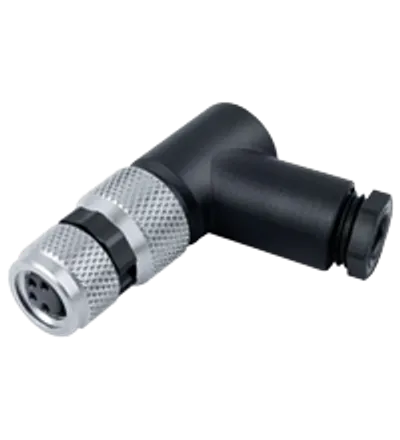

| V31-WM-BK | 70116192 | connector M8 x 1 : IEC 61076-2-104 | 3.5 ... 5 mm | 11.95 g | gold plated (Au) |

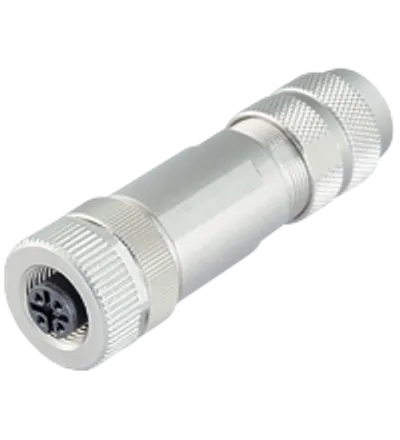

| V1D-G-ABG-PG9 | 70104267 | connector M12 x 1 : IEC 61076-2-101 | 5 ... 8 mm | 51 g | gold plated (Au) |

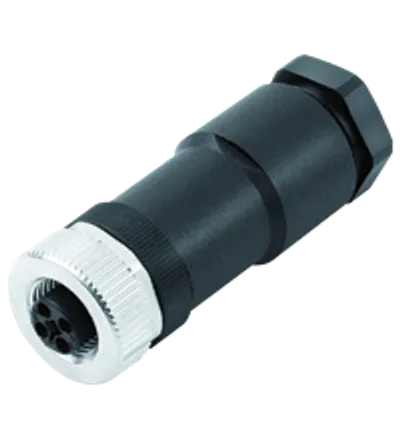

| V1T-G-PG11 | 70166321 | connector M12 x 1 : IEC 61076-2-101 | 8 ... 10 mm | 30 g | gold plated (Au) |

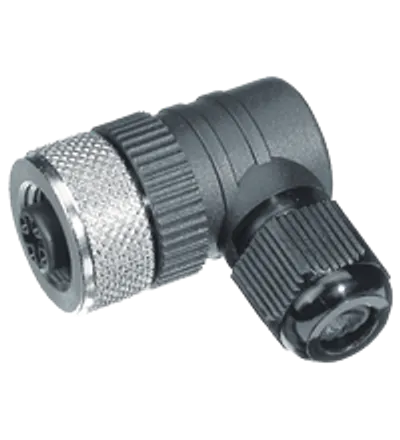

| V15-W-PG7 | 70112082 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 6 mm | 28.9 g | CuSnZn |

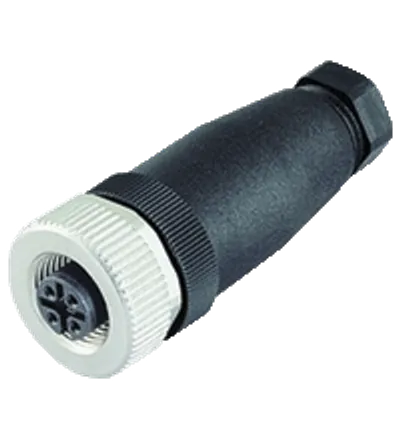

| V15-G-PG7 | 70112081 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 6 mm | 24.1 g | CuSnZn |

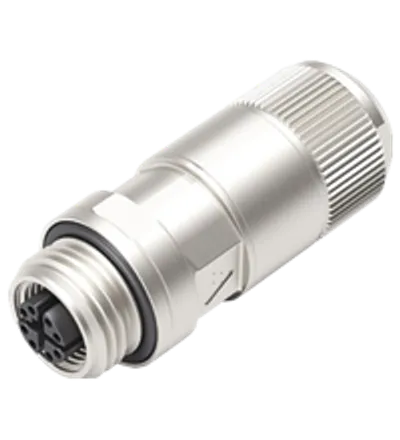

| V19X-G-ABG | 70131222 | connector M12 x 1 : IEC 61076-2-109 | 5,5 ... 9 mm | 48.25 g | Au |

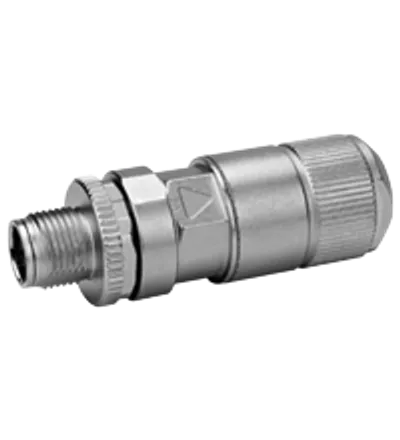

| V19SX-G-ABG | 70118035 | connector M12 x 1 : IEC 61076-2-109 | 5,5 ... 9 mm | 76 g | Au / Ni |
| V31S-M8-500 | 456944 | connector M8 x 1 : IEC 61076-2-104 | — | 13.8 g | gold plated (Au) |

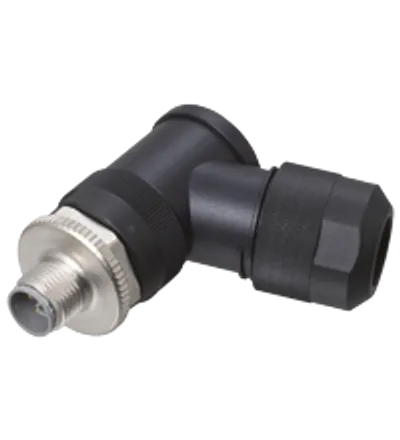

| V15SL-W-BK | 70101883 | connector M12 x 1 : IEC 61076-2-101 | 8 ... 13 mm | 48 g | gold plated (Au) |

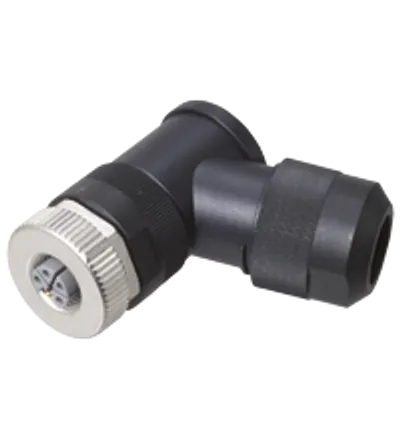

| V15L-W-BK | 70101882 | connector M12 x 1 : IEC 61076-2-111 | 8 ... 13 mm | 58 g | gold plated (Au) |

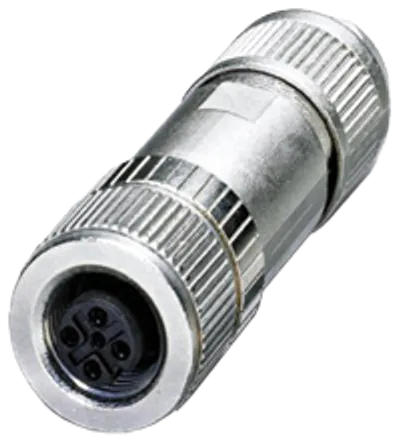

| V1D-G-ABG-PG9-Q3 | 70143670 | connector M12 x 1 : IEC 61076-2-101 | 4 ... 8 mm | 51.8 g | Ni/Au |

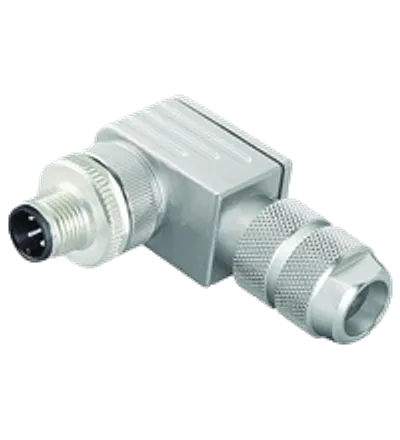

| V15S-W-ABG-PG9 | 227333 | connector M12 x 1 : IEC 61076-2-101 | 5 ... 8 mm | 68.13 g | Au |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
