Pepperl Fuchs V15-G-Q3

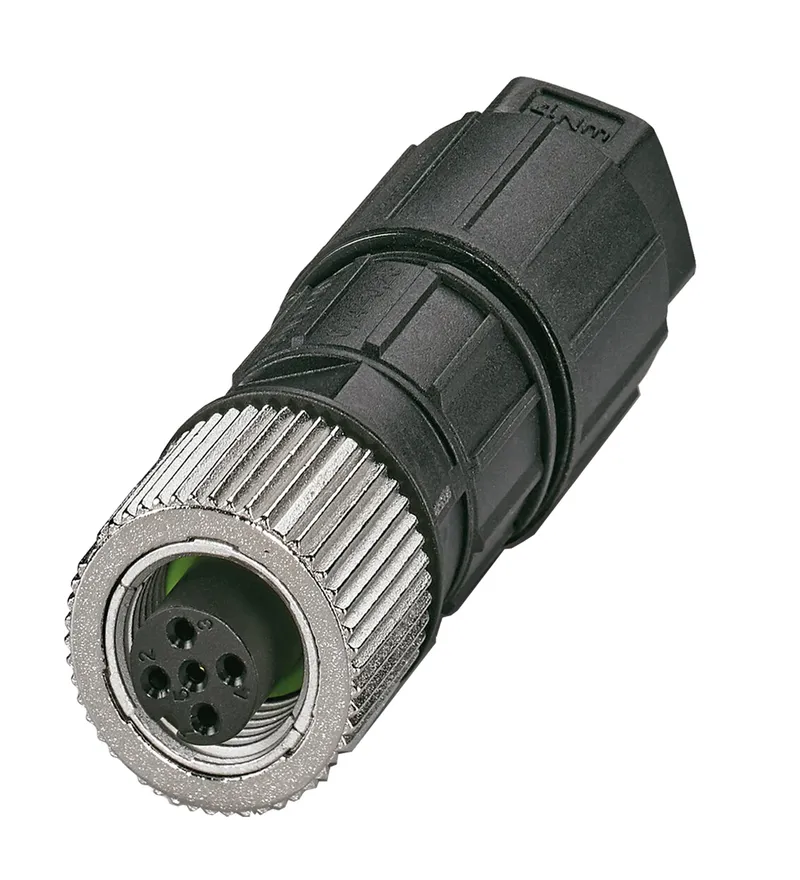

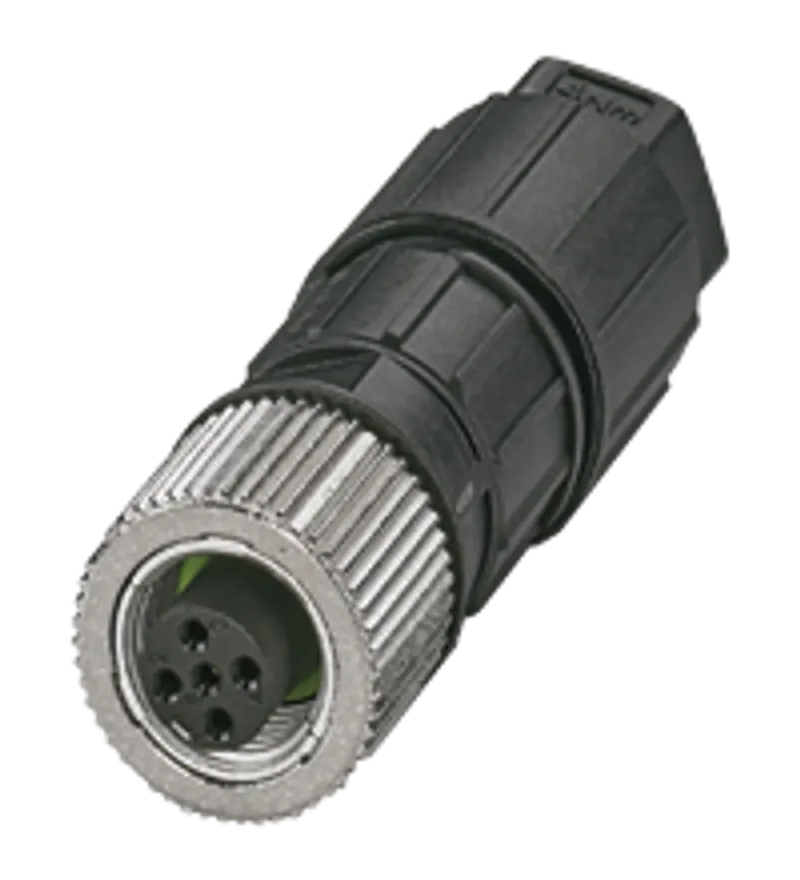

Female connector, field-attachable

MPN: V15-G-Q3
Category: Field-Attachable Connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs V15-G-Q3?

Insulation displacement connection

Metal locking

Knurled nut suitable for tool assembly

Female connector M12 straight A-coded 5-pin, for cable diameter 4 - 7 mm, field-attachable, insulation displacement connection

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70152941
Connector 1: Connection	socket
Connector 1: Construction type	M12
Connector 1: Style	straight
Connector 1: Locking	screw connection
Connector 1: Number of pins	5
Connector 1: Coding	A-coded
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Operating voltage	max. 48 V AC / 60 V DC UB
Operating current	max. 4 A IB
Insulation resistance	min. 100 MΩ

Conformity

Degree of protection	EN 60529
Plug connection	connector M12 x 1 : IEC 61076-2-101

Ambient conditions

Ambient temperature	-40 ... 85 °C (-40 ... 185 °F)
Pollution degree	3

Mechanical specifications

Plug connector: Tightening torque	0.4 Nm
Plug connector: Tool installation	straight knurling
Plug connector: Mating cycles	min. 100
Degree of protection	IP65
Connection	Insulation displacement connection for 0.14 ... 0.5 mm2 / AWG 26 ... AWG 20
Cable: Sheath diameter	4 ... 7 mm
Cable: Core cross section	0.5 mm2 / 20 AWG max.
Mass	22.2 g

Material

Plug connector: Screw connection	Zinc diecast, nickel-plated
Plug connector: Body	PA, black
Plug connector: Seal	FKM
Plug connector: Contact surface	Ni/Au
Plug connector: Flammability	V-0

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet V15-G-Q3PDF

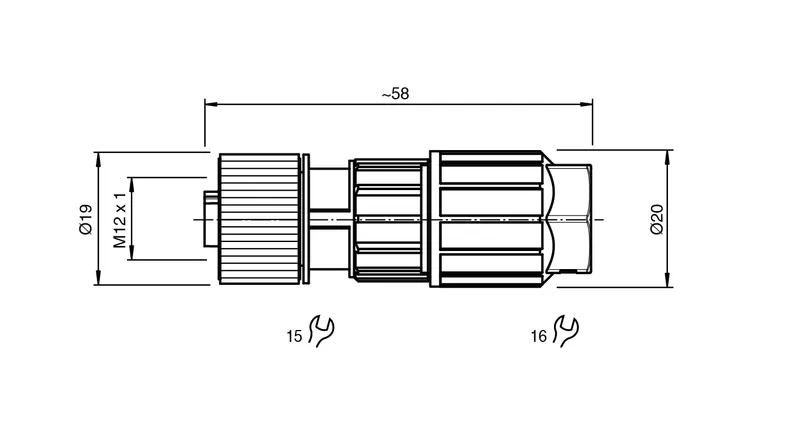

CAD & dimension drawings

3-D model (STEP) V15-G-Q3STP · 2.5 MB

Certificates (2)

V15-G-Q3: frequently asked questions

When can V15-G-Q3 be shipped?

V15-G-Q3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up V15-G-Q3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for V15-G-Q3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15-G-Q3, subject to availability and destination.
