Pepperl Fuchs V1D-G-ABG-PG9
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1D-G-ABG-PG9 be shipped?
V1D-G-ABG-PG9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1D-G-ABG-PG9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1D-G-ABG-PG9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1D-G-ABG-PG9, subject to availability and destination.

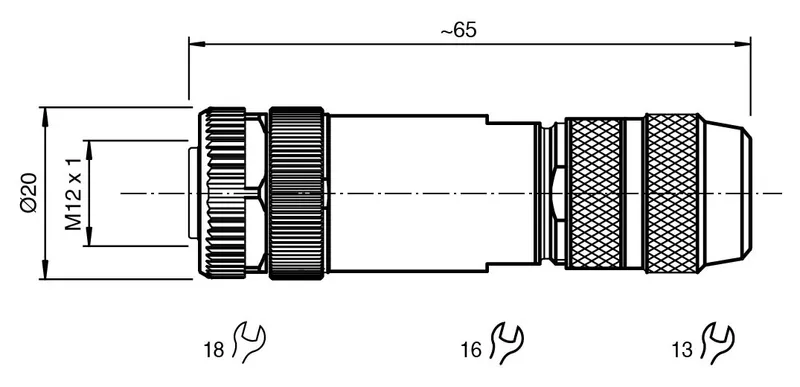

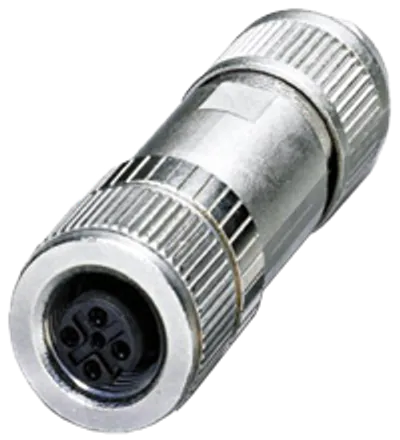

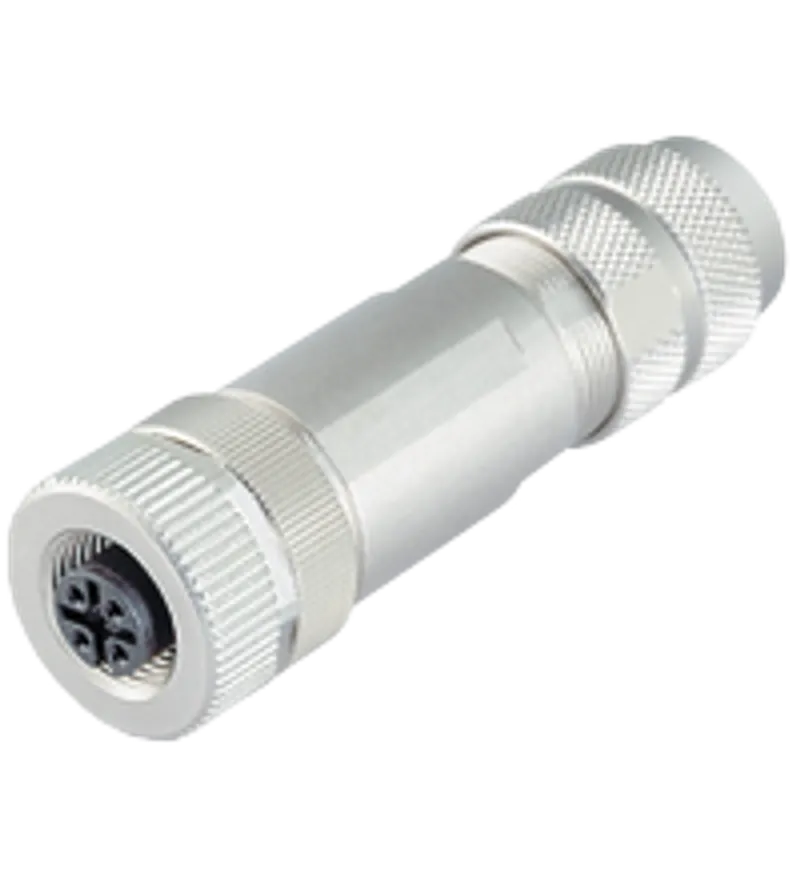

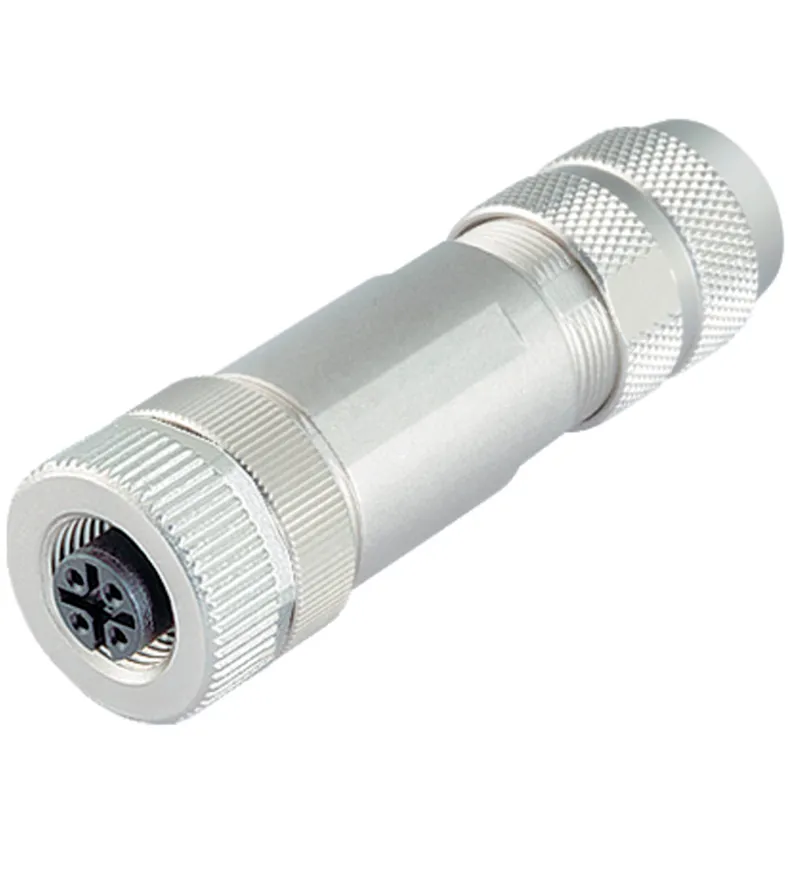

Female connector, field-attachable. Female connector M12 straight D-coded 4-pin, for cable diameter 5 - 8 mm, shielded, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Rated operating voltage: max. 250 V AC/DC. Rated operating current: max. 4 A. Surge protection: Category II. Insulation resistance: min. 10000 MΩ. Degree of protection: EN 60529. Fieldbus standard: PROFINET. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801). UL File Number: E363587. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100Shieldingiris spring shielding: . Tightening torque: 0.6 Nm. Tool installation: straight knurling , hexagon nut SW = 18 mm. Mating cycles: min. 100. Shielding: iris spring shielding. Degree of protection: IP67. Connection: screw terminals for max. 0.75 mm2 / AWG 18. Cable: . Sheath diameter5 ... 8 mmCore cross section0.75 mm2 / 18 AWG max.: . Sheath diameter: 5 ... 8 mm. Core cross section: 0.75 mm2 / 18 AWG max.. Installation: screw terminals 0.4 Nm pressure nut 1 Nm. Mass: 51 g. Note: installation: shield diameter ≤ 5.5 mm see instruction leaftlet. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Contact surface: gold plated (Au)
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | D-coded |
Electrical specifications
| Rated operating voltage | max. 250 V AC/DC Ue |
| Rated operating current | max. 4 A Ie |
| Surge protection | Category II |
| Insulation resistance | min. 10000 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | PROFINET |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Component category | CAT5 (IEC 11801) |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100Shieldingiris spring shielding | Tightening torque |
| Tightening torque | 0.6 Nm |
| Tool installation | straight knurling , hexagon nut SW = 18 mm |
| Mating cycles | min. 100 |
| Shielding | iris spring shielding |
| Degree of protection | IP67 |
| Connection | screw terminals for max. 0.75 mm2 / AWG 18 |
| Cable | |
| Sheath diameter5 ... 8 mmCore cross section0.75 mm2 / 18 AWG max. | Sheath diameter |
| Sheath diameter | 5 ... 8 mm |
| Core cross section | 0.75 mm2 / 18 AWG max. |
| Installation | screw terminals 0.4 Nm pressure nut 1 Nm |
| Mass | 51 g |
| Note | installation: shield diameter ≤ 5.5 mm see instruction leaftlet |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedContact surfacegold plated (Au) | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | Zinc diecast, nickel-plated |
| Contact surface | gold plated (Au) |
