Pepperl Fuchs V15SL-W-BK
Male connector, field-attachable
- MPN
- V15SL-W-BK
- Category
- Field-Attachable Connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs V15SL-W-BK?
Field-attachable
Screw terminal connection
Metal locking
Knurled nut suitable for tool assembly
UL Recognized Component

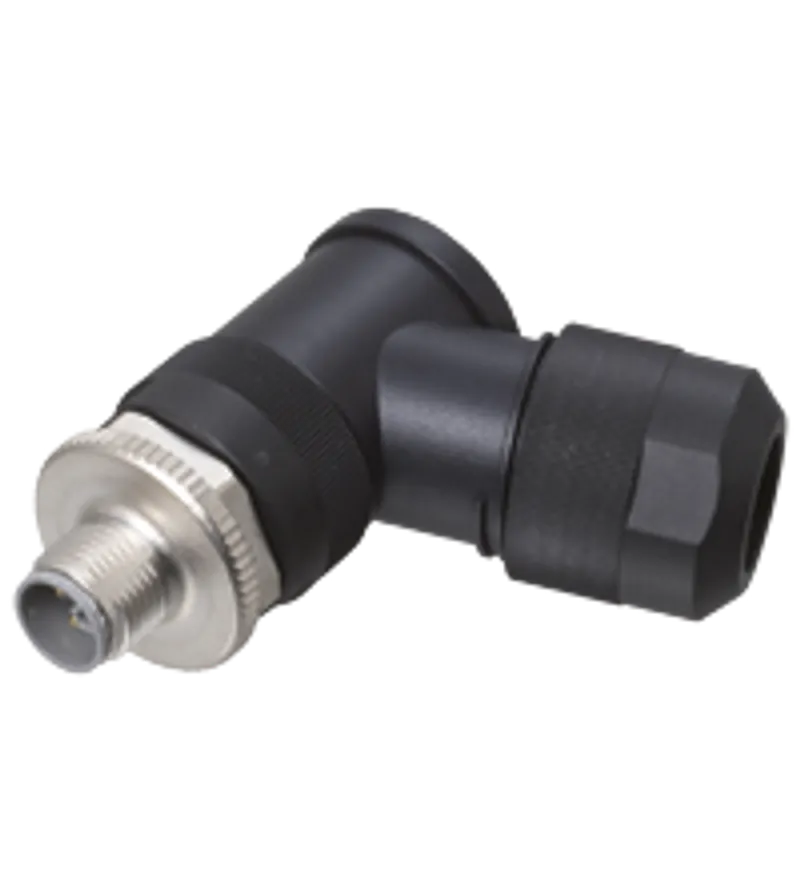

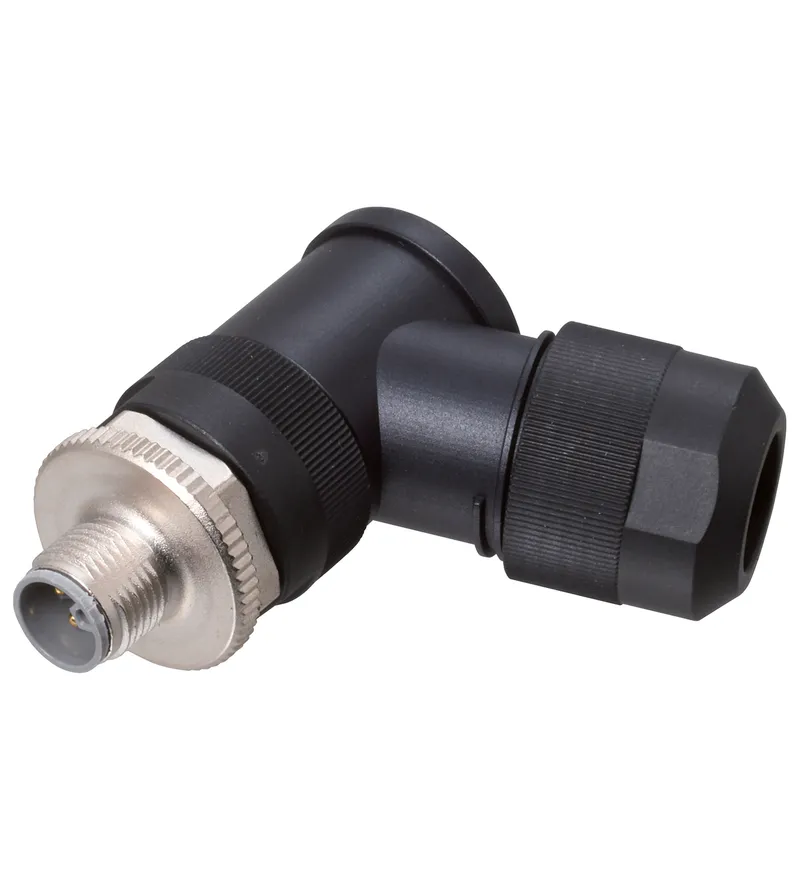

Male connector M12 angled L-coded 5-pin, for cable diameter 8 - 13 mm, field-attachable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70101883 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |

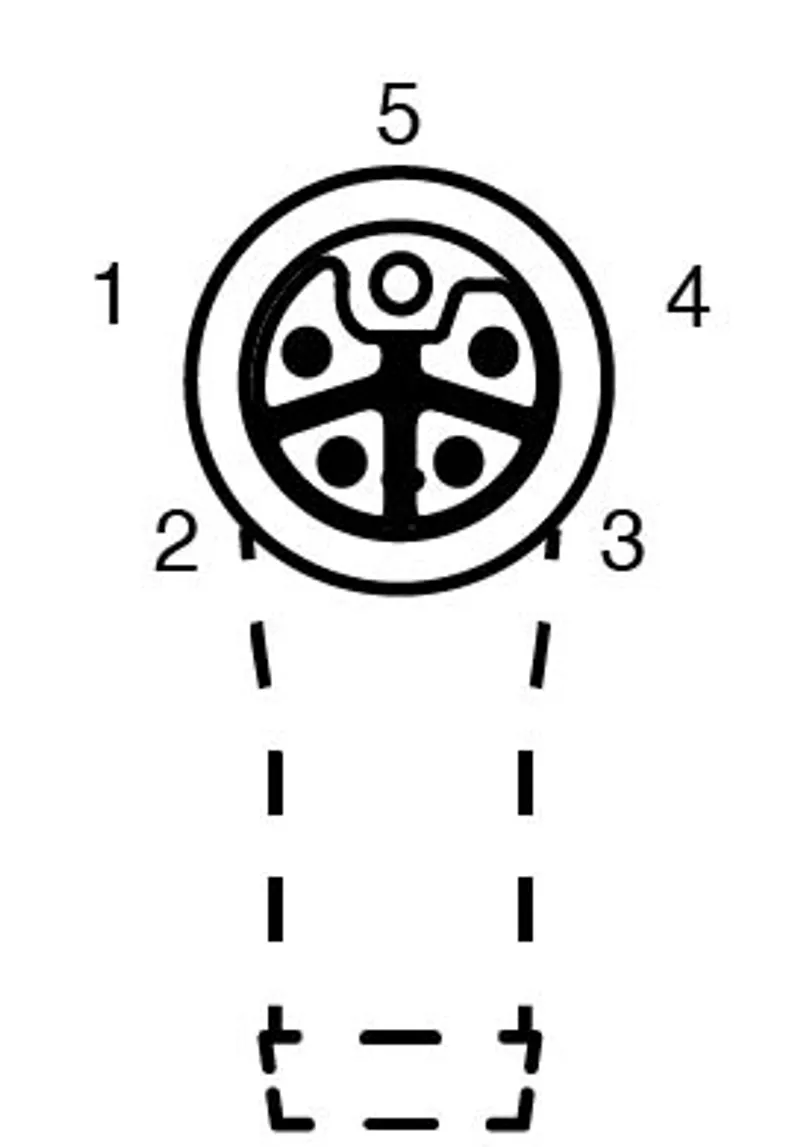

| Connector 1: Number of pins | 5 |
| Connector 1: Coding | L-coded |
| Connector 1: Customization | Coding rotateable in steps of 72° |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated operating voltage | max. 48 V AC / 63 V DC Ue |
| Rated operating current | 1.5 mm², AWG 16 : 12 A 2.5 mm², AWG 14 : 16 A Ie |
| Surge protection | Category III |
| Overvoltage category | III |
| Insulation resistance | min. 10000 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 105 °C (-40 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |

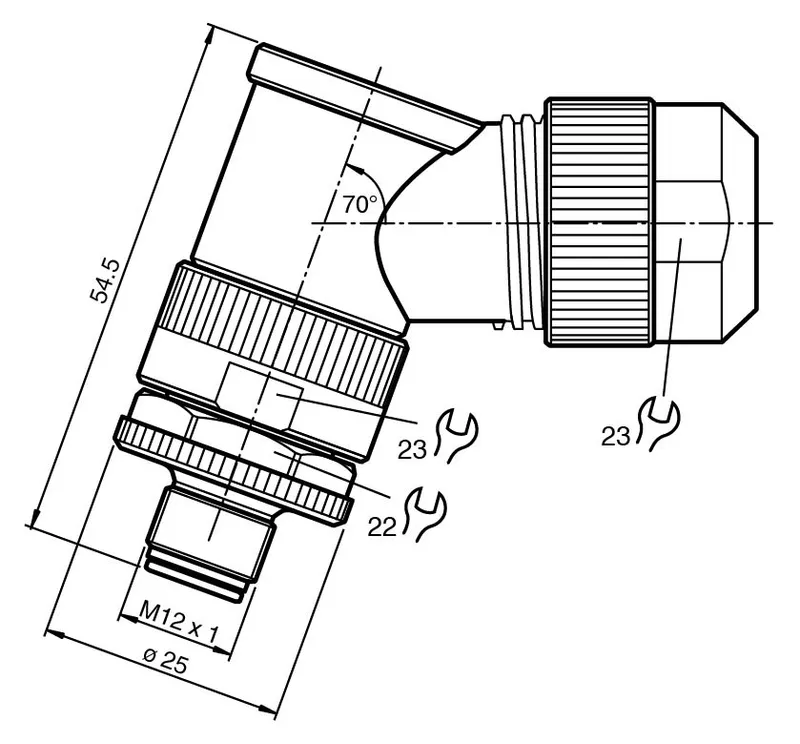

| Plug connector: Tool installation | straight knurling , hexagon nut SW = 22 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Connection | screw terminals for max. 1.5 mm2 / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm2 / AWG 14 without wire end ferrules |
| Cable: Sheath diameter | 8 ... 13 mm |
| Cable: Core cross section | 2.5 mm2 / 14 AWG max. |
| Installation | screw terminals 0.4 Nm |
| Mass | 48 g |
Material
| Plug connector: Screw connection | CuZn, nickel-plated |
| Plug connector: Body | PA, black |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-0 |
