Pepperl Fuchs V31-WM-BK

Female connector, field-attachable

MPN: V31-WM-BK
Category: Field-Attachable Connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs V31-WM-BK?

Screw terminal connection

Metal locking

UL Recognized Component

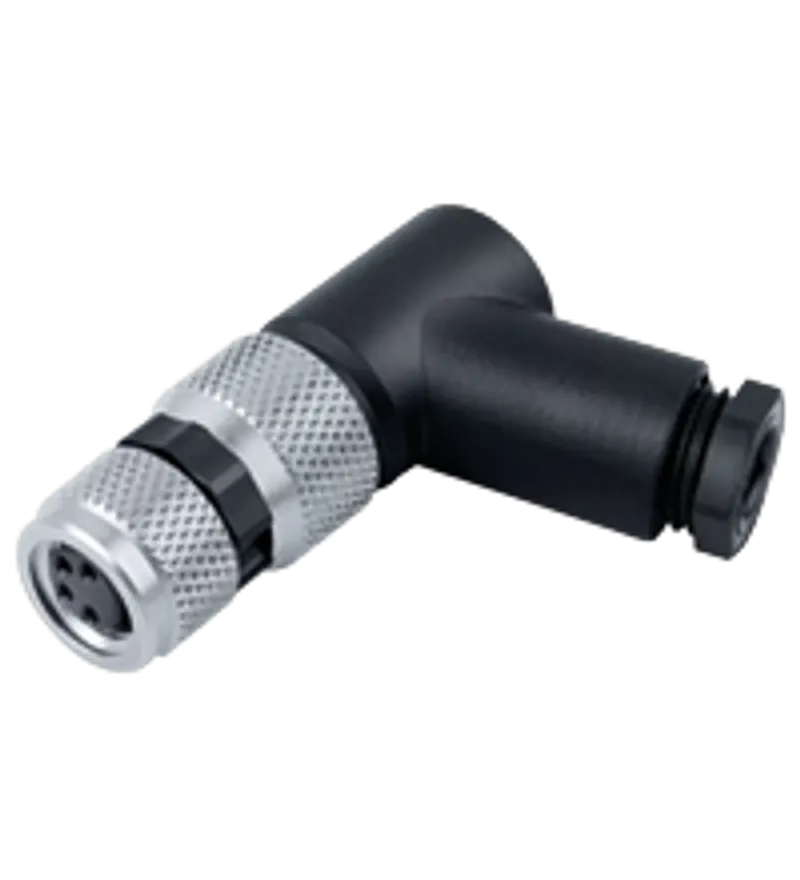

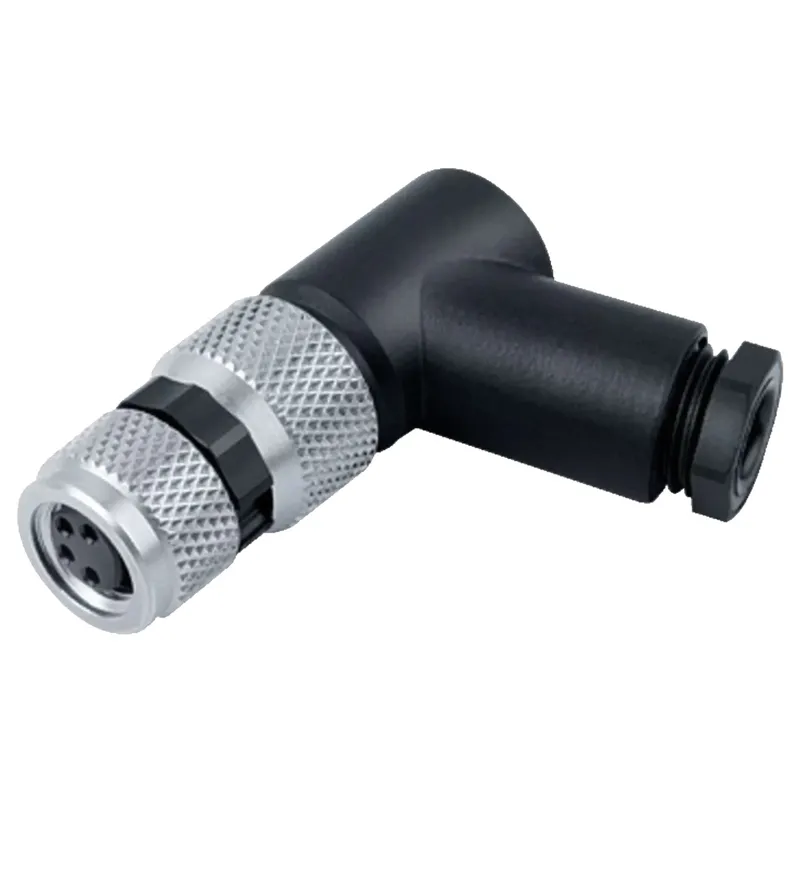

Female connector M8 angled A-coded 4-pin, for cable diameter 3,5 - 5 mm, field-attachable

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70116192
Connector 1: Connection	socket
Connector 1: Construction type	M8
Connector 1: Style	angled
Connector 1: Locking	screw connection

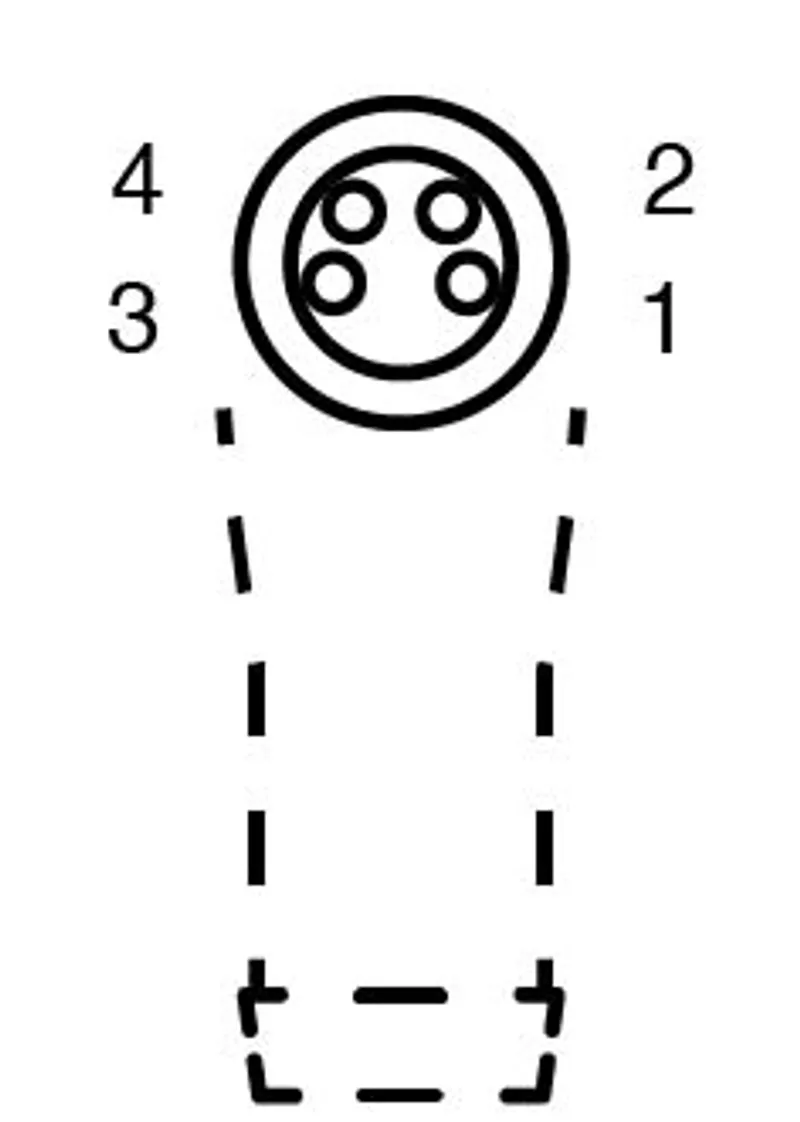

Connector 1: Number of pins	4
Connector 1: Coding	A-coded
Connector 1: Customization	Coding rotateable in steps of 180°
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Operating voltage	max. 30 V AC/DC UB
Operating current	max. 4 A IB

Conformity

Degree of protection	EN 60529

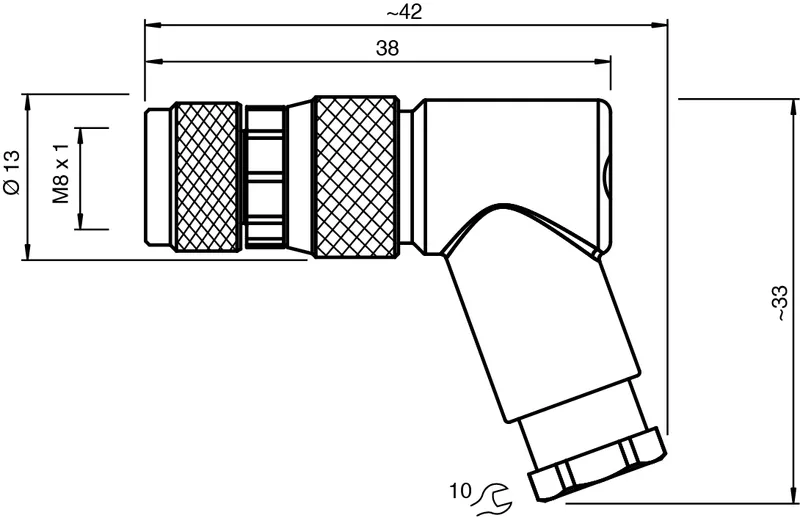

Plug connection	connector M8 x 1 : IEC 61076-2-104

Approvals and certificates

UL File Number

E363587

Ambient conditions

Ambient temperature	-40 ... 85 °C (-40 ... 185 °F)
Pollution degree	3

Mechanical specifications

Plug connector: Tightening torque	0.5 Nm
Plug connector: Tool installation	cross-hatched knurling
Plug connector: Mating cycles	min. 100
Degree of protection	IP67
Connection	screw terminals for 0.14 ... 0.5 mm2 / AWG 26 ... AWG 20
Cable: Sheath diameter	3.5 ... 5 mm
Cable: Core cross section	0.5 mm2 / 20 AWG max.
Installation	screw terminals 0.4 Nm pressure nut 0.2 ... 0.3 Nm
Mass	11.95 g

Material

Plug connector: Screw connection	CuZn, nickel-plated
Plug connector: Body	PBT, black
Plug connector: Contact surface	gold plated (Au)

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet V31-WM-BKPDF
