Pepperl Fuchs V1D-G-ABG-PG9-Q3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1D-G-ABG-PG9-Q3 be shipped?
V1D-G-ABG-PG9-Q3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1D-G-ABG-PG9-Q3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1D-G-ABG-PG9-Q3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1D-G-ABG-PG9-Q3, subject to availability and destination.

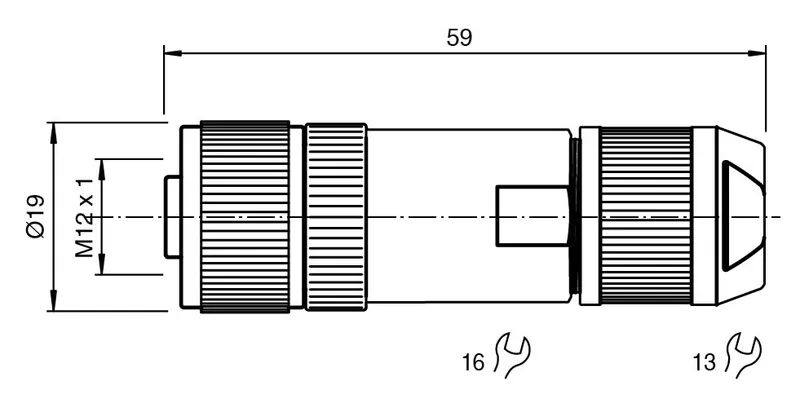

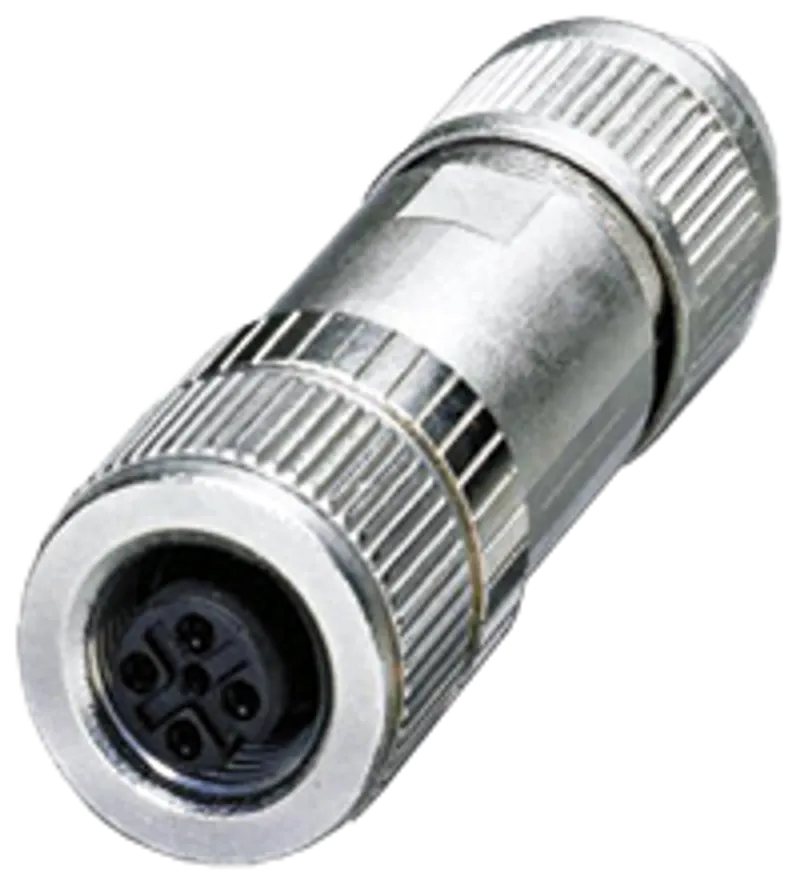

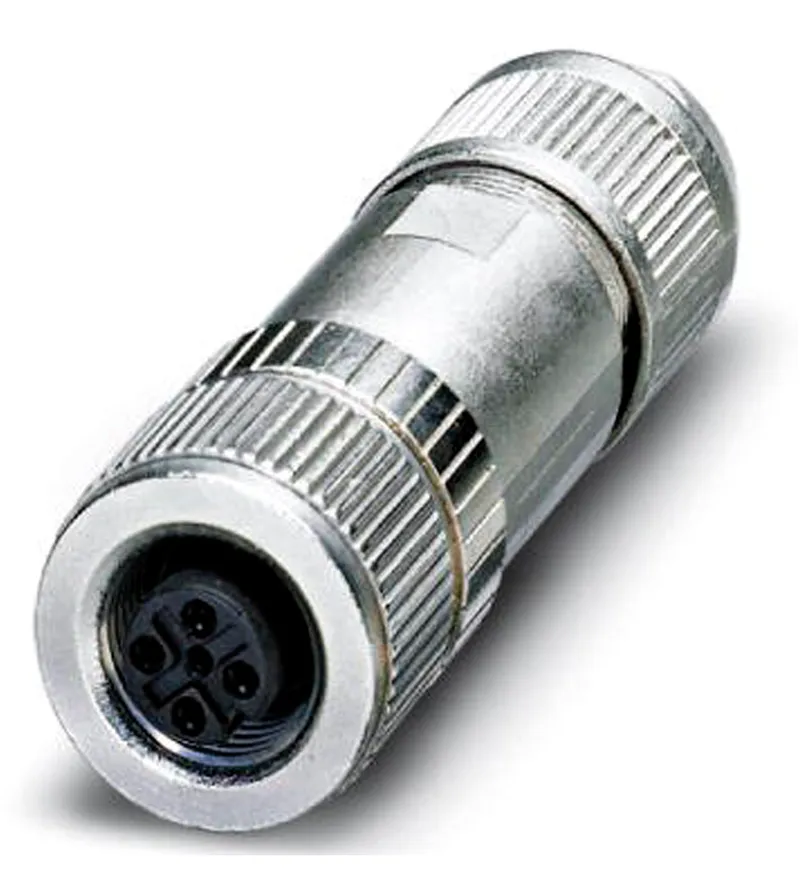

Female connector, field-attachable. Female connector M12 straight D-coded 4-pin, shielded, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: D-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 1.75 A. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Fieldbus standard: PROFINET. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801). Flammability: UL 94. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nutTool installationstraight knurling , SW = 16 mm , SW = 13 mmMating cyclesmin. 100Shieldingshield connected to connector: . Tightening torque: 0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nut. Tool installation: straight knurling , SW = 16 mm , SW = 13 mm. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP67. Connection: Insulation displacement connection for 0.25 ... 0.34 mm2. Cable: . Sheath diameter4 ... 8 mmCore cross section0.34 mm2 / 22 AWG max.: . Sheath diameter: 4 ... 8 mm. Core cross section: 0.34 mm2 / 22 AWG max.. Mass: 51.8 g. Plug connector: . Screw connectionbrass, nickel-platedBodyZinc diecast, nickel-platedSealNeopreneContact surfaceNi/AuFlammabilityV-0: . Screw connection: brass, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: Neoprene. Contact surface: Ni/Au. Flammability: V-0
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingD-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | angled |
| Locking | screw connection |

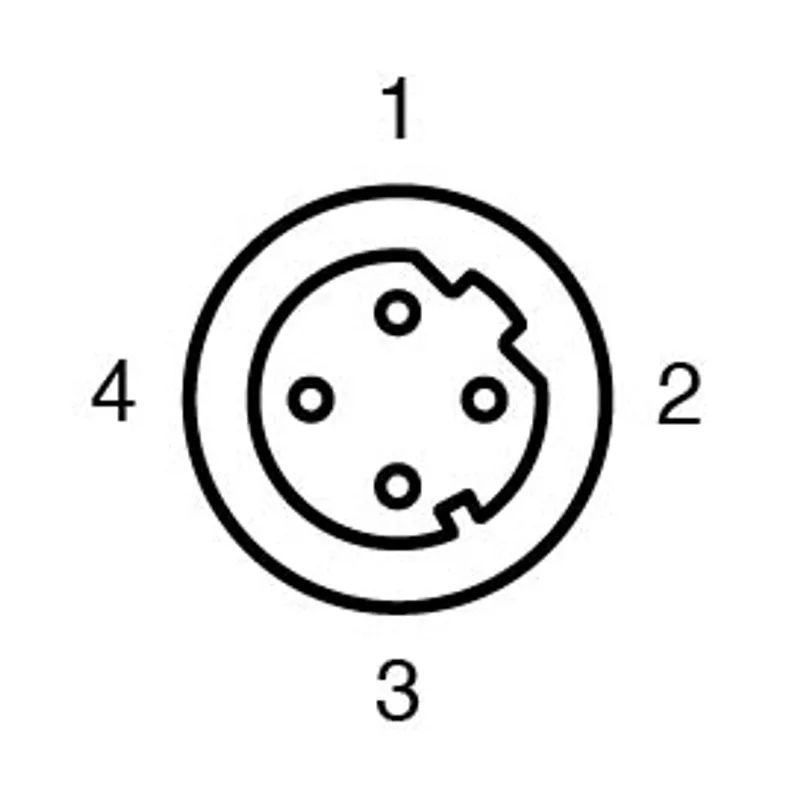

| Number of pins | 4 |
| Coding | D-coded |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 1.75 A IB |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | PROFINET |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Component category | CAT5 (IEC 11801) |
| Flammability | UL 94 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nutTool installationstraight knurling , SW = 16 mm , SW = 13 mmMating cyclesmin. 100Shieldingshield connected to connector | Tightening torque |
| Tightening torque | 0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nut |
| Tool installation | straight knurling , SW = 16 mm , SW = 13 mm |
| Mating cycles | min. 100 |
| Shielding | shield connected to connector |
| Degree of protection | IP67 |
| Connection | Insulation displacement connection for 0.25 ... 0.34 mm2 |
| Cable | |
| Sheath diameter4 ... 8 mmCore cross section0.34 mm2 / 22 AWG max. | Sheath diameter |
| Sheath diameter | 4 ... 8 mm |
| Core cross section | 0.34 mm2 / 22 AWG max. |
| Mass | 51.8 g |
Material
| Plug connector | |
| Screw connectionbrass, nickel-platedBodyZinc diecast, nickel-platedSealNeopreneContact surfaceNi/AuFlammabilityV-0 | Screw connection |
| Screw connection | brass, nickel-plated |
| Body | Zinc diecast, nickel-plated |
| Seal | Neoprene |
| Contact surface | Ni/Au |
| Flammability | V-0 |
