Pepperl Fuchs V1T-G-PG11
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1T-G-PG11 be shipped?
V1T-G-PG11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1T-G-PG11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1T-G-PG11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1T-G-PG11, subject to availability and destination.

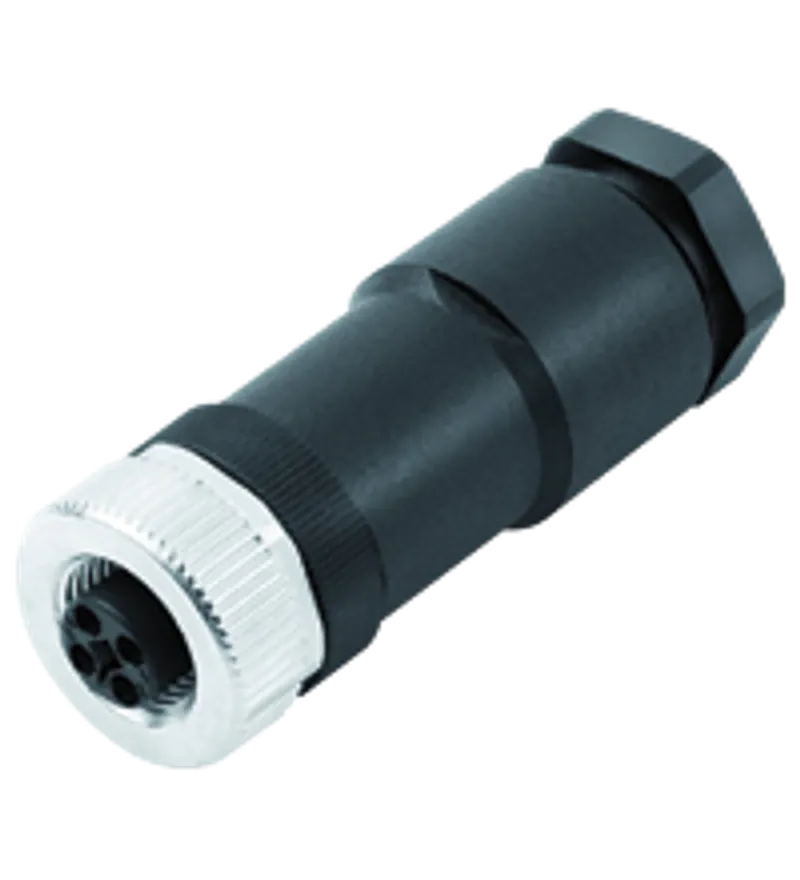

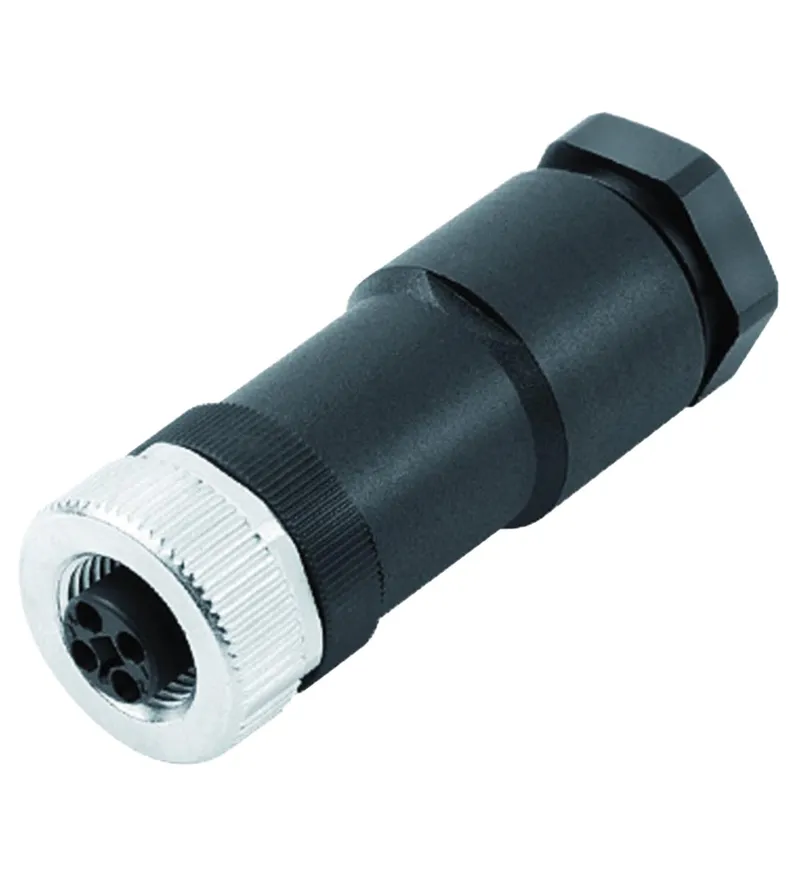

Female connector, field-attachable. Female connector M12 straight T-coded 4-pin, for cable diameter 8 - 10 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingT-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: T-coded. Rated operating voltage: max. 48 V AC / 63 V DC. Rated operating current: max. 12 A. Volume resistance: < 5 mΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. UL File Number: E363587. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Tool installation: straight knurling , hexagon nut SW = 18 mm. Mating cycles: min. 100. Degree of protection: IP67. Connection: screw terminals for max. 1.5 mm2 / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm2 / AWG 14 without wire end ferrules. Cable: . Sheath diameter8 ... 10 mmCore cross section2.5 mm2 / 14 AWG max.: . Sheath diameter: 8 ... 10 mm. Core cross section: 2.5 mm2 / 14 AWG max.. Mass: 30 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPA, blackContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Body: PA, black. Contact surface: gold plated (Au). Flammability: V-0
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingT-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |

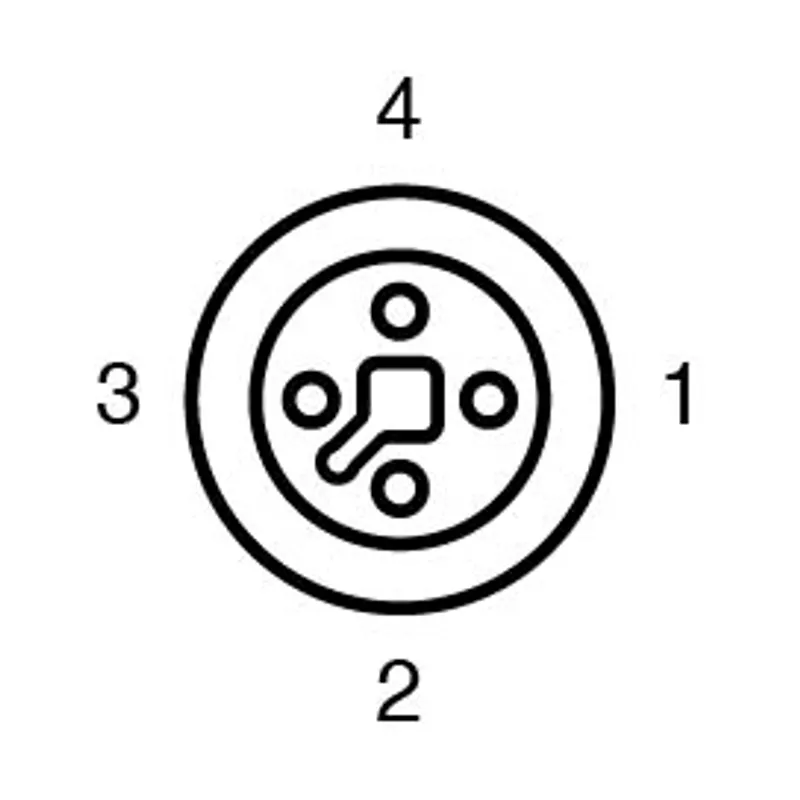

| Number of pins | 4 |
| Coding | T-coded |
Electrical specifications
| Rated operating voltage | max. 48 V AC / 63 V DC Ue |
| Rated operating current | max. 12 A Ie |
| Volume resistance | < 5 mΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.6 Nm |

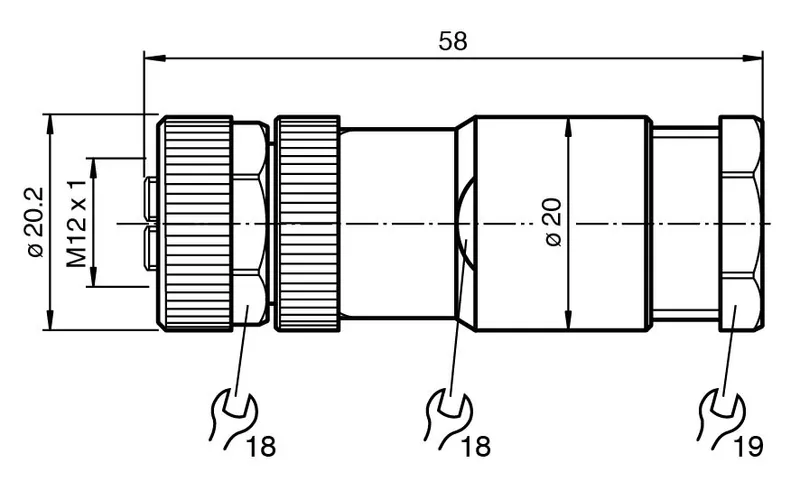

| Tool installation | straight knurling , hexagon nut SW = 18 mm |
| Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Connection | screw terminals for max. 1.5 mm2 / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm2 / AWG 14 without wire end ferrules |
| Cable | |
| Sheath diameter8 ... 10 mmCore cross section2.5 mm2 / 14 AWG max. | Sheath diameter |
| Sheath diameter | 8 ... 10 mm |
| Core cross section | 2.5 mm2 / 14 AWG max. |
| Mass | 30 g |
Material
| Halogen-free | yes |
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyPA, blackContact surfacegold plated (Au)FlammabilityV-0 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | PA, black |
| Contact surface | gold plated (Au) |
| Flammability | V-0 |
