Pepperl Fuchs V19X-G-ABG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V19X-G-ABG be shipped?
V19X-G-ABG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V19X-G-ABG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V19X-G-ABG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V19X-G-ABG, subject to availability and destination.

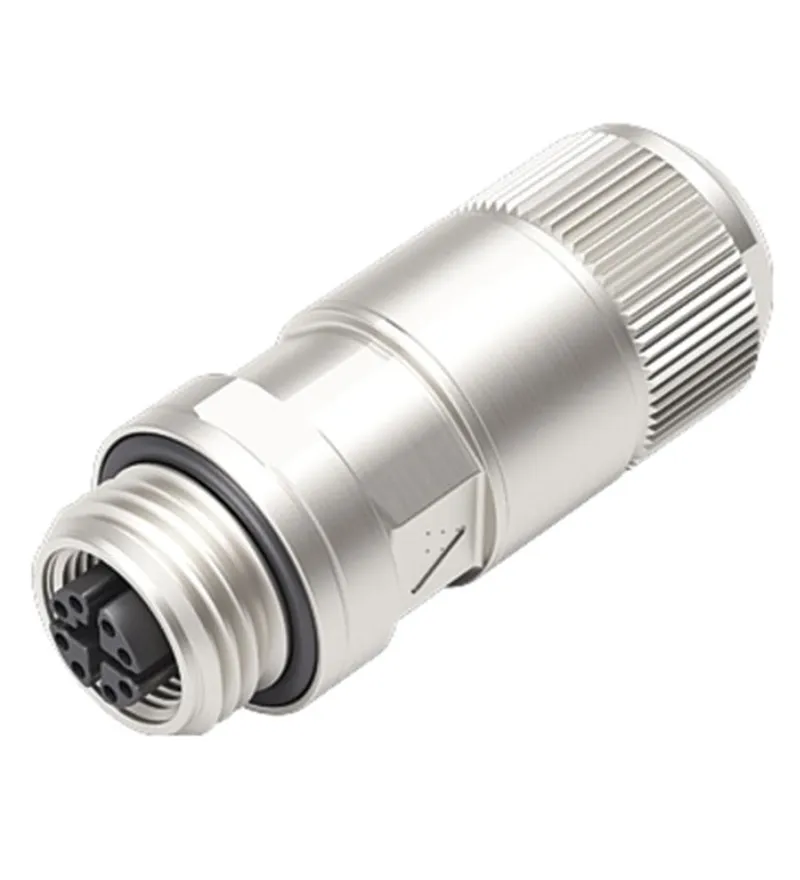

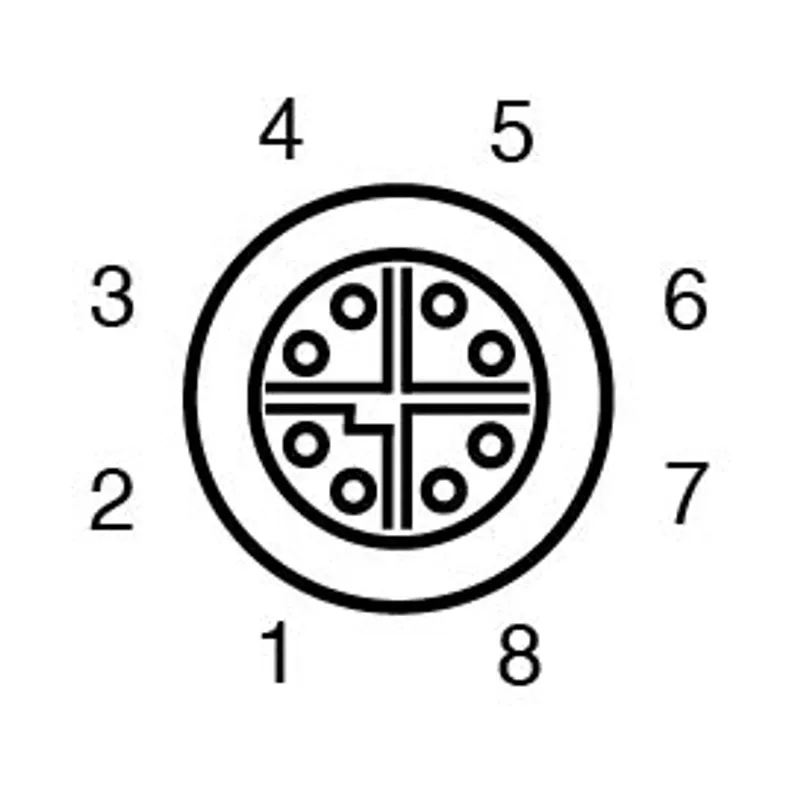

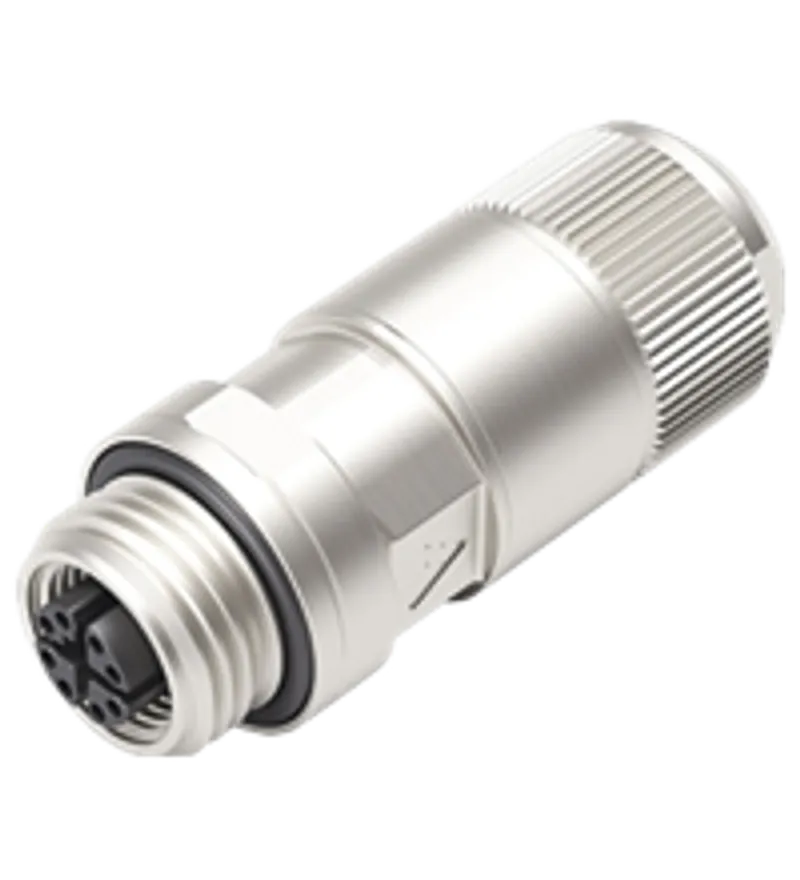

Female connector, field-attachable. Female connector M12 straight X-coded 8-pin, Cat6A, shielded, for cable diameter 5.5 - 9 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingX-codedCustomizationsuitable for wall bushing: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: X-coded. Customization: suitable for wall bushing. Operating voltage: max. 50 V AC / 60 V DC. Operating current: max. 0.5 A. Volume resistance: max. 15 mΩ. Contact resistance: max. 5 MΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Fieldbus standard: IEEE 802.3an 10GBASE-T. Transmission technology: suitable for PoE+ Power over Ethernet IEEE 802.3at. Plug connection: connector M12 x 1 : IEC 61076-2-109. Component category: CAT6A (IEC 11801, EN 50173). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationhexagon nut SW = 19 mmMating cyclesmin. 100Shieldingvia Body: . Tightening torque: 0.6 Nm. Tool installation: hexagon nut SW = 19 mm. Mating cycles: min. 100. Shielding: via Body. Degree of protection: IP67. Connection: Wire manager included with delivery. Cable: . Sheath diameter5,5 ... 9 mmCore cross section0.1 ... 0.34 mm2 / 27 ... 22 AWG: . Sheath diameter: 5,5 ... 9 mm. Core cross section: 0.1 ... 0.34 mm2 / 27 ... 22 AWG. Mass: 48.25 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-plated / brass, nickel-platedContact surfaceAu: . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated / brass, nickel-plated. Contact surface: Au
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingX-codedCustomizationsuitable for wall bushing | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 8 |
| Coding | X-coded |
| Customization | suitable for wall bushing |
Electrical specifications
| Operating voltage | max. 50 V AC / 60 V DC UB |
| Operating current | max. 0.5 A IB |
| Volume resistance | max. 15 mΩ |
| Contact resistance | max. 5 MΩ |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | IEEE 802.3an 10GBASE-T |
| Transmission technology | suitable for PoE+ Power over Ethernet IEEE 802.3at |
| Plug connection | connector M12 x 1 : IEC 61076-2-109 |
| Component category | CAT6A (IEC 11801, EN 50173) |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |

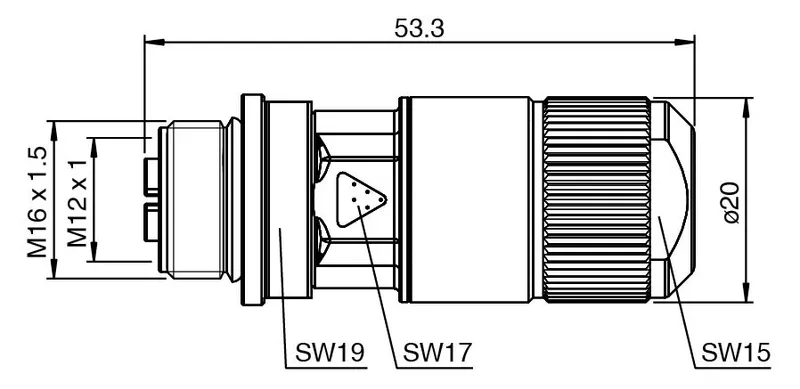

Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmTool installationhexagon nut SW = 19 mmMating cyclesmin. 100Shieldingvia Body | Tightening torque |
| Tightening torque | 0.6 Nm |
| Tool installation | hexagon nut SW = 19 mm |
| Mating cycles | min. 100 |
| Shielding | via Body |
| Degree of protection | IP67 |
| Connection | Wire manager included with delivery |
| Cable | |
| Sheath diameter5,5 ... 9 mmCore cross section0.1 ... 0.34 mm2 / 27 ... 22 AWG | Sheath diameter |
| Sheath diameter | 5,5 ... 9 mm |
| Core cross section | 0.1 ... 0.34 mm2 / 27 ... 22 AWG |
| Mass | 48.25 g |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-plated / brass, nickel-platedContact surfaceAu | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | Zinc diecast, nickel-plated / brass, nickel-plated |
| Contact surface | Au |
