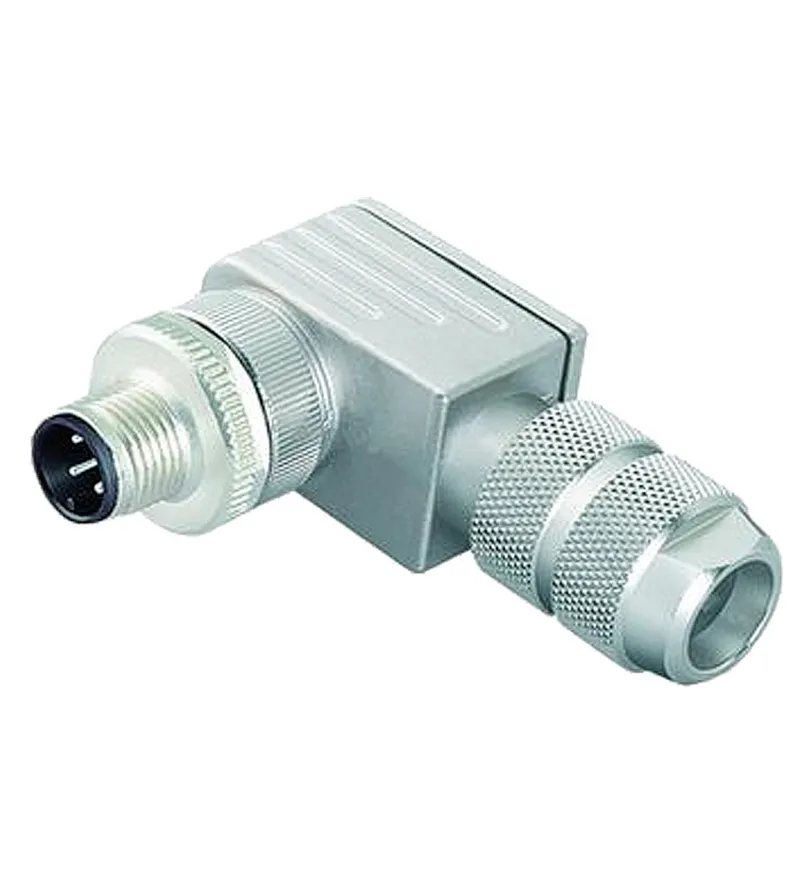

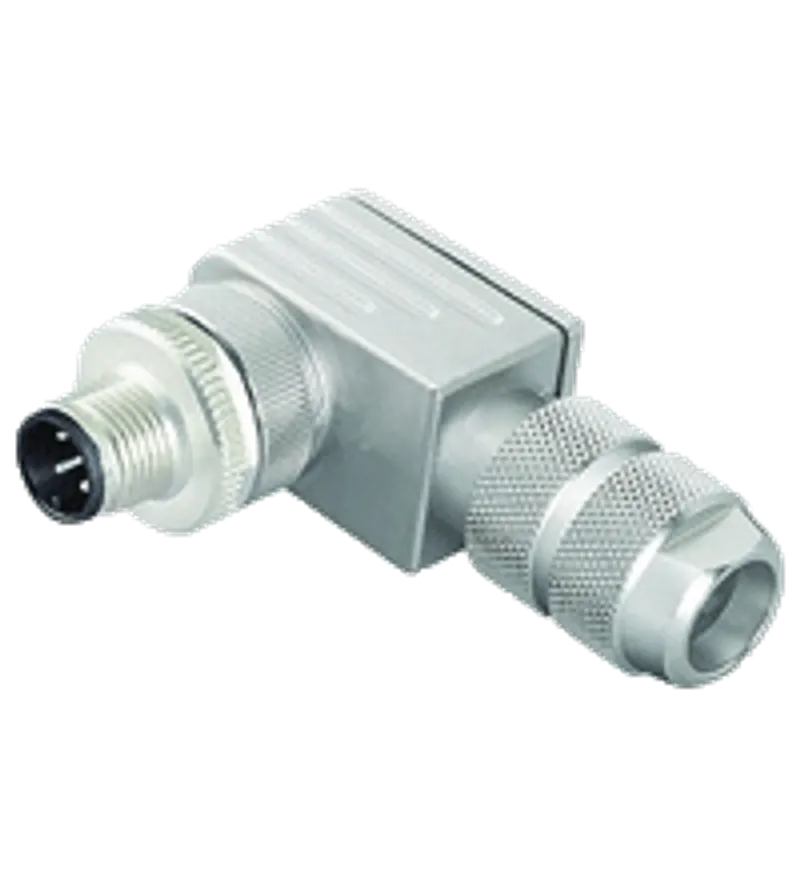

Pepperl Fuchs V15S-W-ABG-PG9
Male connector, field-attachable
- MPN
- V15S-W-ABG-PG9
- Category
- Field-Attachable Connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V15S-W-ABG-PG9?
Field-attachable, shieldable
Metal housing
Iris spring shielding
cURus approval
Male connector M12 angled A-coded 5-pin, for cable diameter 5 - 8 mm, shielded, field-attachable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 227333 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |

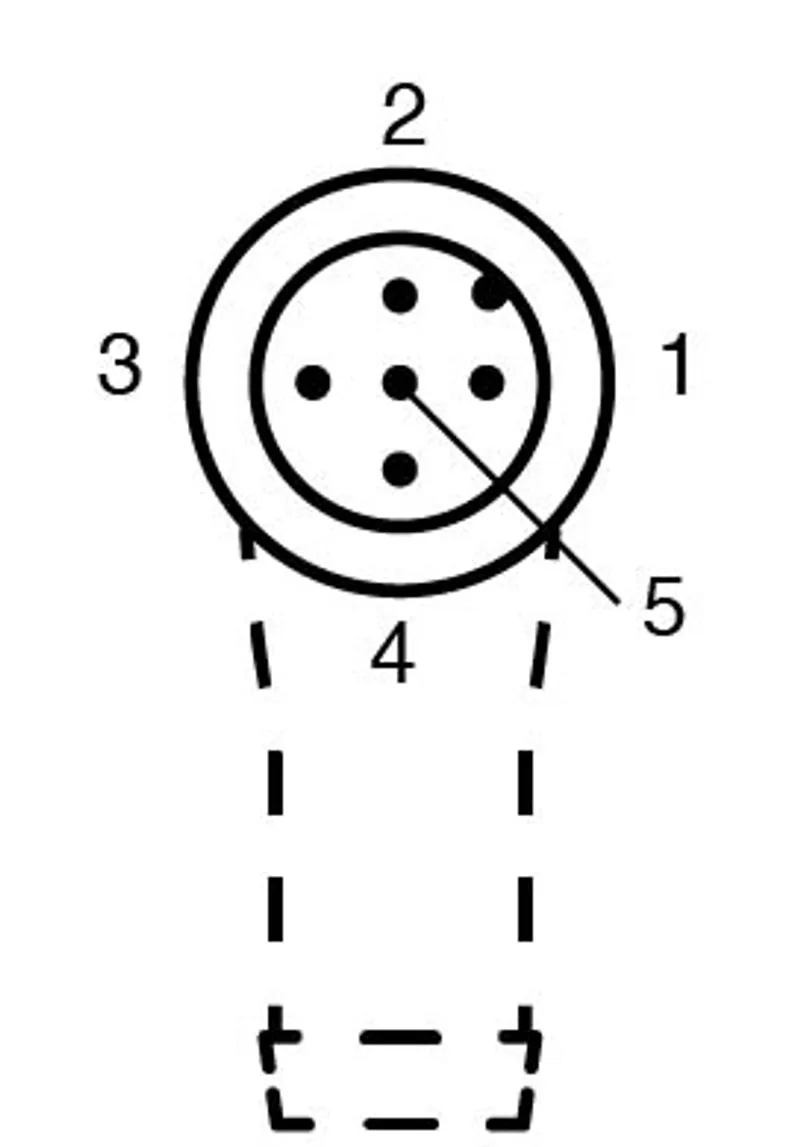

| Connector 1: Number of pins | 5 |
| Connector 1: Coding | A-coded |
| Connector 1: Customization | Coding rotateable in steps of 90° |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | 4 A IB |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Tool installation | straight knurling , hexagon nut SW = 18 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | iris spring shielding |
| Degree of protection | IP67 |
| Connection | screw terminals for max. 0.75 mm2 / AWG 18 |
| Cable: Sheath diameter | 5 ... 8 mm |
| Cable: Core cross section | 0.75 mm2 / 18 AWG max. |
| Mass | 68.13 g |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | Zinc diecast, nickel-plated |
| Plug connector: Seal | NBR |
| Plug connector: Contact surface | Au |
