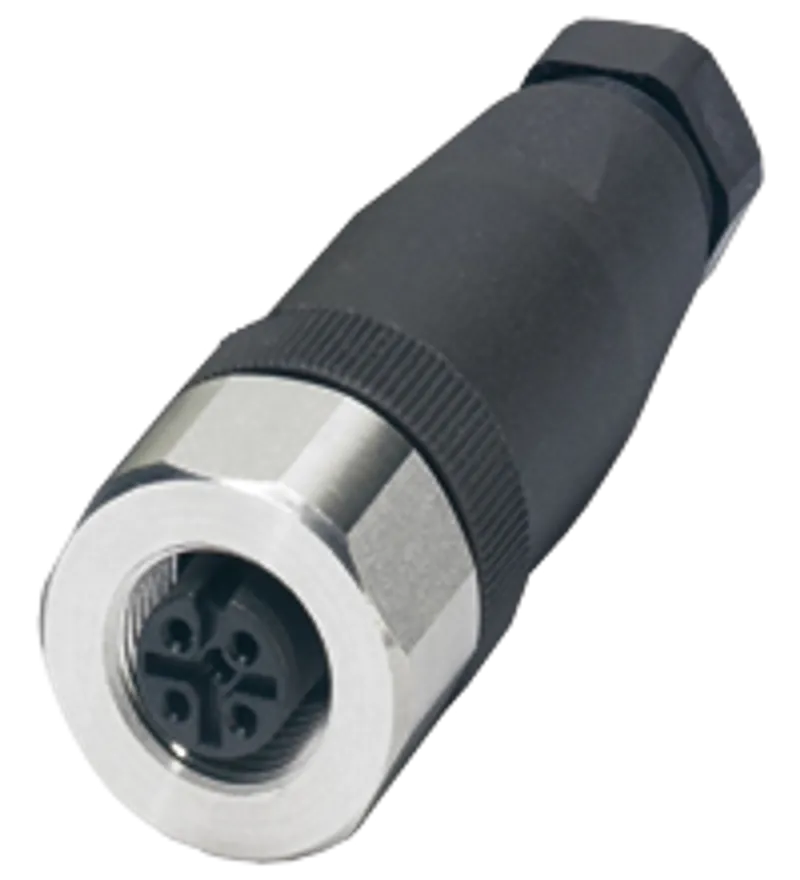

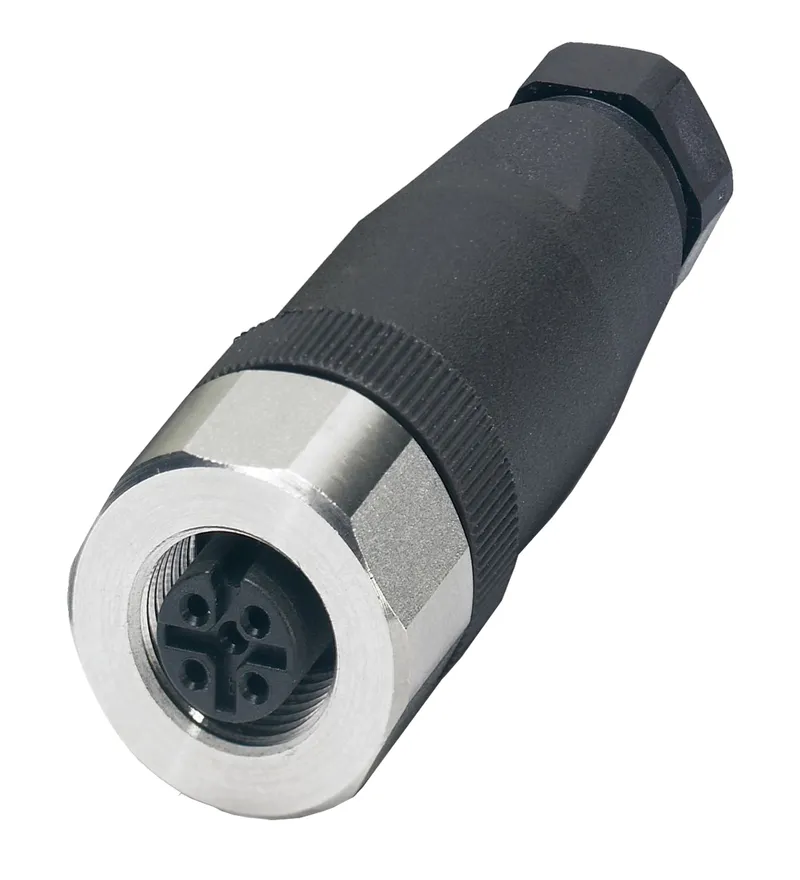

Pepperl Fuchs V1-GV4A-PG7
Female connector, field-attachable
- MPN
- V1-GV4A-PG7
- Category
- Field-Attachable Connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V1-GV4A-PG7?
Stainless steel coupling nut
Screw terminal connection
Screw connection suitable for tool assembly
Female connector M12 straight A-coded 4-pin, for cable diameter 4 - 6 mm, field-attachable, screw connection stainless steel
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70180111 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
| Surge protection | Category II |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.4 Nm |
| Plug connector: Tool installation | straight knurling , hexagon nut SW = 18 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP65 / IP67 / IP69K |
| Connection | screw terminals for 0.25 ... 0.75 mm2 / AWG 24 ... AWG 18 without wire end ferrule screw terminals for 0.14 ... 0.75 mm2 / AWG 26 ... AWG 20 with wire end ferrule PG7 cable gland |
| Cable: Sheath diameter | 4 ... 6 mm |
| Cable: Core cross section | 0.75 mm2 / 20 AWG max. |
| Installation | screw terminals 0.2 Nm pressure nut 0.8 ... 1 Nm |
| Mass | 26.3 g |
Material
| Plug connector: Screw connection | Stainless steel 1.4404 / AISI 316L |
| Plug connector: Body | PA, black |
| Plug connector: Seal | NBR |
| Plug connector: Contact surface | gold plated (Au) |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

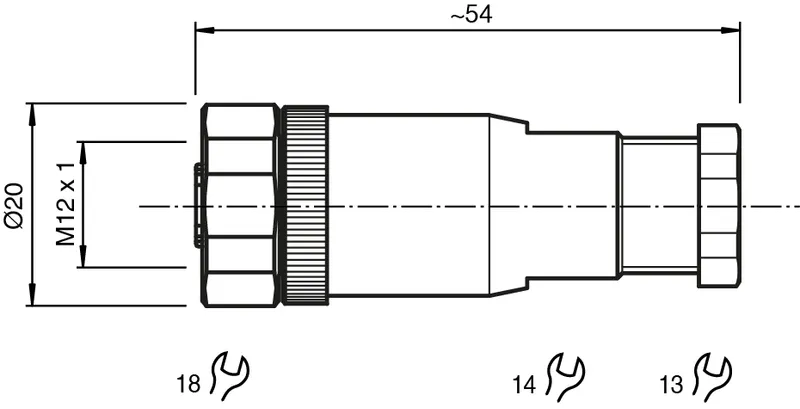

CAD & dimension drawings
